18
4. Technical data
Power supply
Electric supply
Mains supply voltage: 400 V, 3–phase, 50/60 Hz
Fuse rating: At least 16 amps, 32 amps recommended.
Generator: Use only generators with an output of at least 40 kVA.
The generator must be earthed when in operation.
Water supply for drive and wire cooling
Cooling water: min. 5 l/min at max. 6 bar
Compressed air for the drive (compressor)
Min. 6 bar and 100 l/min. for the drive pneumatic advance
4.1

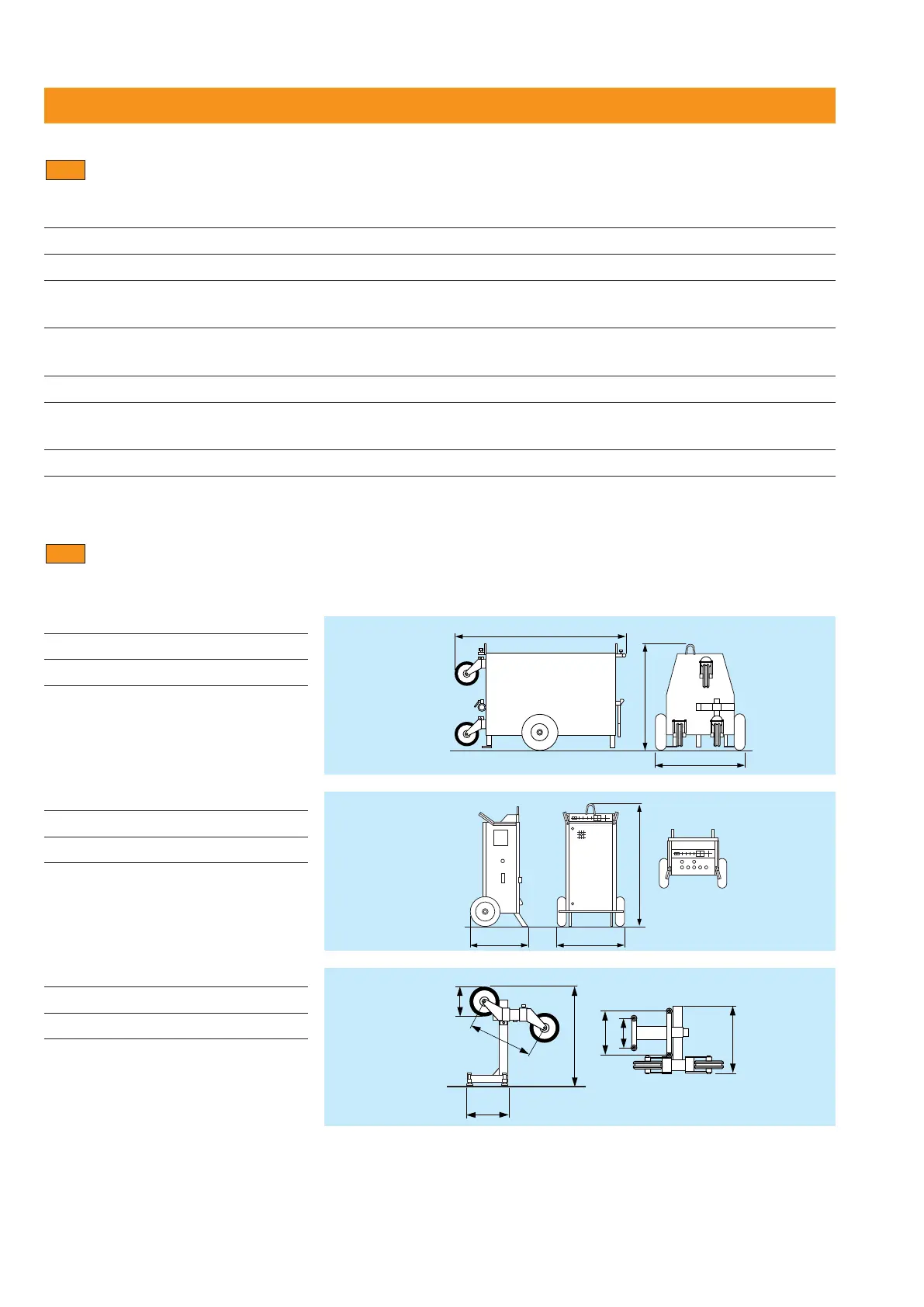

Dimensions and weights
Drive
Dimensions 1560×790×920 mm
Weight approx. 266 kg
4.2
Control unit
Dimensions 520×590×1080 mm
Weight approx. 68 kg
Single-pair pulley stand
Dimensions 460×240×560 mm
Weight approx. 23 kg
Compressor
The compressor supplied by Hilti with the equipment or any other compressor that complies with the specified
technical data may be used.
