8. Care and maintenance

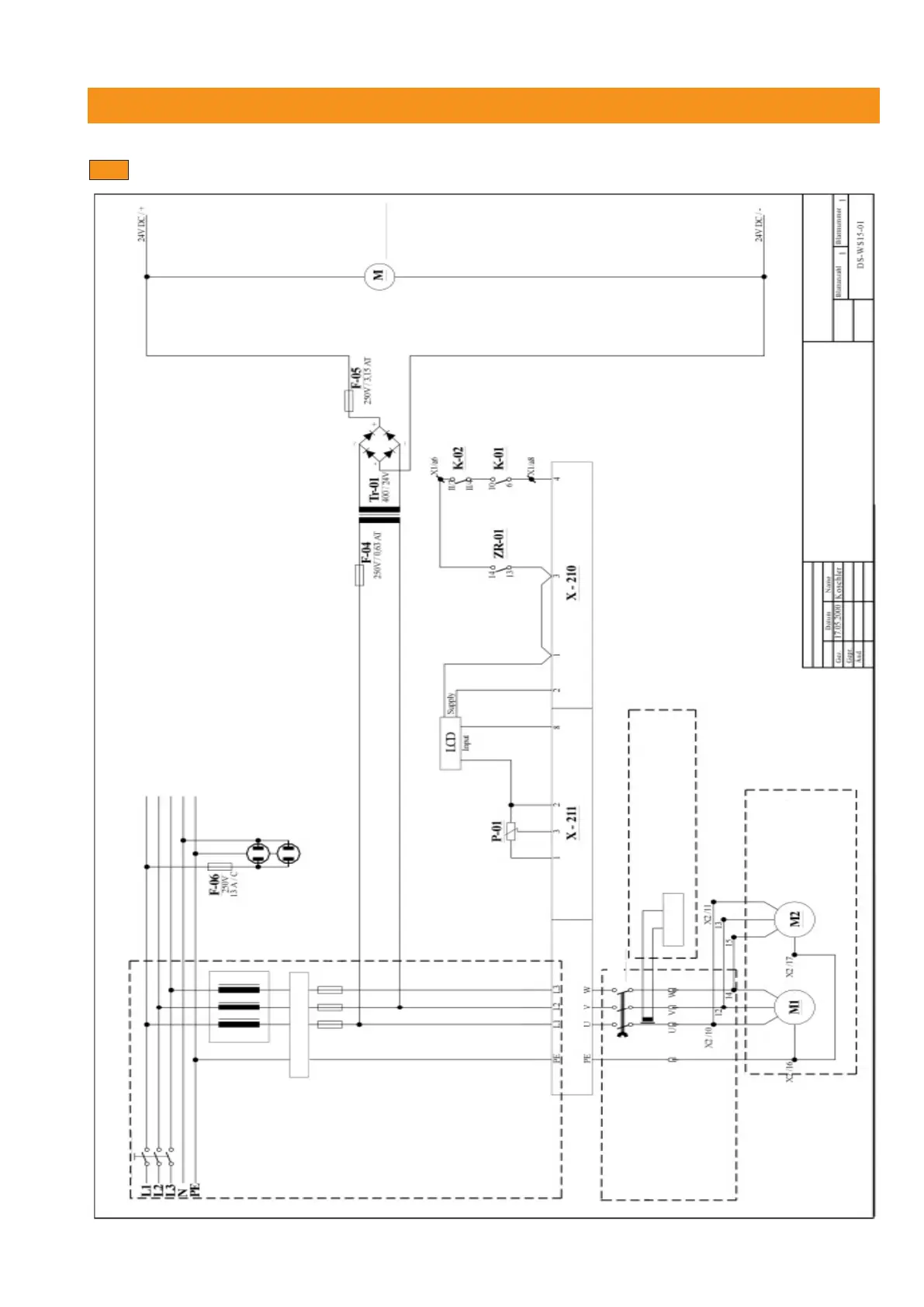

Electrical circuit diagram – drive unit
8.6
Main power switch
Supply line 10 mm
2
Radio interference suppression
Main fuses / F01 – F03 250 V, 35 A / gL
Line inductor
max. 800 watts max. 899 watts
Cooling fan motor
DS WS15 Frequency converter 400 034 Main power circuit
Motor cable 6 mm
2
Ammeter
MS-01 Motor relay
Ammeter terminals 2.5 mm
2
Motor connecting leads, each 2.5 mm
2
