37

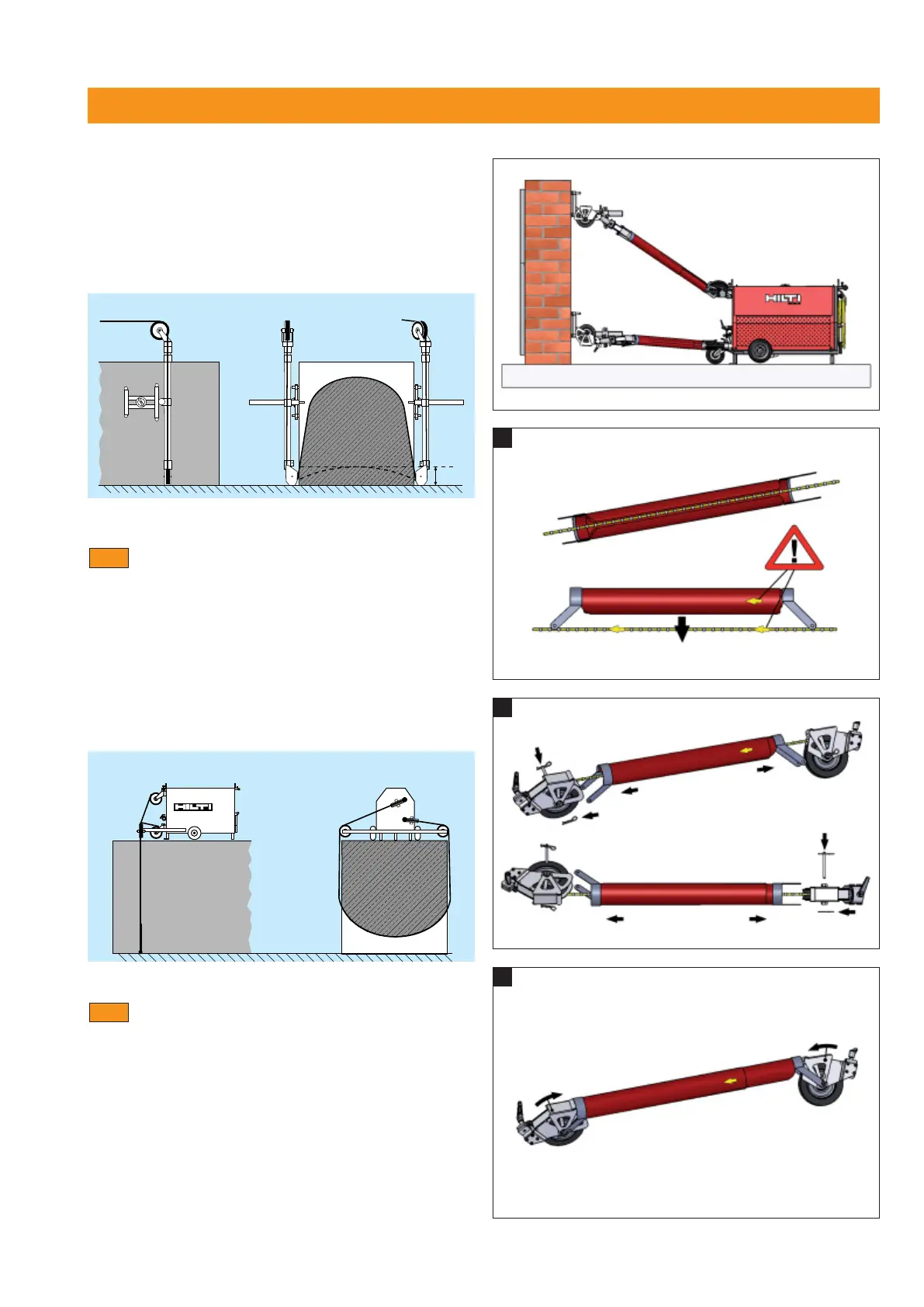

6. Preparing the saw system for use
■ In so-called "external plunge” applications, the plunge
pulleys are mounted on the outside of the object being
cut. Cross-type tube clamps are used to mount the plunge
pulleys on single-pair pulley stands. The time-consum-
ing job of drilling through the object to be cut is thus no
longer necessary.
Using the DS-WSVC vertical cutting device
■ No pulley stands are required for this type of cut.
■ The drive unit is positioned directly on the object to
be cut.
■ Care must be taken to ensure that the drive unit and
the guides for the wire to the object being cut are at right
angles to each other. This can be adjusted by means of
the height adjustment mechanism at the rear.
6.9.8
Assembly instructions DSW-WG wire guard
■ The hazardous area may be entered only when the
EMERGENCY STOP button is in the pressed-in posi-
tion.
■ Use the protective cover to augment the safety on
your jobsite. NEVER enter the danger area while saw-
ing is in progress.
■ Mount the wire guard according to the assembly
instructions below. It can be mounted after complete
set up of the wire saw.
6.9.9
1
2
3
