20

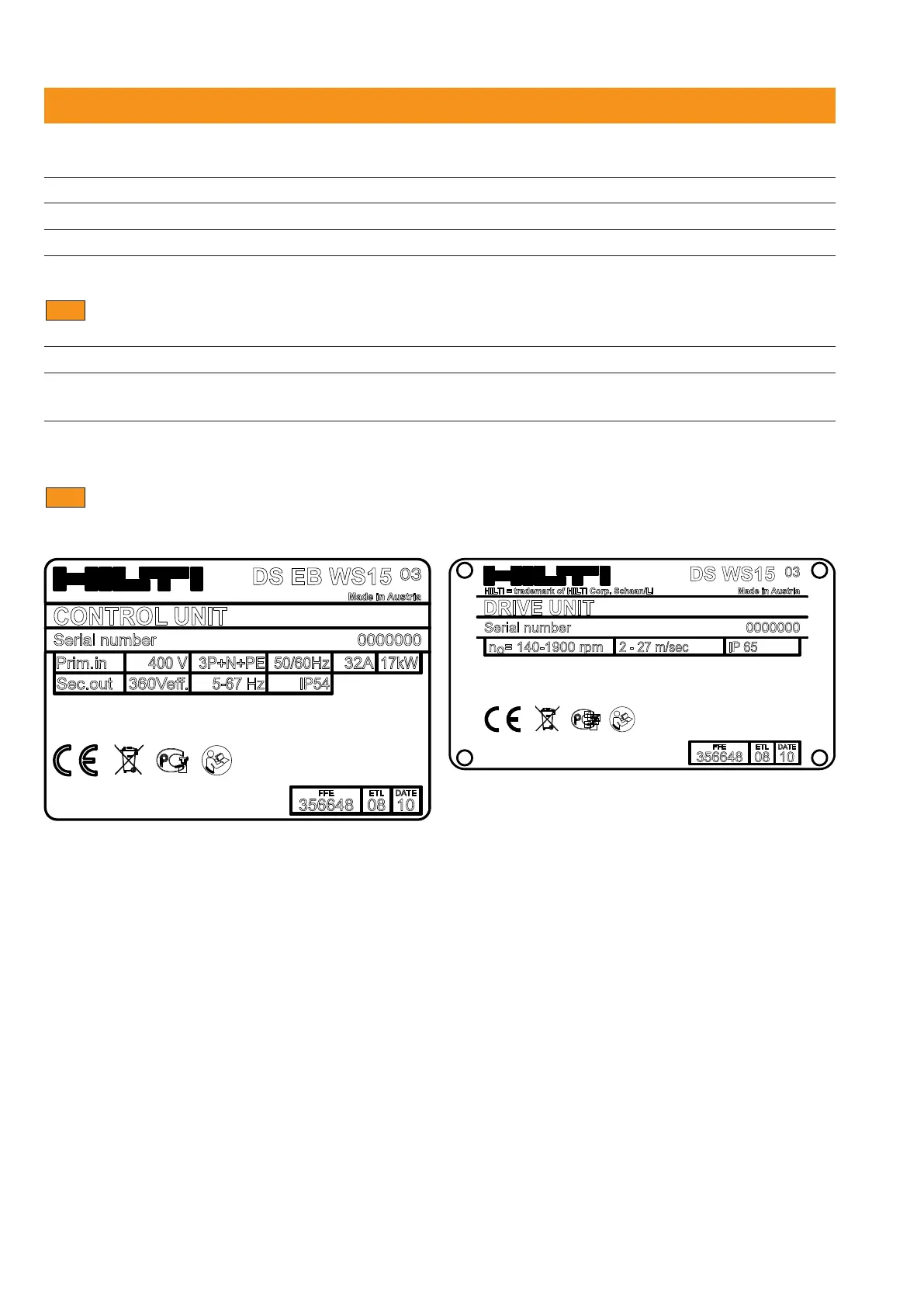

4. T
echnical data
Compressor
Compressed air
Min. 6 bar
Air volume
Min. 100 l/min
Supply connection
230 V
Noise values
Equipment:
DS
WS
15 electric wire saw
Sound pressure level as per
DIN EN ISO 3744 *
< 79 dB(A)
* Measured at a distance of 2.8 m from the drive unit
Rating plates for drive unit and control unit
4.6
4.7
19
21
Table of Contents
Original Operating Instructions
2
Table of Contents
2
General Information
3
Description
5
Description
6
Areas of Application
6
DS WS15 Basic System Units
6
Operating Controls
6
Drive Principle
11
Saw Advance and Wire Storage
11
Wire Guidance
12
Safety Concept for the Working Area
12
Tools and Accessories
13
4. Technical Data
17
Technical Data
17
Dimensions and Weights
18
Power Supply
18
Technical Data
18
Climatic Conditions for Operation and Storage
19
Insulation Class
19
Technical Data
19
Noise Values
20
Rating Plates
20
5. Safety Precautions
21
Safety Precautions
21
Preparations
22
Safety Measures at the Working Area
22
Safety Precautions
22
Securing the Objects Being Cut and Disposal of Sawing Slurry
22
Use of the Equipment as Directed, Operating Safety
23
Electrical Safety
24
Safety Precautions During Transport
24
General Safety Information
25
6. Preparing the Saw System for Use
27
Preparing the Saw System for Use
27
Drilling through Holes for the Wire
28
Positioning the Wire Guide Pulleys
28
Preparing the Saw System for Use 6.1 Planning the Wire Guidance System
28
Setting up the Electric Supply
28
Wire Pressure
28
Transporting the Wire Saw
29
Connecting the Electric Power, Water and Compressed Air
30
Securing the Wire Guides and Saw Drive Unit
30
Rigging and Tensioning the Wire
31
Basic Applications
34
Setting up the Wire Cooling System
34
Standard Vertical Cut
34
Vertical Cut with Release Pulley
34
Distance between the Drive and Object Being Cut
35
Optimum Length of Cut
35
Standard Horizontal Cut
35
Flush Horizontal Cut
36
Using Plunge Pulleys
36
Using the Vertical Cutting Device
37
Wire Guard Assembly Instructions
37
Operating the Equipment
39
8. Care and Maintenance
43
Care and Maintenance
43
Care and Maintenance
44
Cleaning the Wire Saw
44
Service and Repair
45
Wearing Parts
45
Electrical Circuit Diagram - Control Unit
46
Electrical Circuit Diagram - Drive Unit
47
Pneumatic Circuit Diagram - Drive Unit
48
Troubleshooting
49
Disposal
56
Manufacturer's Warranty - Tools
57
EU Declaration of Conformity (Original)
58
