6. Preparing the saw system for use
Pivoting pulley
with ball bearing
at pivot point
Pivoting pulley
with ball bear-
ing at pivot
point
Diamond wire
Clamping
screw
Ball bearing
Pivoting
pulley
Cutting
plane
Friction bearing
Can be locked by
tightening screw
Clamping screw
Release screw for
flush cutting

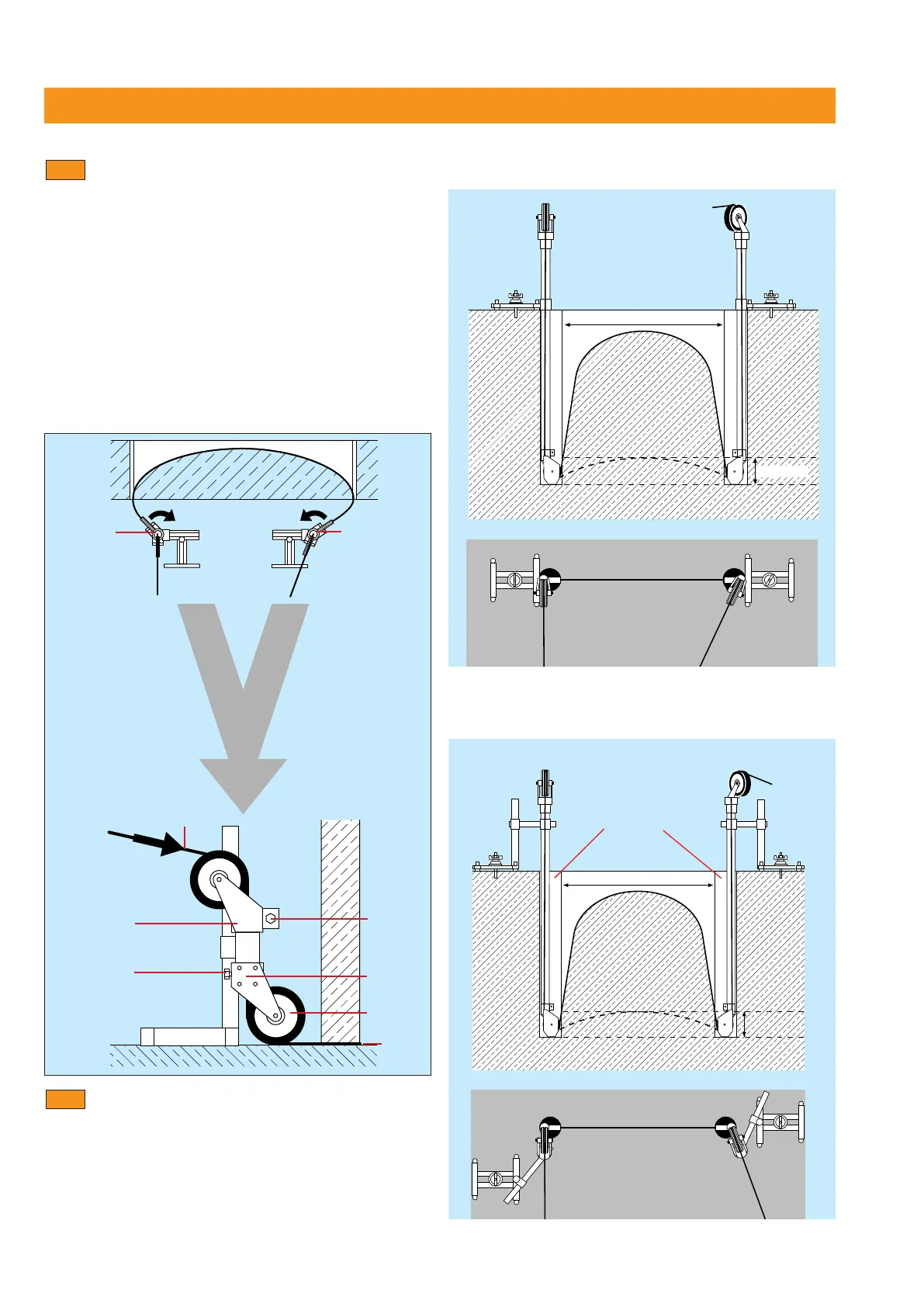

Using plunge pulleys
■ A plunge cutting application in a solid material is
described.
■ For a cut of 2–3 m in length, the plunge pulleys must
be set approximately 20 to 30 cm deeper because the
end of the cut always takes the form of an arc.
6.9.7
■ Guide pulley tube attached directly to the baseplate
■ Guide pulley tube attached to the distance piece
20–30 cm
∅ 162 mm
Flush horizontal cut
■ The pulley stand should be mounted so that the piv-
oting guide pulley (on bearings), with the clamping screw
at the rear, is almost in contact with the surface along
which the flush cut is to be made. There should be a
maximum of about 1 cm play between the flush surface
and the guide pulley.
■ The pivoting guide pulleys should be positioned fac-
ing outwards at the beginning of the cut and should be
free to pivot.
■ At the end of the cut, the pulleys will have pivoted to
face inwards as they follow the course of the wire.
