53

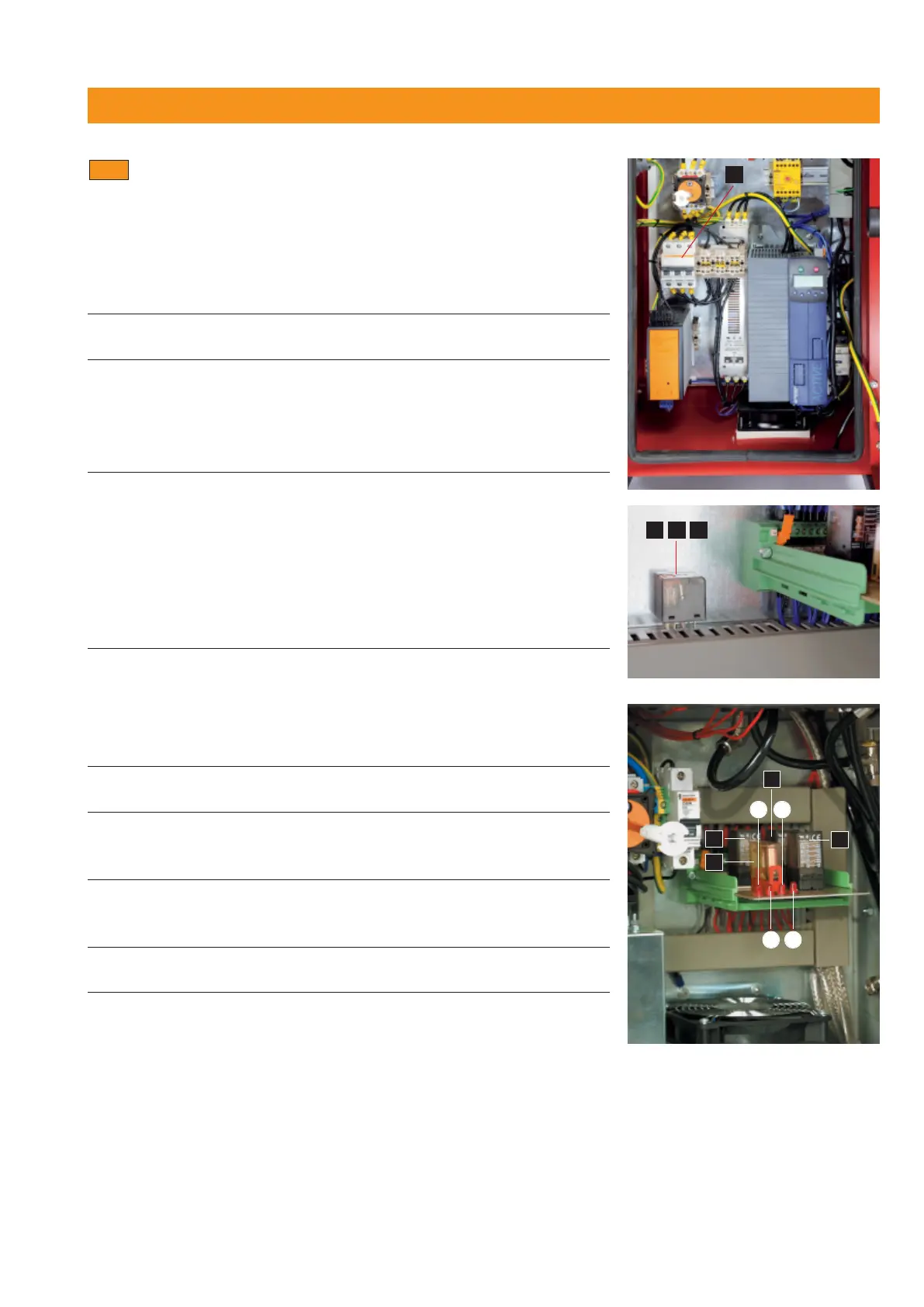

9. Troubleshooting
Remedying DS WS 15 wire saw system malfunctions
The DS WS 15 doesn't start.
The main switch is in the ON position but the green “ready for
operation” lamp doesn't light.
Possible cause Solution / measures
No power supplied by the cable. Check the mains fuse at the
switchbox (35–40 A)
Voltage of one phase is too low or Check the 3 phases individually.
missing completely. Check the extension cable and
plugs / sockets for faults or loose
contacts.
Call in the jobsite electrician.
Fuse blown or circuit breaker tripped Replace blown fuses or reset
at the switchbox. the circuit breaker.
– Mains fuse
Transformer fuse 3.15 A, slow
Transformer fuse 0.63 A, slow
1 relay unit for , ,
Spare fuses are provided in the
control unit.    
9.2
Fault with one of the following symptoms
Possible cause Solution / measures
Red lamp on left doesn’t light, – Swap or replace relay .
converter/drive motors not running.
Red lamp at middle left doesn’t – Call in an electrical specialist,
light, problem with thermal circuit relay
breaker, wire guard.
Red lamp at middle right doesn’t – Swap or replace relay .
light, pneumatic advance at end
stop
Red lamp on the right lights, – Swap or replace relay .
water valve
The same type of relay , , is used for , and , i. e. they can be
swapped with each other.
6
5
1 3
2 4
4
7
1
2 3 4
