X-AI 32 02 3 Product Description
HI 801 055 E Rev. 4.00 Page 13 of 60
3.4.2 Indicators

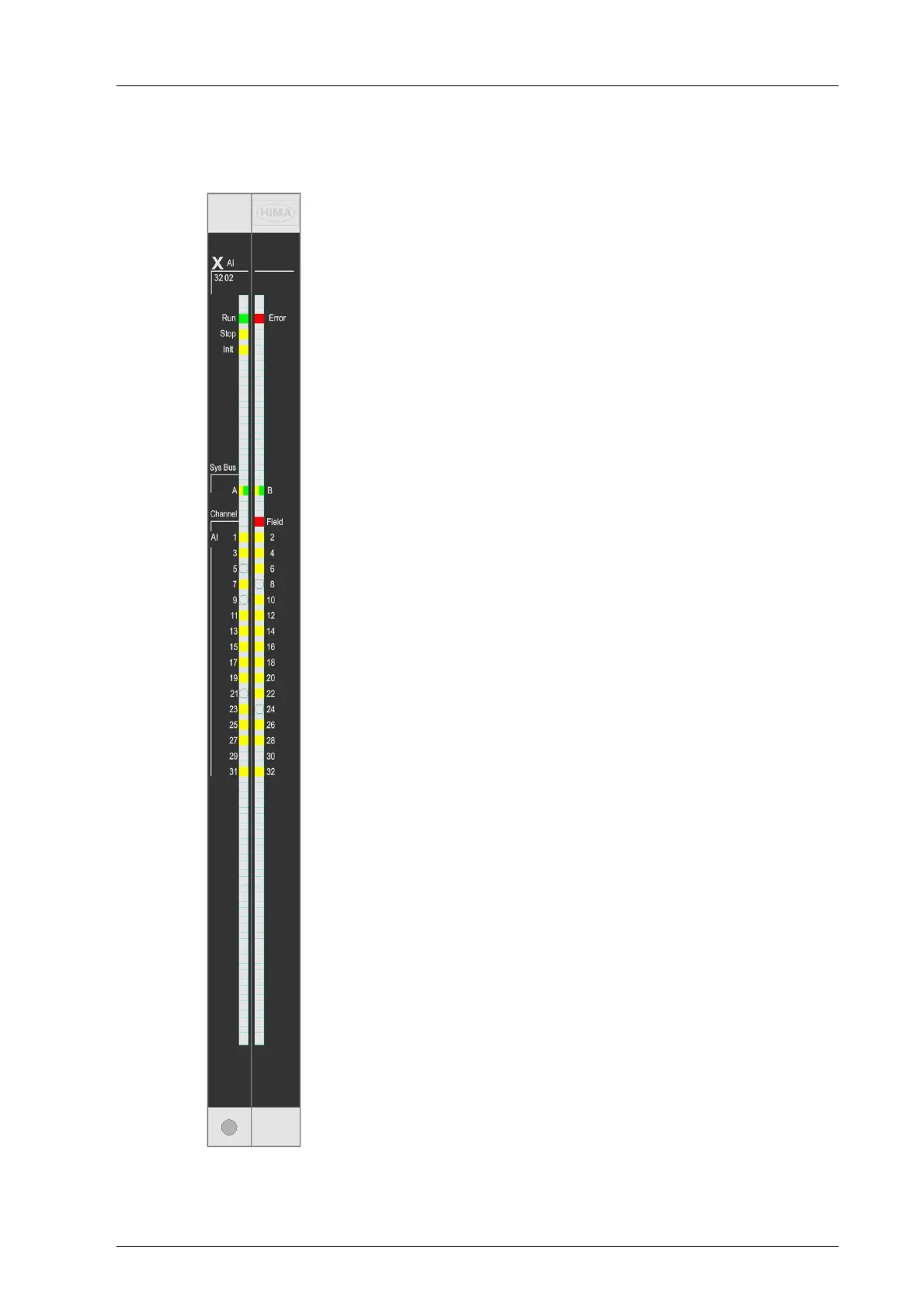

The following figure shows the LED indicators for the module.
Figure 3: Indicators
