33
―――――――――――――――――――――――――――
Chapter 2 Measurement Procedure
――――――――――――――――――――――――

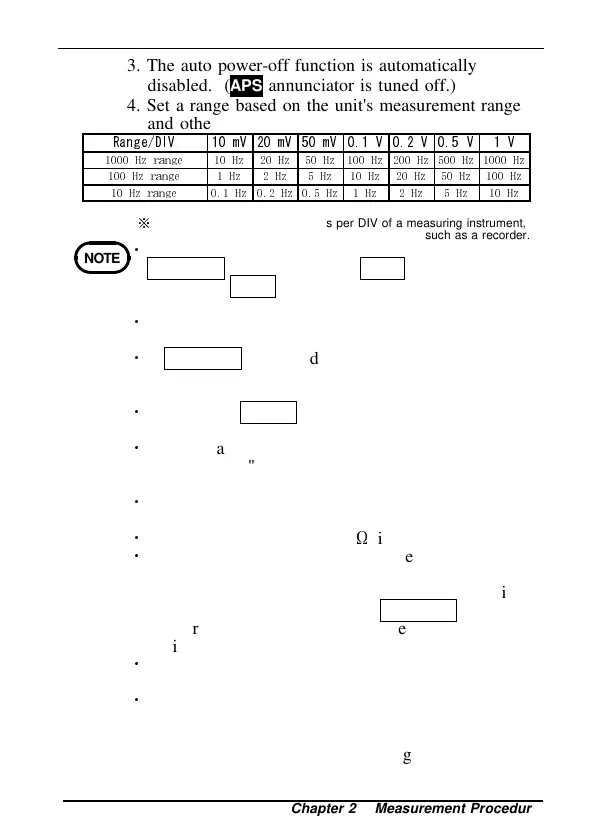

Range/DIV 10 mV 20 mV 50 mV 0.1 V 0.2 V 0.5 V 1V
1000 Hz range 10 Hz 20 Hz 50 Hz 100 Hz 200 Hz 500 Hz 1000 Hz
100 Hz range 1Hz 2Hz 5Hz 10 Hz 20 Hz 50 Hz 100 Hz
10 Hz range 0.1 Hz 0.2 Hz 0.5 Hz 1Hz 2Hz 5Hz 10 Hz
※
The figures are frequency values per DIV of a measuring instrument,
such as a recorder.
NOTE
3. The auto power-off function is automatically
disabled. (
APS
annunciator is tuned off.)
4. Set a range based on the unit's measurement range
and other instruments, such as recorders.
･
Before using the output function, be sure to press
OUTPUT
, confirming that
REC
annunciator is
on. When
REC
annunciator is off, the output is
for current measured values.
･
No auto-zero-adjustment is available in AC +DC A
mode.
･
If
OUTPUT
is pressed in the auto range (AUTO),
the frequency range is set as the key is pressed.
(AUTO annunciator is turned off.)
･
If you press
HOLD
, the frequency output is also
held.
･
The display "----" corresponds to 0 V output and the
display "O.L." corresponds to 1.36 V output
respectively.
･
To connect a recorder, use the optional 9094
OUTPUT CORD.
･
For recorders, use over 1 M
Ω
input impedance.
･
Current measurements will continue to be recorded
when you shift to the frequency measurement mode
during current measurement recording. To obtain
frequency measurements, press
OUTPUT
to disable
the current measurement mode, then make the new
settings.
･
For a long term measurement, use the optional
9445-02 or 9445-03 AC ADAPTER.
･
When the AC adapter is used and there is a large
amount of noise in the power line, the display may
show several counts or noise may be present in the
output. In such a case, connect the ground terminal of
the level recorder or the L side of the input to ground.
