48
―――――――――――――――――――――――――――
Chapter 3 Specifications
―――――――――――――――――――――――
Range
(Accuracy Range)
Resolution
DC
30V(±3.00~±30.00V) 0.01V ±1.0%rdg.±3dgt.
300V(±30.0~±300.0V) 0.1V ±1.0%rdg.±3dgt.
600V(±60~±600V) 1V ±1.0%rdg.±3dgt.
Range
(Accuracy Range)
Resolution
45~66Hz 10~45,66~1kHz
30V(3.0030.00V) 0.01V ±1.0%rdg.±3dgt. ±1.5%rdg.±5dgt.
300V(30.0~300.0V) 0.1V ±1.0%rdg.±3dgt. ±1.5%rdg.±5dgt.
600V(60~600V) 1V ±1.0%rdg.±3dgt. ±1.5%rdg.±5dgt.
Range
(Accuracy Range)
Resolution
DC,45~66Hz 10~45,66~1kHz
30V(3.0030.00V) 0.01V ±1.0%rdg.±13dgt. ±1.5%rdg.±13dgt.
300V(30.0~300.0V) 0.1V ±1.0%rdg.±7dgt. ±1.5%rdg.±7dgt.
600V(60~600V) 1V ±1.0%rdg.±7dgt. ±1.5%rdg.±7dgt.
Range
(Accuracy Range)
Resolution
DC
30V(3.075.0V) 0.1V ±1.0%rdg.±7dgt.
300V(30~750V) 1V ±1.0%rdg.±7dgt.
600V(601000V) 1V ±1.0%rdg.±7dgt.
Range
(Accuracy Range)
Resolution
45~66Hz 10~45,66~1kHz
30V(3.075.0V) 0.1V ±1.0%rdg.±7dgt. ±1.5%rdg.±7dgt.
300V(30~750V) 1V ±1.0%rdg.±7dgt. ±1.5%rdg.±7dgt.
600V(601000V) 1V ±1.0%rdg.±7dgt. ±1.5%rdg.±7dgt.

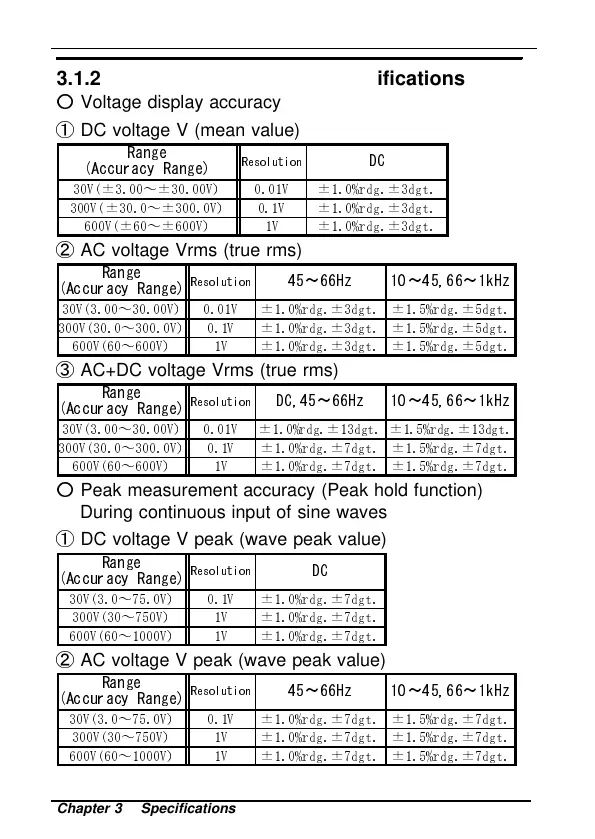

3.1.2 Volta
g
e Measurement S
p
ecifications
Voltage display accuracy
DC voltage V (mean value)
AC voltage Vrms (true rms)
AC+DC voltage Vrms (true rms)
Peak measurement accuracy (Peak hold function)
During continuous input of sine waves
DC voltage V peak (wave peak value)
AC voltage V peak (wave peak value)
