Chapter 3 Specifications
――――――――――――――――――――――――
Range
(Accuracy Range)
REC
10Hz(1.00～10.00Hz)
DC1V/f.s. ±1.3%rdg.±3mV
100Hz(10.0～100.0Hz)
DC1V/f.s. ±1.3%rdg.±3mV
1000Hz(100～1000Hz)
DC1V/f.s. ±2.0%rdg.±3mV
Output response: 4 seconds or less at 1000Hz and 100Hz
ran
g
es, 6 seconds or less at 10Hz ran
g
e
Current Specifications
Maximum permissible
current
200 Arms continuous, 300 Amax.
See Fig.4
Effect of conductor
position
within 0.5% (in any direction from
sensor center)
External magnetic
field interference
AC 400 A/m (external magnetic fields)
corresponds to 0.5 A or less (display)
Maximum rated
voltage to earth
max. 600 Vrms
F

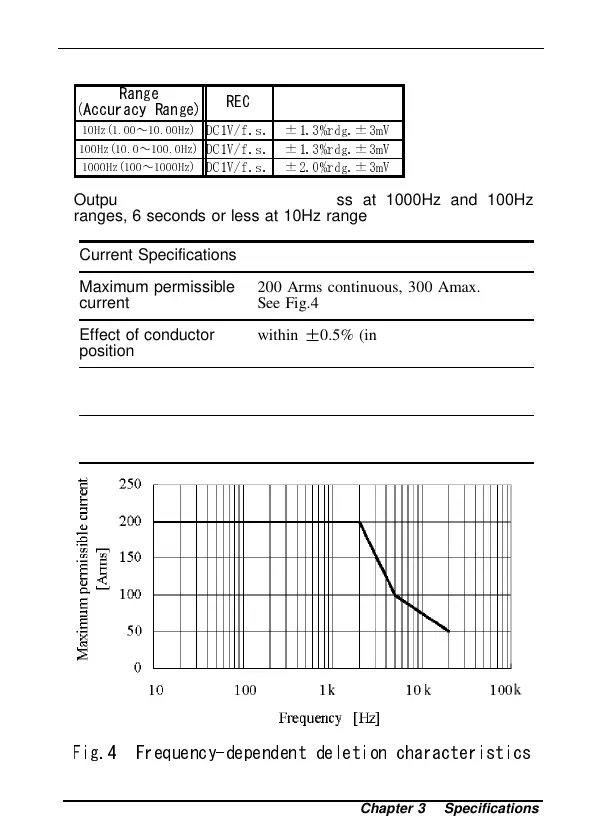

ig.4 Frequency-dependent deletion characteristics
Output accuracy
