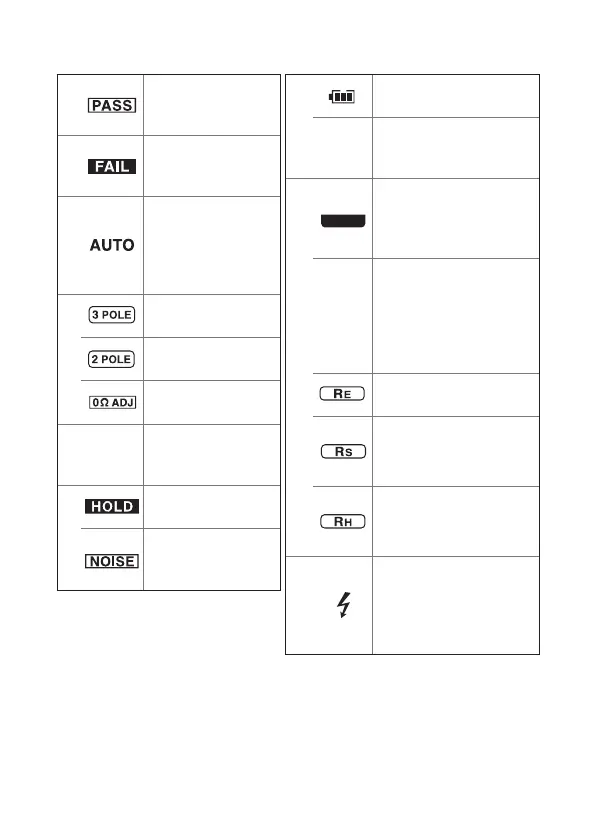

Parts Names and Functions
1
Comparator
comparison result
(PASS)
2
Comparator
comparison result
(FAIL)
3
Lights up when DC/
AC auto-detect
setting is enabled
for measuring earth
potential.
4
Three-pole method
(p. 33)
Two-pole method
(p. 44)
Zero adjustment
(p. 35, p. 46)
5
COMP
Displays when
comparator setting
is enabled. (p. 31)
6
Retention of the
measured value
Displays when earth
potential exceeds
allowable range.
7
Displays the battery
level. (p. 27)
APS
Displayed 30 sec. before
auto-power-save function
is activated. (p. 56)
8
Indicates the terminal
to be connected with
measurement cable or
test lead.
OPEN
Turns on when the
resistance of each
(auxiliary) earthing
electrode is high or a
measurement cable is not
connected.
Earth resistance of
earthing electrode
Earth resistance of
auxiliary earthing
electrode S
Earth resistance of
auxiliary earthing
electrode H
9
Live wire warning
indicator
(Blinks during
earth resistance
measurements)
See p. 73 for error display.
