35
Precise Measurement for Earth Resistance
(Precise Measurement Method, Three-pole Method)

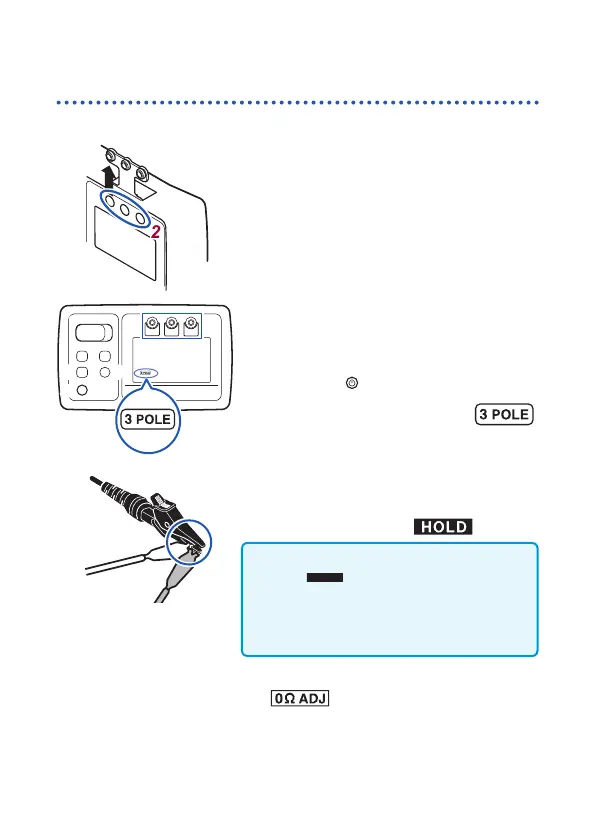

Performing zero adjustment
Always perform zero adjustment prior to measurement.
1
2
5
6
7
3
8
4
1
Remove the cover that protects the
measurement terminals.
2
Make sure that no sand, gravels
or small stones remain inside the
measurement terminals.
3
Connect black, yellow and red
measurement cables respectively to E,
S(P) and H(C) terminals of the device.
4
Short-circuit the tips of the three
measurement cables.
5
Press the button to turn it on.
6
Press Fn button to display
(three-pole method).
Earth potential appears on the display.
7
Press MEASURE button.
A measured value of approx. 0
Ω
appears in
approx. 8 seconds, and
lights up.
When OPEN appears below the measurement
terminal (
), the measurement cable may
not have been connected to a measurement
terminal, or the cable may have an open
circuit.
Check the connection and perform
cable check with a tester etc.
8
Press 0
Ω
ADJ button.
lights up and then zero
adjustment is completed.
To Next Page
