Configuring the ports
4
Basic - L3P
Release
4.0
11/07
In the "Port on" column, you can enable/disable PoE at this port.
The "Status" column indicates the PoE status of the port.
In the "Priority" column (MACH 4000), set the PoE priority of the port
to "low", "high" or "critical".
The "Class" column shows the class of the connected device:
Class Maximum power delivered
0 15.4 W = state on delivery
14.0 W
27.0 W
3 15.4 W
4 Reserved, treat as class 0
The "Name" column indicates the name of the port, see
Basics:Port configuration.

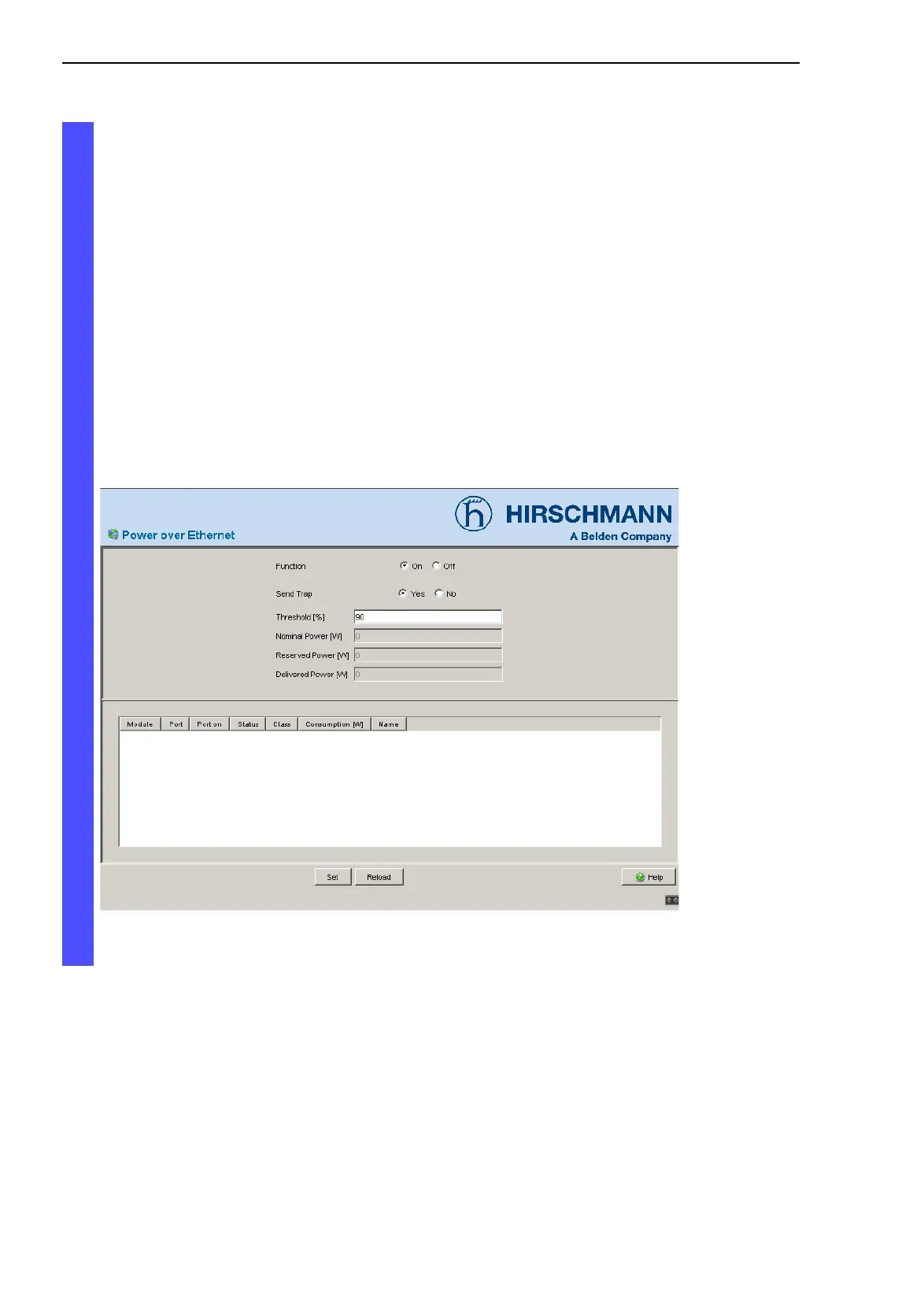

Figure 20: Power over Ethernet dialog
