10.COMPONENT TESTING INFORMATION
38
CAUTION：When Resistance (Ohm) checki
ng the Component, be sure to turn
the power off, and do voltage discharge sufficiently.

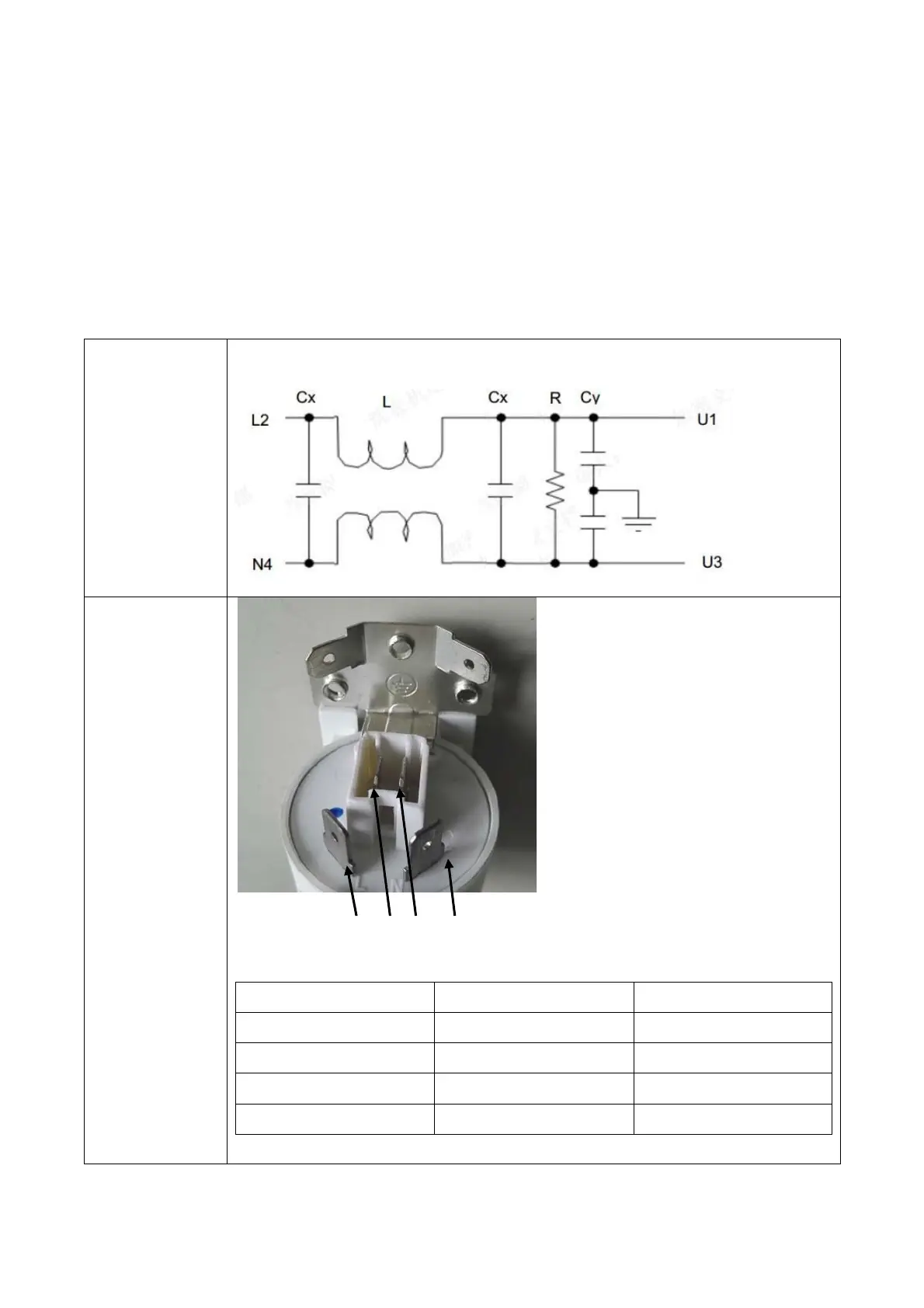

10.1 FILTER
Wiring
diagram
Test points
and result
Test Points Result Remarks
L2-U1 0
L2-U3 680K
N4-U1 680K
N4-U3 0
Circuit in the PCB / Wiring Diagram
L2 U1 U3 N4
To Next Page
