11.DISASSEMBLY INSTRUCTIONS
49
11.6 PUMP
11.7 HEATER

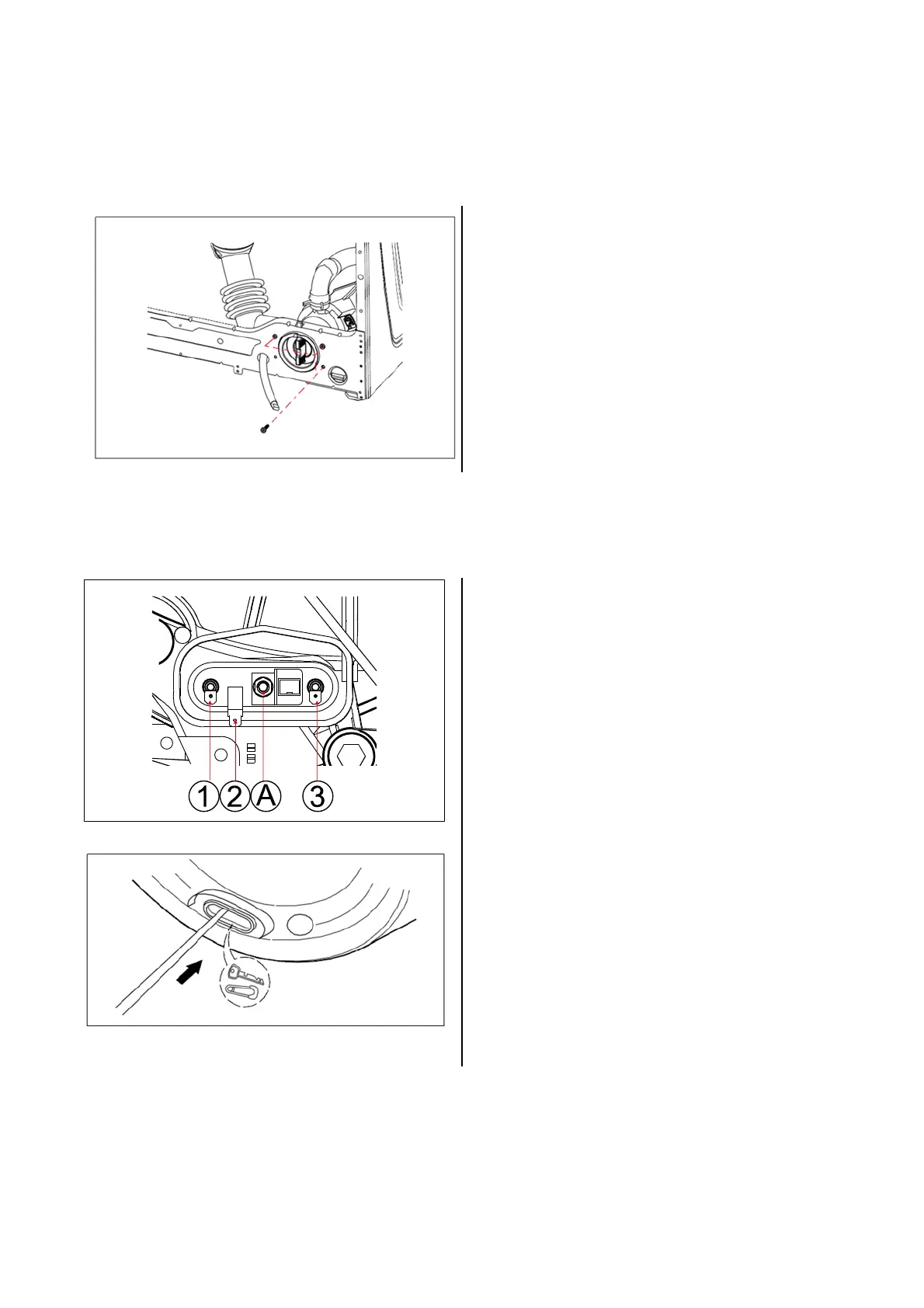

1.Unscrew3 crews as shown
2. Disassemble the hose clamp connect
to the
um
4. When foreign objects (wire, coin, etc.) is
stuck between drum and tub, Remove
foreign objects by inserting a long bar in the
opening.
1. Disassemble the rear panel
2. Disconnect the heater connector from
main harness as ①②③ shown
3. Unscrew 3 crews as “A” shown
To Next Page
