11.DISASSEMBLY INSTRUCTIONS
44
※Be sure to unplug the machine before disassembling and repairing the parts.

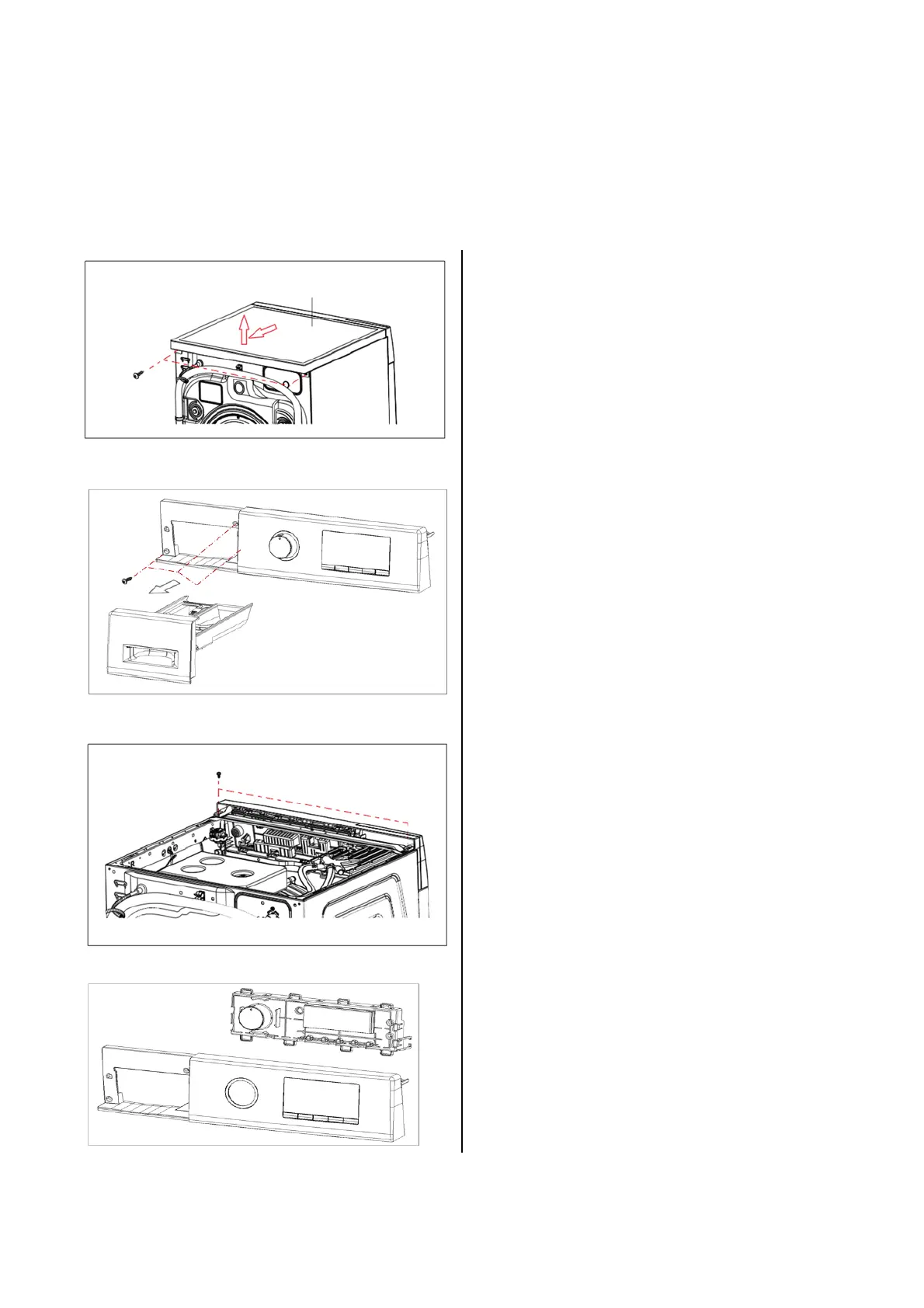

11.1CONTROL PANEL ASM
5. Unscrew 2 screws as shown
6. Lift the side the control panel and pull it
out
1. Unscrew 2 screws on the back of the
top panel
as shown
2. Pull the top plate backward and upward
as shown
3. Pull out the drawer
4.Unscrew3 screws as shown
7. Disconnect the PCB connector from
main harness
8. Disassemble the PCB box
To Next Page
