11.DISASSEMBLY INSTRUCTIONS
45

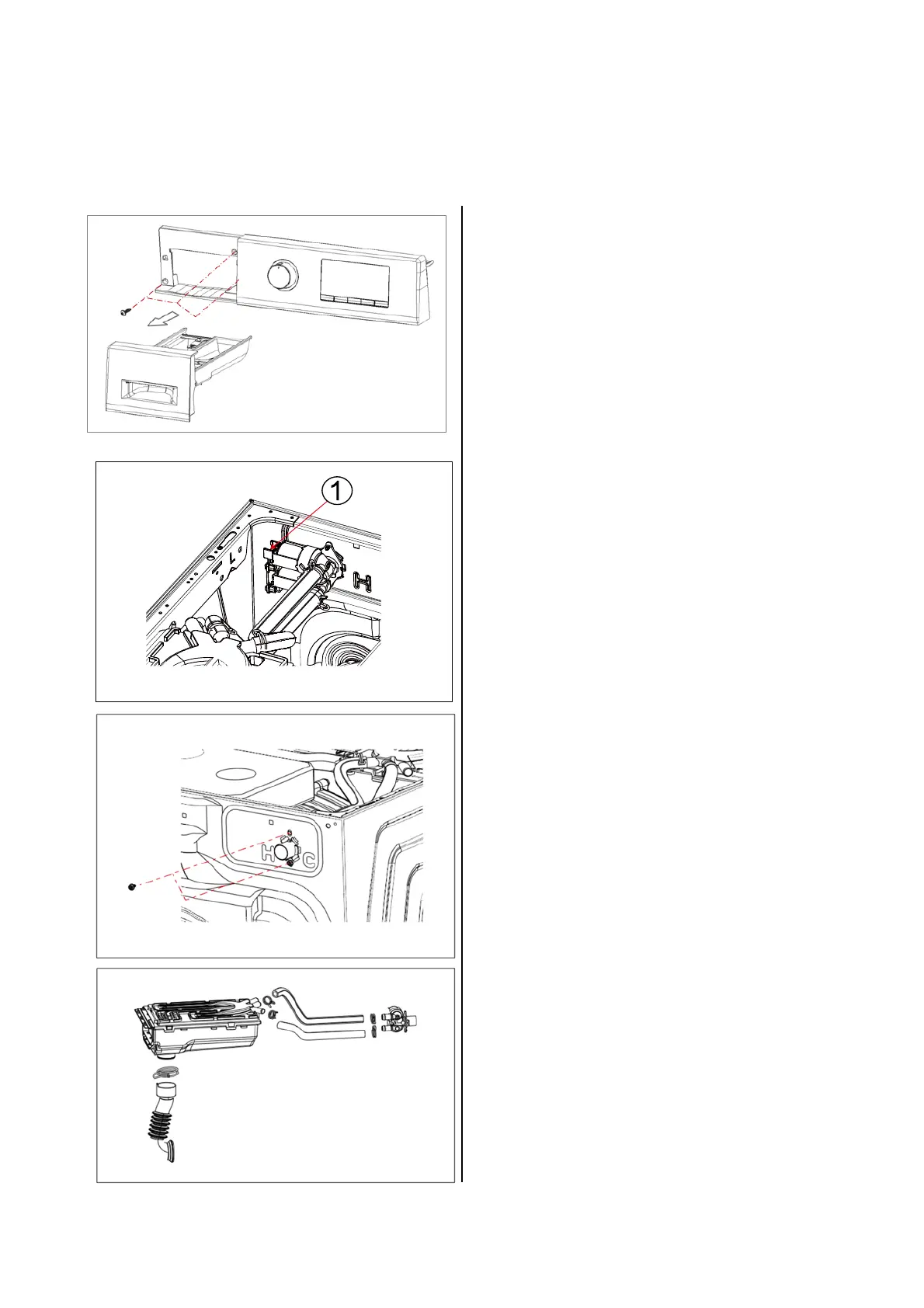

11.2 DISPENSER ASM
5.Unscrew2 screws as shown
6.Disassemblethe hose clamp as
shown
4. Disconnect the double_valve
connector from main harnessas①
shown
1.Disassemblethetop panel
2. Pull out the drawer
3.Unscrew 3 screws as shown
To Next Page
