4-1 Control Functions

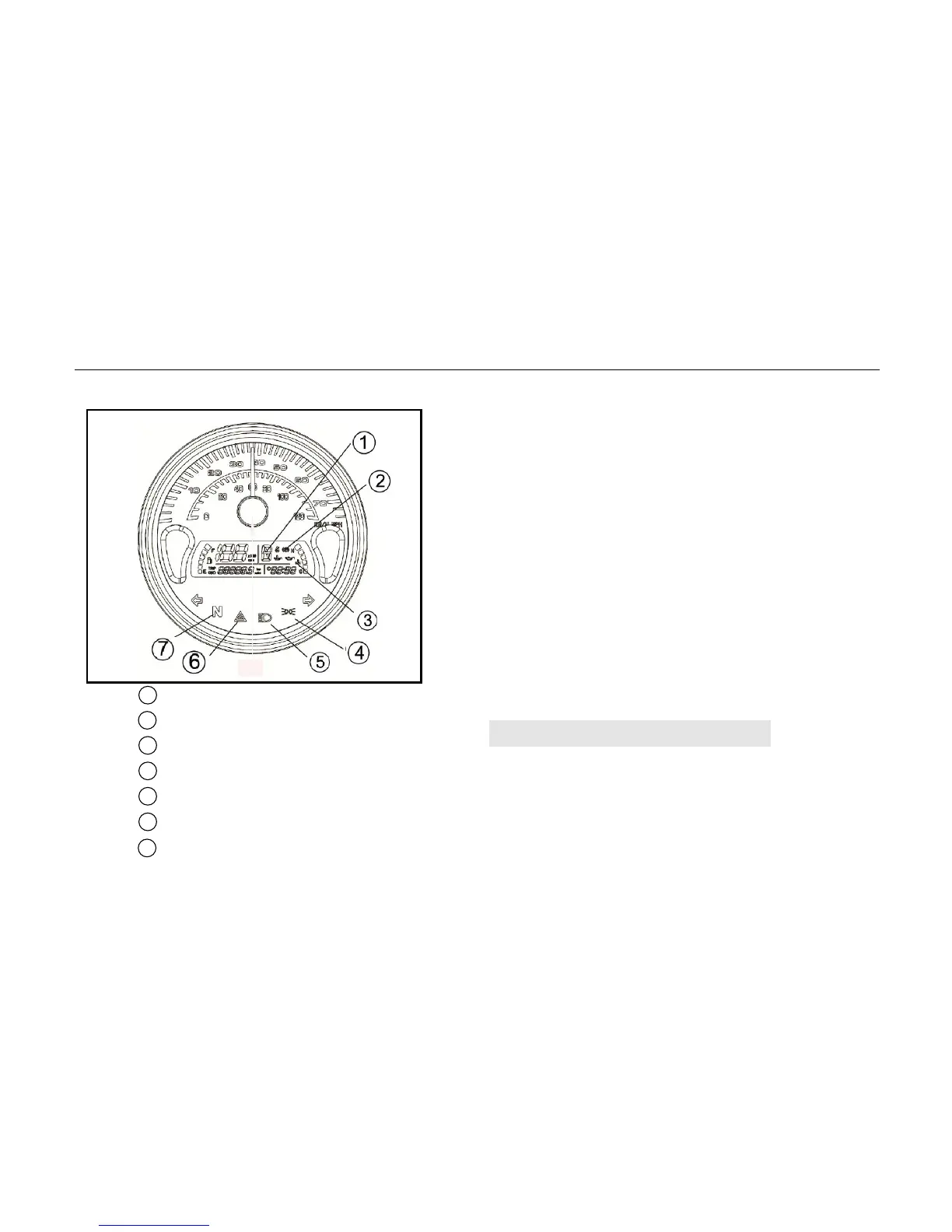

Indicator and warning lights
1 Gear position “F” & “R”
2 Gear position Park “P”
3 Coolant temp warning light
4 Clearance lamp
5 High beam light
6 Hazard light
7 Neutral “N”
Gear position “F” & “R”
Moving the shift lever to gear “F” (forward),
indicator “F” will illuminate; Moving the shift
lever to gear “R” (reverse), indicator “R” will
illuminate.
Park “P”
When placing the ATV in neutral with the Park
brake set, the “P” (park), indicator will
illuminate.
Coolant temp warning light
Ensure the coolant temp warning light is off
before restarting the ATV. Never run the ATV
when the coolant temperature light is on.
Running the engine when the coolant
