OPTIONAL ATTACHMENTS AND DEVICES
13-52

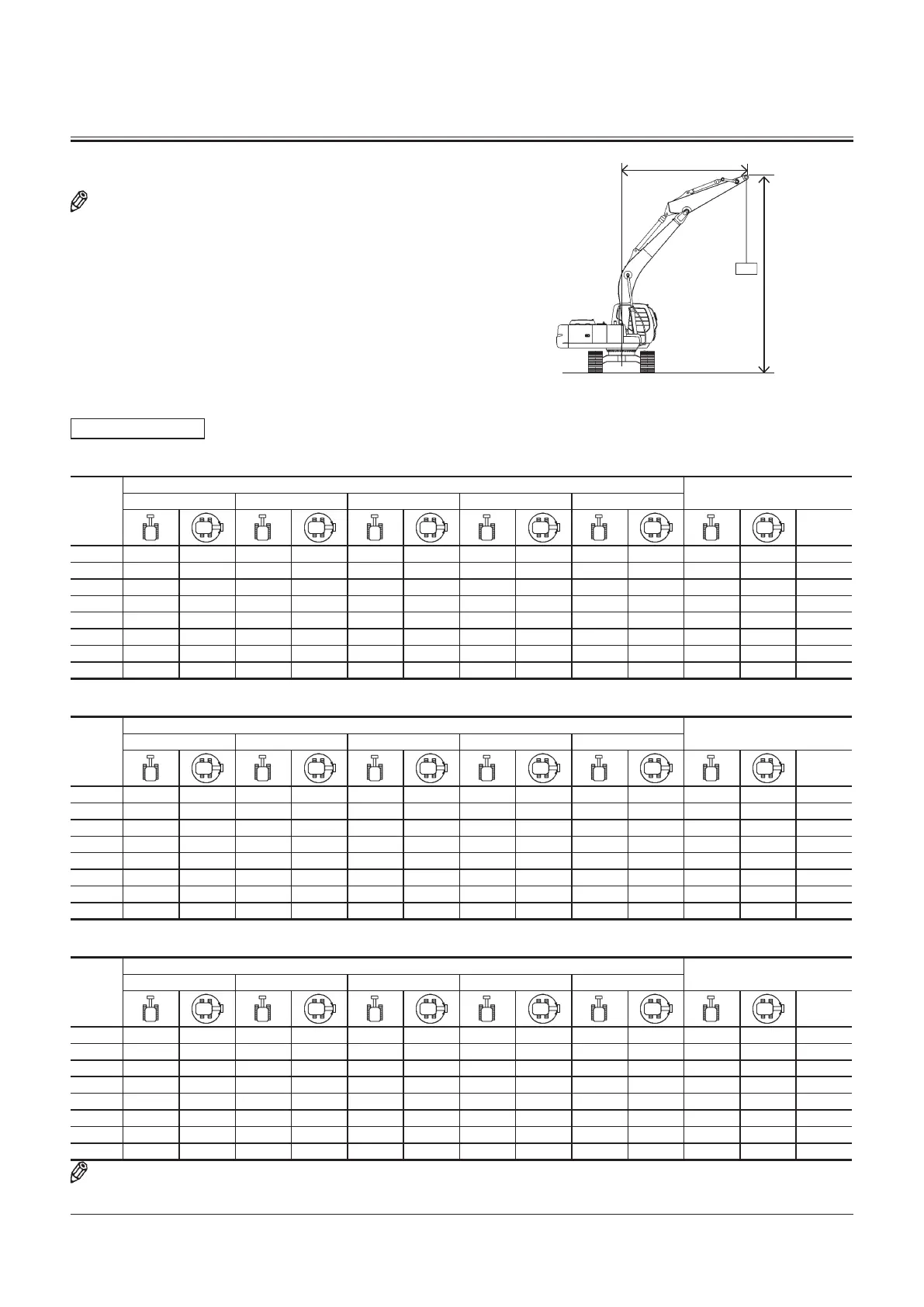

LIFTING CAPACITIES
NOTE: 1. Lifting capacity of the ZX series does not exceed
75% of tipping load with the machine on firm,
level ground or 87 % of full hydraulic capacity. (ISO
10567)
2. * Indicates load limited by hydraulic capacity.
A
C
B
M1G6-13-013
METRIC MEASURE
ZX130-3 Monoblock boom, Arm 2.10 m, G 500 mm Unit; kg
B: Load
Point
Height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m
REACH
m
6.0
4.5 3730* 3500 2790* 2210 5.96
3.0 6340* 6180 4440* 3320 3100 2150 2700 1870 6.54
1.5 4640 3110 3010 2070 2540 1750 6.73
0 5410* 5370 4480 2970 2940 2010 2590 1780 6.57
-1.5 4760* 4760* 8390* 5380 4440 2940 2940 2000 2910 1990 6.04
-3.0 6880* 5510 4520 3010 3880 2620 5.00
-4.5
ZX130-3 Monoblock boom, Arm 2.52 m, G 500 mm Unit; kg Unit; kg
B: Load
Point
Height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m
REACH
m
6.0
4.5 3350* 3350* 3180 2220 2310* 2000 6.37
3.0 5540* 5540 4100* 3360 3110 2160 2300* 1720 6.91
1.5 7960* 5650 4660 3130 3010 2070 2340 1610 7.09
0 6330* 5350 4480 2970 2930 1990 2380 1630 6.94
-1.5 4560* 4560* 8680* 5320 4400 2900 2890 1960 2630 1790 6.44
-3.0 8410* 8410* 7460* 5410 4440 2940 3340 2260 5.48
-4.5
ZX130-3 Monoblock boom, Arm 3.01 m, G 500 mm Unit; kg
B: Load
Point
Height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m
REACH
m
6.0 2140* 2140* 5.97
4.5 2900* 2900* 2950 2250 2000* 1760 6.89
3.0 4570* 4570* 3660* 3410 3130 2170 1990* 1530 7.39
1.5 7250* 5790 4660* 3160 3010 2060 2130 1460 2080* 1440 7.56
0 6970* 5340 4460 2950 2900 1970 2130 1450 7.42
-1.5 4030* 4030* 8710* 5220 4350 2850 2850 1910 2320 1570 6.95
-3.0 7050* 7050* 7960* 5270 4360 2850 2870 1940 2820 1910 6.08
-4.5 5810* 5480 3620* 3000 3510* 2940 4.57
NOTE: When the lifting hook is used, the maximum allowable lifting load is 4 tons.
A: Load radius
B: Load point height
C: Lifting capacity
