Hitachi 120-3 class User Manual

OPTIONAL ATTACHMENTS AND DEVICES
13-53

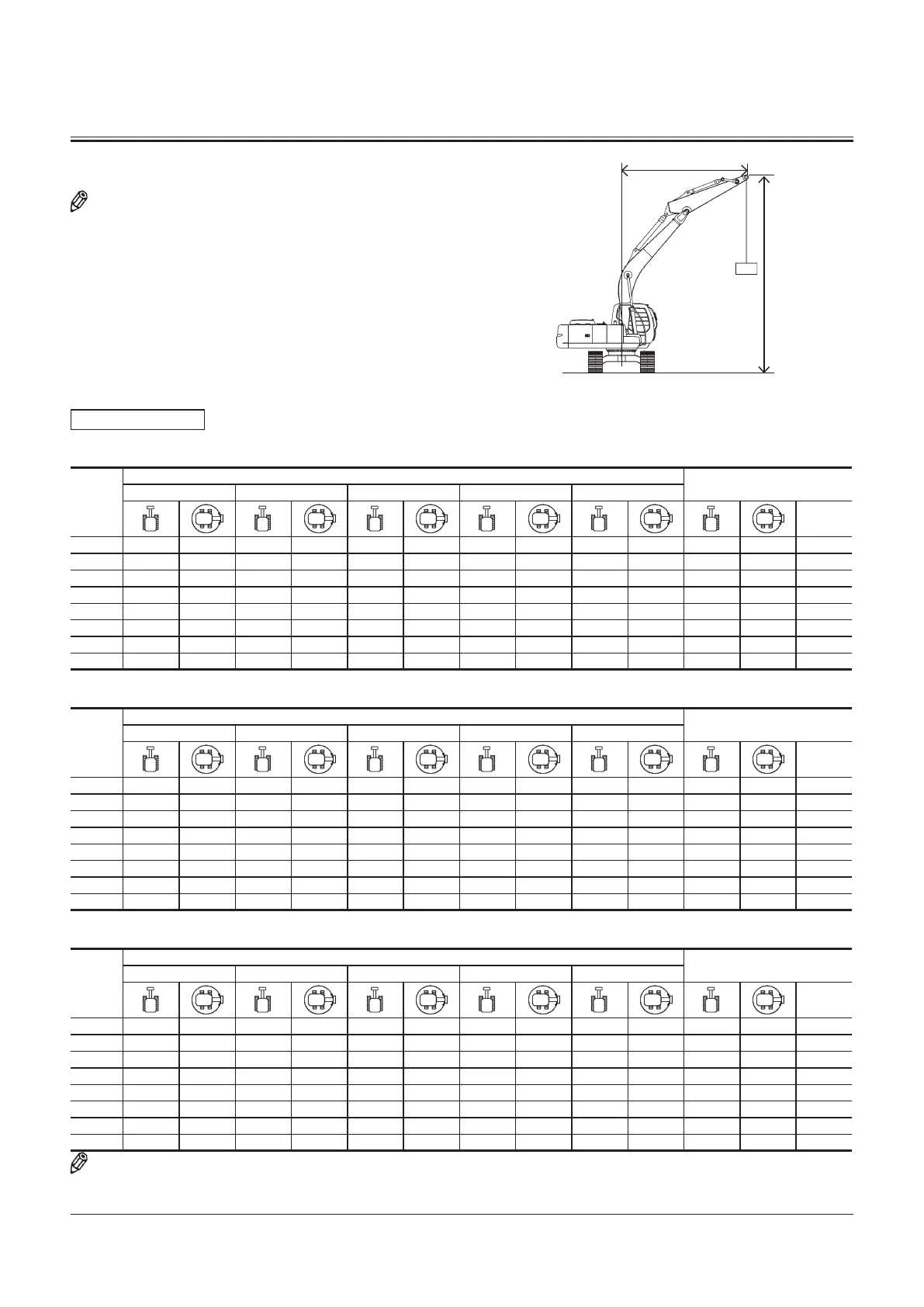

LIFTING CAPACITIES
NOTE: 1. Lifting capacity of the ZX series does not exceed
75% of tipping load with the machine on firm,
level ground or 87 % of full hydraulic capacity. (ISO
10567)
2. * Indicates load limited by hydraulic capacity.
A
C
B
M1G6-13-013
METRIC MEASURE
ZX130-3 Blade (Down), Monoblock boom, Arm 2.10 m, G 500 mm Unit; kg
B: Load
Point
Height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m
REACH
m
6.0
4.5 3730* 3730* 2790* 2430 5.96
3.0 6340* 6340* 4440* 3630 3770* 2370 2750* 2070 6.54
1.5 5300* 3420 4090* 2290 2890* 1940 6.73
0 5410* 5410* 5800* 3280 4280* 2220 3240* 1970 6.57
-1.5 4760* 4760* 8390* 5930 5690* 3250 4010* 2220 3960* 2200 6.04
-3.0 6880* 6060 4680* 3310 3940* 2890 5.00
-4.5
ZX130-3 Blade (Down), Monoblock boom, Arm 2.52 m, G 500 mm Unit; kg Blade (Down), Monoblock boom, Arm 2.52 m, G 500 mm Unit; kg Monoblock boom, Arm 2.52 m, G 500 mm Unit; kg Unit; kg
B: Load
Point
Height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m
REACH
m
6.0
4.5 3350* 3350* 3310* 2440 2310* 2200 6.37
3.0 5540* 5540* 4100* 3670* 3540* 2380 2300* 1900 6.91
1.5 7960* 6200 5040* 3440 3920* 2290 2430* 1790 7.09
0 6330* 5900 5680* 3280 4210* 2210 2710* 1810 6.94
-1.5 4560* 4560* 8680* 5870 5750* 3210 4150* 2180 3290* 1990 6.44
-3.0 8410* 8410* 7460* 5960 5070* 3250 3830* 2500 5.44
-4.5
ZX130-3 Blade (Down), Monoblock boom, Arm 3.01 m, G 500 mm Unit; kg
B: Load
Point
Height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m
REACH
m
6.0 2140* 2140* 5.97
4.5 2900* 2900* 2950* 2470 2000* 1940 6.89
3.0 4570* 4570* 3660* 3660* 3240* 2390 1990* 1700 7.39
1.5 7250* 6330 4660* 3460 3690* 2280 2330* 1620 2080* 1600 7.56
0 6970* 5890 5450* 3260 4060* 2180 2290* 1610 7.42
-1.5 4030* 4030* 8710* 5770 5720* 3160 4170* 2130 2710* 1750 6.95
-3.0 7050* 7050* 7960* 5820 5330* 3160 3660* 2150 3560* 2120 6.08
-4.5 5810* 5810* 3620* 3310 3510* 3240 4.57
NOTE: When the lifting hook is used, the maximum allowable lifting load is 4 tons.
A: Load radius
B: Load point height
C: Lifting capacity
