Chapter 3 Programming
3 – 10
3.3.4 EH-RMP (Profibus) configuration

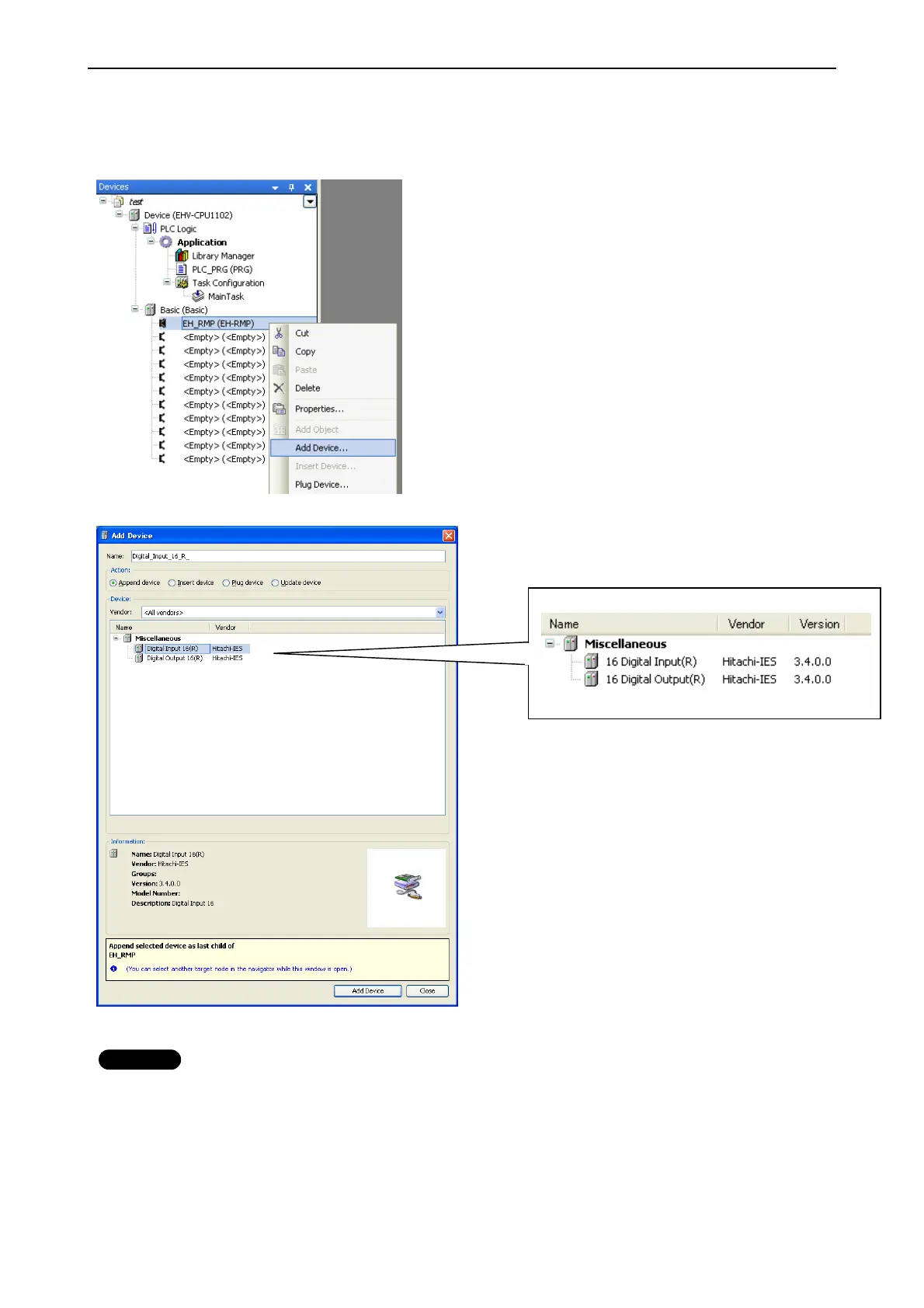

Separate configuration by Sycon is required for EH-RMP. In EHV-CoDeSys, total size of input and output must be
configured by adding digital in/output 16 module. Choose “Add Device” on EH-RMP and choose digital input 16 or
digital output 16 module according to actual total size of slave units.
Note
• Any types of slave units are available for EH-RMP, but only digital input 16 and digital output 16 module can be
configured under EH-RMP in EHV-CoDeSys. Configure those modules according to total input and output size.
For example, if the total input and output size of slave modules are 4 and 8 words, configure 4 times of Digital
Input 16 (R) and 8 times of Digital Output 16 (R) under EH-RMP.
• Be sure to mount EH-RMP on slot 0 to 7 of basic base although it can be configured on slot 8 to A also in
EHV-CoDeSys.
To Next Page
