Chapter 3 General Specifications
3 – 37

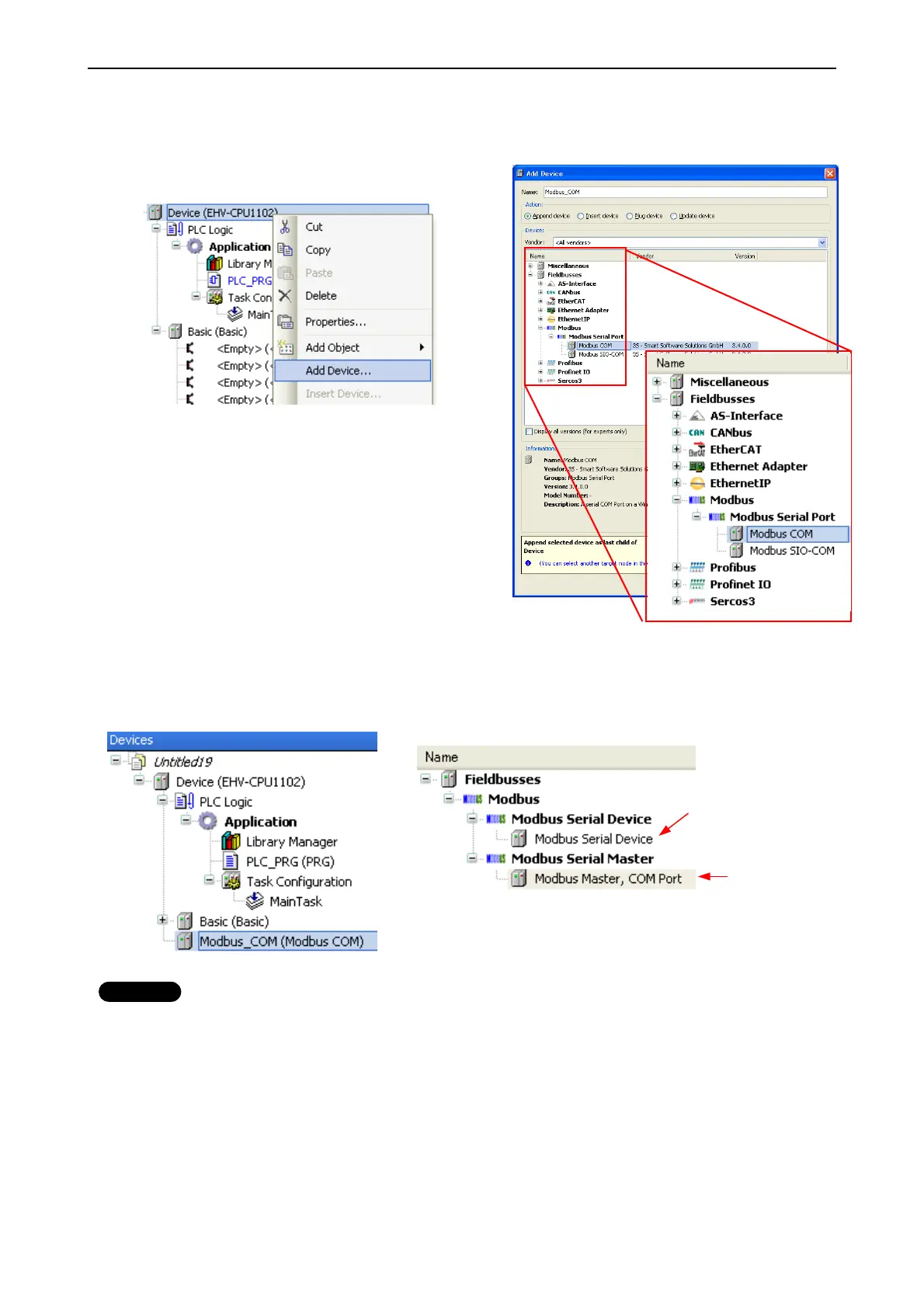

3.13.4 Modbus-RTU master
Right click on “Device” and choose “Add Device...”.
“Add Device” window appears.
Click “Modbus COM” and [Add Device] button.
With “Add device” window opened, click “Modbus_COM” in the device tree. Then available devices will be shown in
the “Add Device” window. Choose “Modbus Master, COM Port”and [Add Device] button
Note
Although CPU’s Serial port does not support Modbus-RTU slave function, slave device (Modbus Serial Device) is
available since it is common device for other manufacturer’s CoDeSys based CPUs. Please do not choose this device
with EHV+ series CPUs.
Modbus-RTU Slave:
Not supported
Modbus-RTU Master
To Next Page
