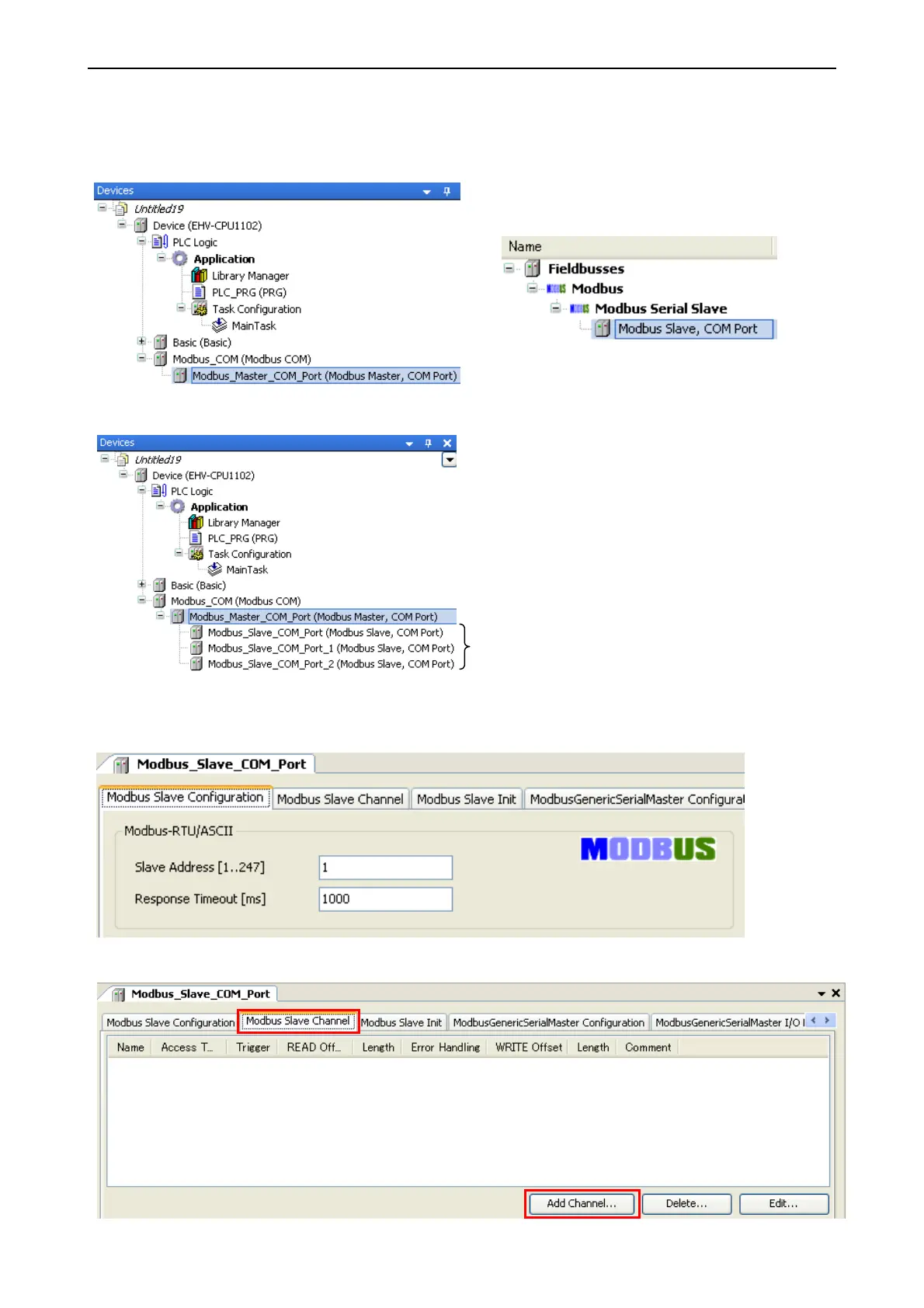

With “Add device” window opened, click “Modbus_Master_COM_Port” in the device tree. Then “Modbus Slave,
COM Port” is shown in the “Add Device” window. Click “Modbus Slave, COM Port” and [Add Device] button
according to your Modbus system configuration. e.g. if 3 slaves are to be controlled, add 3 times of slave devices.
Function codes to be sent are configured in each slave. Double click a slave unit to open configuration window.
Set slave address and response timeout.
Open “Modbus Slave Channel” tab and click “Add Channel...” to add function codes.
Be sure to configure all slave modules to be controlled.
