Hitachi EHV+ Series User Manual

Chapter 4 Installation (hardware)
4 – 3

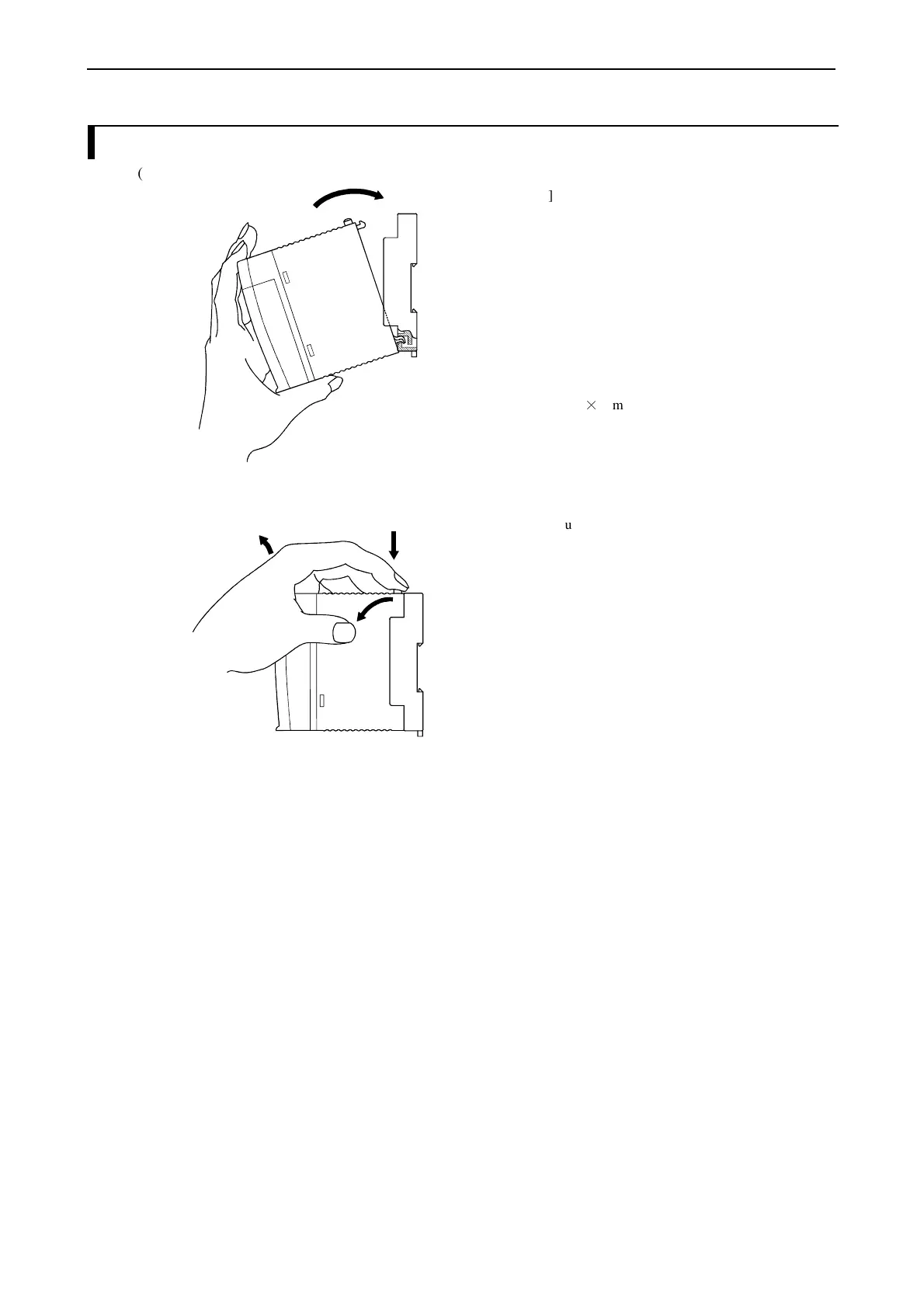

4.2 Loading Module
(1) Installing
2]
1]
1] Hook the claw at the lower section of the module
to the hole in the base.
2] Press in the upper side of the module until it
clicks.
Note 1: Make sure the module does not come out
after loading the module.
Note 2: Load the power module at the far left side
of base unit.
Note 3: Load the CPU module and the I/O
controller to the left of the power module.
It can reinforce with the screw after installation.
Use M4 × 10mm screws in this case.
(2) Removing
2]
1]
3]
1] Push in the lock button.
2] With the lock button pushed in, pull the top of
the module toward the front.
3] Raise it toward the top and pull it out.
Note: Pull the power module out while pushing
down the two lock buttons.
