Chapter 2 Specifications
2 – 59

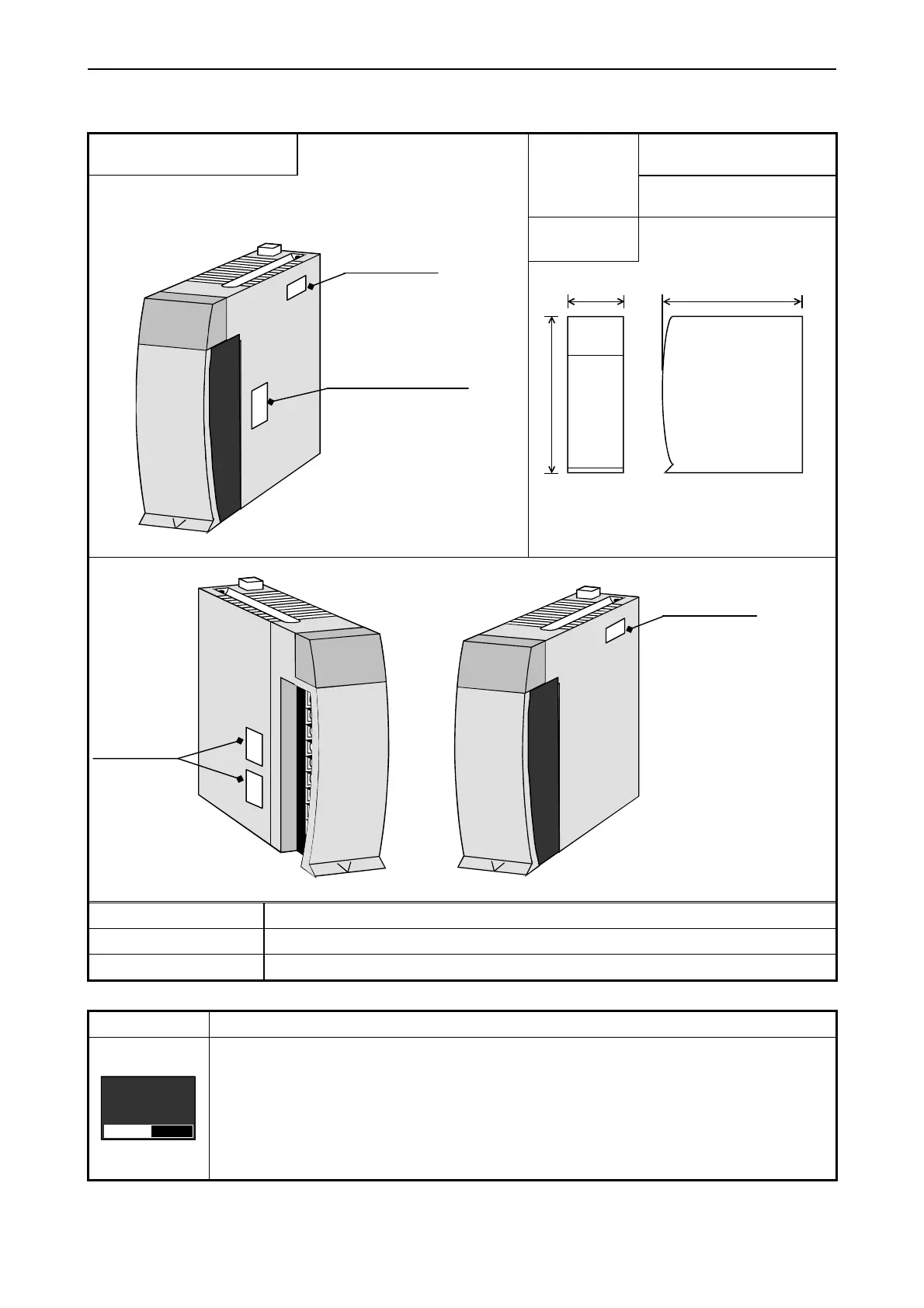

2.8.2 High resolution analog modules
(1) EH-AXH8M
Module features
EH-AXH8M (Approx. 0.15kg
(0.34lb.))
EH-AXH8M
Type (Weight)
EH-AYH8M (Approx. 0.18kg
(0.41lb.))
Dimensions
(mm (in.))
Setting switch
Current / voltage switch
30 (1.18)
100 (3.94)
95 (3.74)
EH-AYH8M
Setting switch
Current / voltage
switch
Name Description
Setting switch configures I/O range, input filter and resolution mode.
Current / voltage switch configures current or voltage.
Front view Indicating contents
OK
ANAROG IN EH-AXH8M
0 1 2 3
4 5 6 7
OK LED ON: the module is operating in normal condition.
0 to 7 LED OFF: analog signal is operating in normal condition.
[EH-AXH8M]
If analog signal is less than 2mA, corresponding number LED flashes. (Valid only when 4 to 22mA mode
with 0.002mA resolution is selected.)
[EH-AYH8M]
If data out of the range is written, corresponding number LED flashes.
