Chapter 2 Specifications
2 – 80

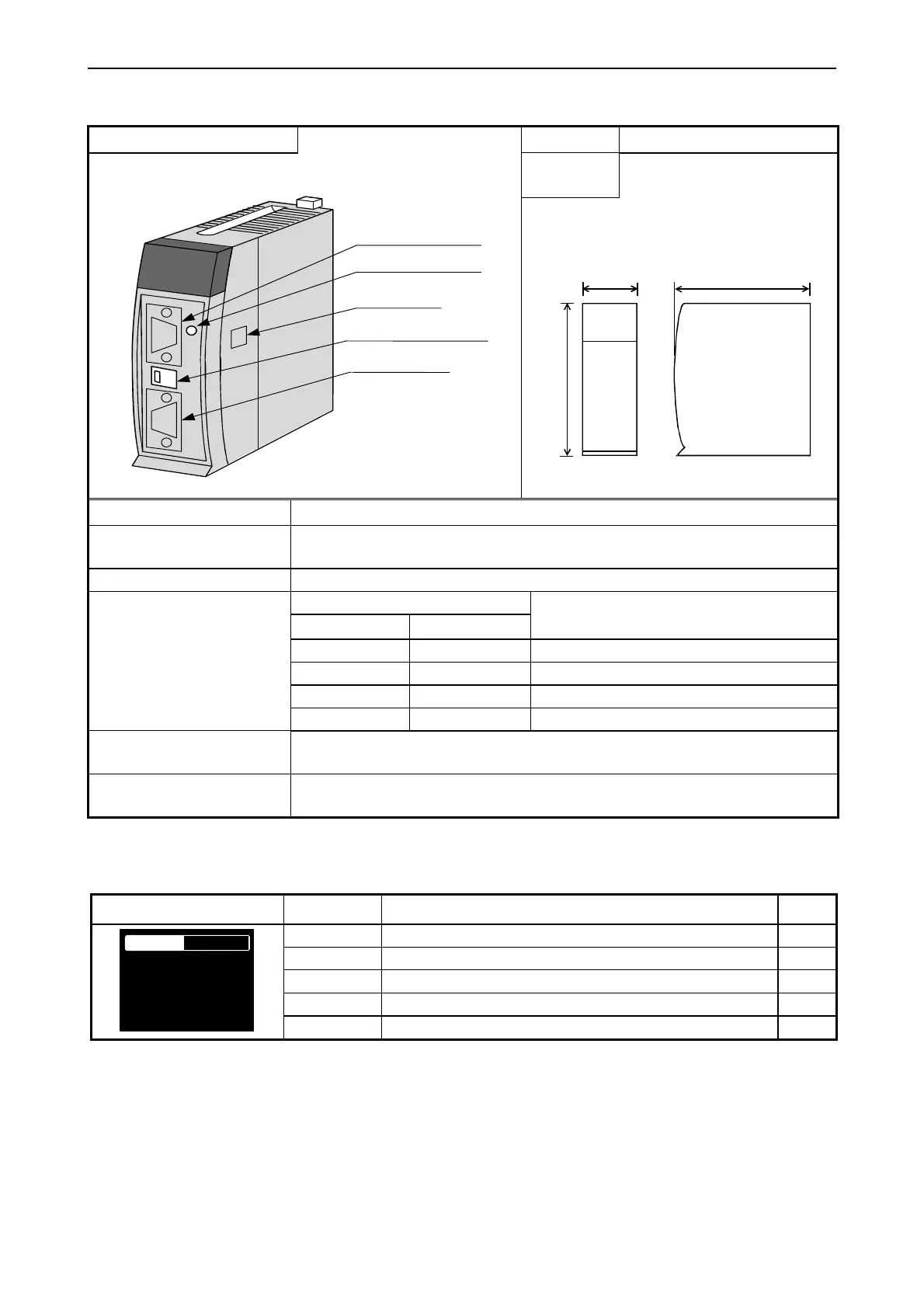

2.9.4 PROFIBUS-DP master module : EH-RMP
Module features Type (Weight)
EH-RMP (Approx. 0.13kg (0.28Ib.))
Dimensions
(mm (in.))
Connector 1
DIP switch
Reset switch
Termination switch
Connector 2
30 (1.18)
100 (3.94)
95 (3.74)
Name Description
Connector 1 Connect to PC (configurator), 9pin male Sub-D
Be careful, this connector become hot.
Reset switch When module is abnormal, module is reset by pushing this.
Switch No.
4 3
Supplementary explanation
(when the CPU is stopped)
OFF OFF CLEAR mode: the output data is cleared.
OFF ON FREEZE mode: the output data is frozen.
ON OFF COPY mode: the output data is coped from the CPU.
DIP switch
*1
(No. 1,2 not used)
ON ON Not use
Termination switch ON: bus termination enabled
OFF: bus termination disabled
Connector 2 Connect to field bus, 9pin female Sub-D
The screw is the terminal for functional earth.
*1: For setting of this switch, remove the module from the rack. If the setting ends, cover with the protection sheet.
LED name
Front view LED name Description Color
STATUS The state of the EH-RMP Green
RUN Communication running Green
ERR Error on communication line Red
RDY Device has no error Green
PROFIBU
EH-RMP
RDY
ERR
RUN
TOKEN
STATUS
TOKEN Lit all the time Green
