Hitachi EHV+ Series User Manual

Chapter 2 Specifications
2 – 48

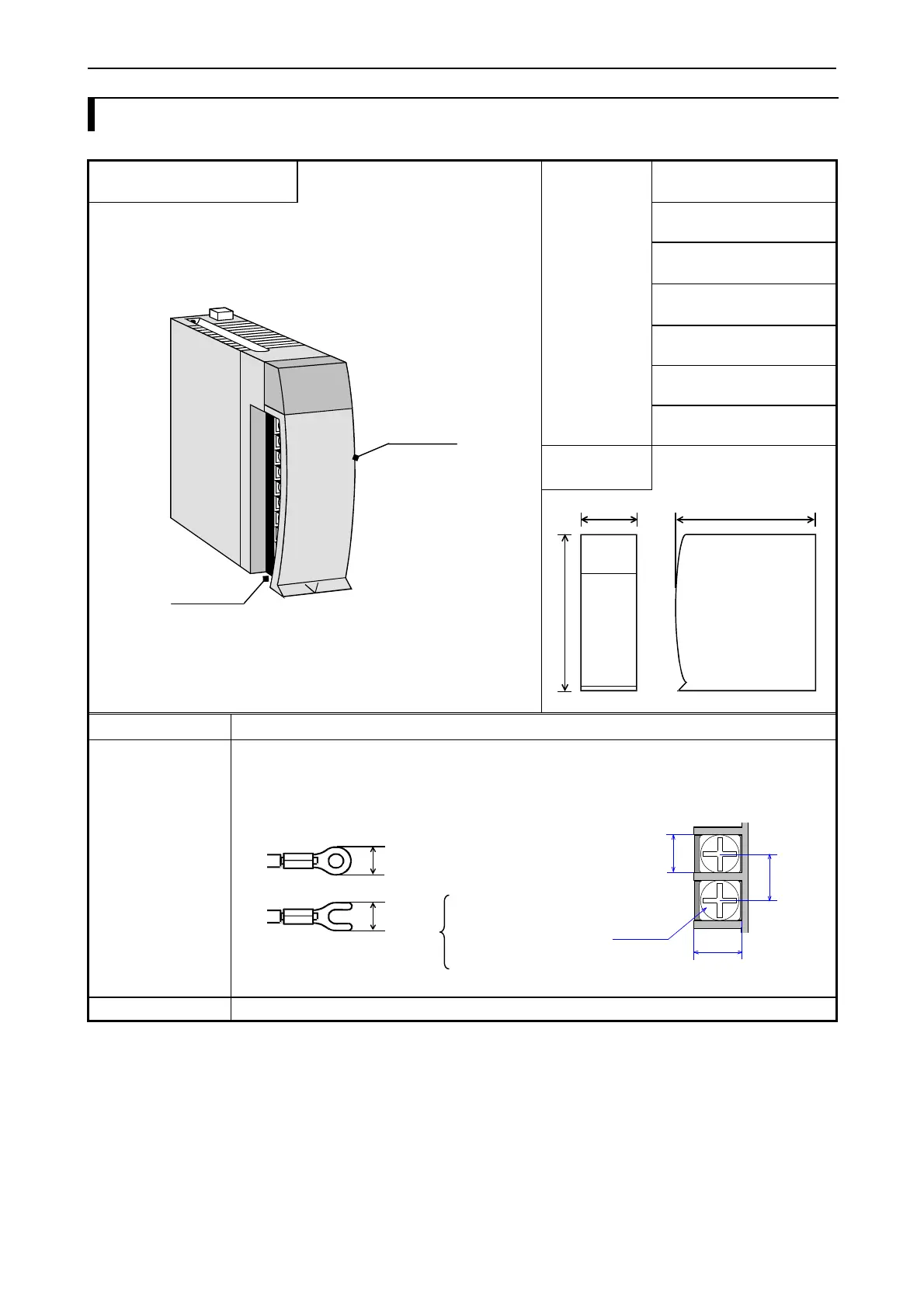

2.8 Analog I/O Modules
2.8.1 Standard analog modules
Module features
EH-AX44
(Approx. 0.18kg (0.41lb.))
EH-AX8V, AX8H
(Approx. 0.18kg (0.41lb.))
EH-AX8I, AX8IO
(Approx. 0.18kg (0.41lb.))
EH-AY22
(Approx. 0.18kg (0.41lb.))
EH-AY2H
(Approx. 0.18kg (0.41lb.))
EH-AY4V, AY4H
(Approx. 0.18kg (0.41lb.))
Type (Weight)
EH-AY4I
(Approx. 0.18kg (0.41lb))
Dimensions
(mm (in.))
Terminal
b
lock cover
Terminal block
30 (1.18)
100 (3.94)
95 (3.74)
Item Description
Terminal block
The terminal block is to connect I/O signals. It is removable type. M3 screws are used.
Use a crimping terminal fitting with screw diameter.
The maximum size of the cable is 0.75 mm
2
. (Use 0.5 mm
2
cable if using 2 crimping terminals in single
terminal.)
The recommended crimping terminal is indicated as below.
Terminal block cover This is a covert for installing on the terminal block.
6 (0.24)
6 (0.24)
Unit: mm
(
in.
)
(Recommended)
Handle very carefull
y
since cable could be
detached
when screw is loose.
7.6
6.4
8.2
M3 scre
w
Unit: in.
