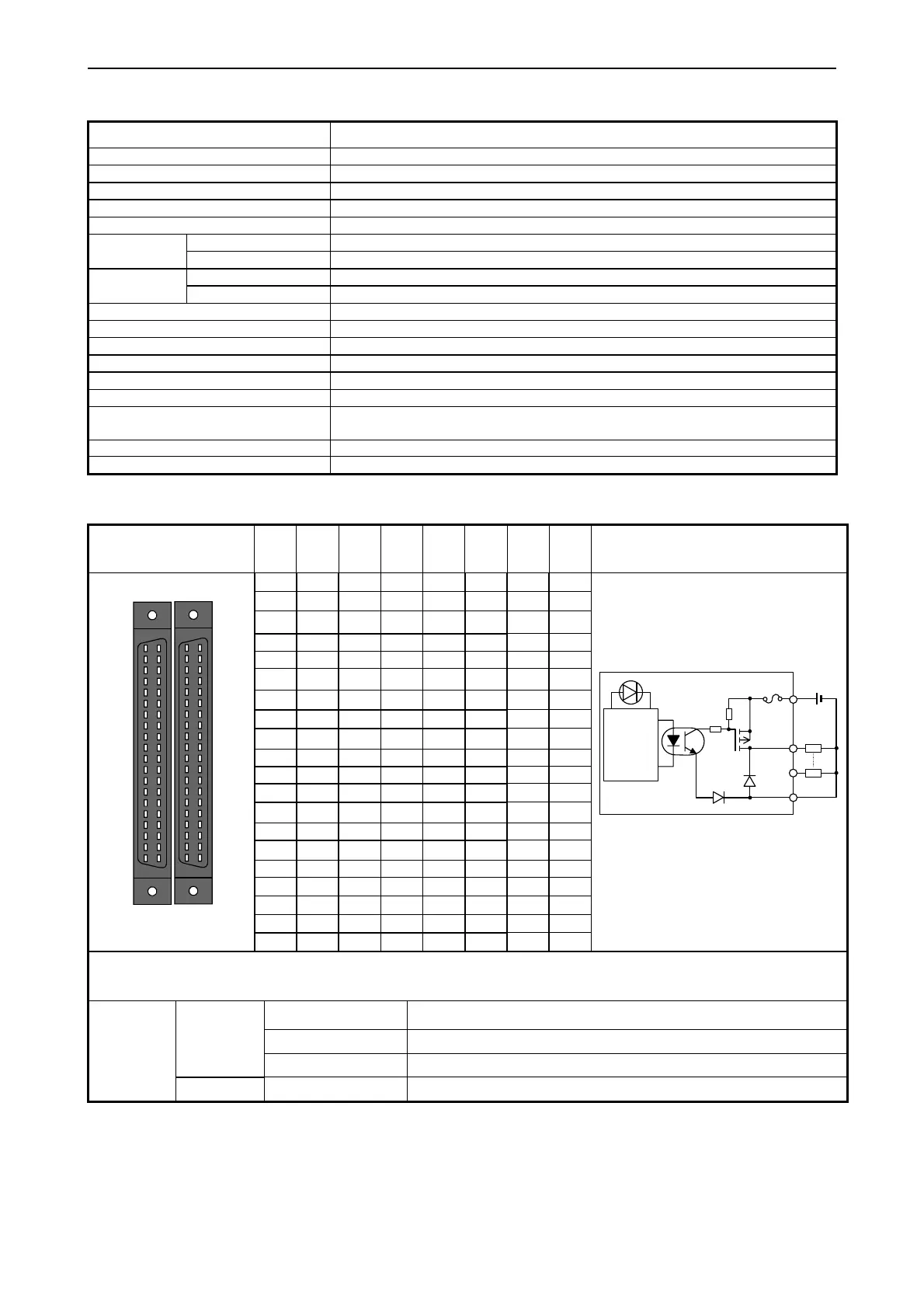

Chapter 2 Specifications
2 – 47
(28) EH-YTP64
Specification
EH-YTP64
Output specification Transistor output (source type)
Number of output points 64
Rated load voltage 12/24V DC (+10%, -15%)
Minimum switching current 1mA
Leak current 0.1mA
1 circuit 0.1A Maximum load
current
1 common 3.2A
OFFÎON 0.3ms maximum Output
response time
ON
ÎOFF 1ms maximum
Insulation system Photo-coupler insulation
Output display Green LED
External connection Connector
Number of output points / commons 32 (2 commons, 8 terminals)
Surge removal circuit Diode
Fuse *
1
5A / 1 common
External power supply (for supplying
power to S-terminal)
12/24V DC (+10%, -15%) (100mA at the maximum)
Internal current consumption (5V DC) 120 mA maximum
Short-circuit protection function Available
*1 The fuse is not replaced by users. Please contact your local supplier to repair.
Terminal configuration
No.
Signal
name
No.
Signal
name
No.
Signal
name
No.
Signal
name
Diagram of Internal circuit
[41] 32 [61] 48 [1] 0 [21] 16
[42] 33 [62] 49 [2] 1 [22] 17
[43] 34 [63] 50 [3] 2 [23] 18
[44] 35 [64] 51 [4] 3 [24] 19
[45] 36 [65] 52 [5] 4 [25] 20
[46] 37 [66] 53 [6] 5 [26] 21
[47] 38 [67] 54 [7] 6 [27] 22
[48] 39 [68] 55 [8] 7 [28] 23
[49] C2 [69] C2 [9] C1 [29] C1
[50] S2 [70] S2 [10] S1 [30] S1
[51] 40 [71] 56 [11] 8 [31] 24
[52] 41 [72] 57 [12] 9 [32] 25
[53] 42 [73] 58 [13] 10 [33] 26
[54] 43 [74] 59 [14] 11 [34] 27
[55] 44 [75] 60 [15] 12 [35] 28
[56] 45 [76] 61 [16] 13 [36] 29
[57] 46 [77] 62 [17] 14 [37] 30
[58] 47 [78] 63 [18] 15 [38] 31
[59] C2 [79] C2 [19] C1 [39] C1
[20]
[1]
[60]
[41]
[80]
[61] [21]
[40]
[60] S2 [80] S2 [20] S1 [40] S1
LED
Internal
circuit
S1
0
C1
31
Applicable connectors
- 120mm (4.73in.) space is required in front of the module. Be sure to consider this space in installation location.
- Use a shield cable with class D grounding.
Solder type Socket: FCN-361J040-AU, Cover: FCN-360C040-E
Crimp type Housing: FCN-363J040, Contact: FCN-363J-AU
Fujitsu
Takamizawa
Crimp type (flat cable) FCN-367J040-AU/F
Manufac-
turers
AMP Solder type 1473381-1
