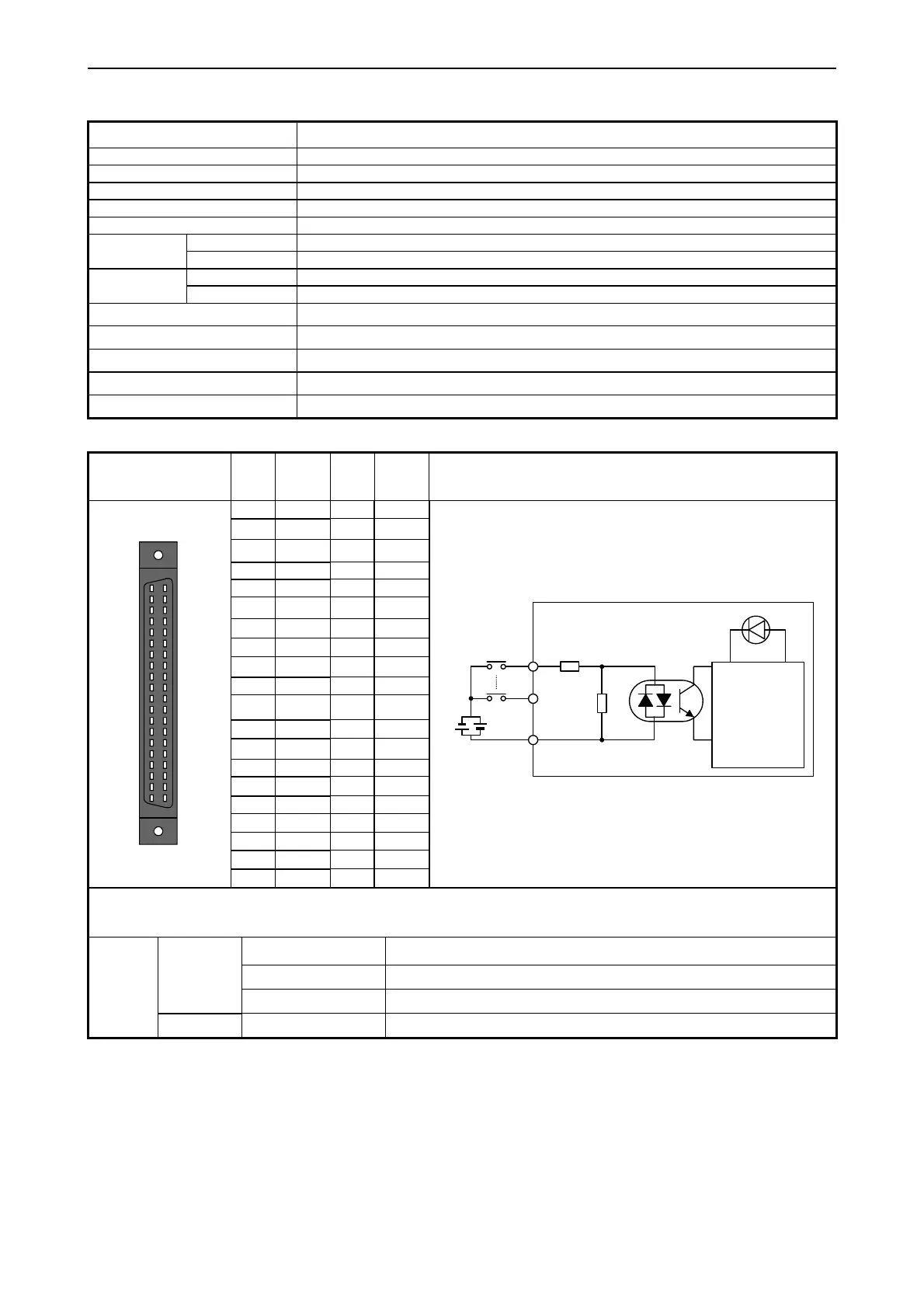

Chapter 2 Specifications
2 – 23
(6) EH-XD32
Specification
EH-XD32
Input type DC input (Common for sink and source)
Number of inputs 32
Input voltage 24V DC (20.4 to 28.8 V DC)
Input current Approx. 4.3mA
Input impedance Approx. 5.6kΩ
Operating ON voltage 15V minimum
voltage OFF voltage 5V maximum
Input response OFFÎON 5ms maximum
time ON ÎOFF 5ms maximum
Insulation system
Photo-coupler insulation
Input display
Green LED
External connection
Connector
Number of inputs / common
32 (1 common, 4 terminals)
Internal current consumption
60 mA maximum
Terminal
configuration
No.
Signal
name
No.
Signal
name
Diagram of Internal circuit
[1] 0 [21] 16
[2] 1 [22] 17
[3] 2 [23] 18
[4] 3 [24] 19
[5] 4 [25] 20
[6] 5 [26] 21
[7] 6 [27] 22
[8] 7 [28] 23
[9] C [29] C
[10] 8 [30] 24
[11] 9 [31] 25
[12] 10 [32] 26
[13] 11 [33] 27
[14] 12 [34] 28
[15] 13 [35] 29
[16] 14 [36] 30
[17] 15 [37] 31
[18] C [38] C
[19] N.C. [39] N.C.
[40]
[21]
[20]
[1]
[20] N.C. [40] N.C.
0
C
31
LED
Internal circuit
Applicable connectors
- 120mm (4.73in.) space is required in front of the module. Be sure to consider this space in installation location.
- Use a shield cable with class D grounding.
Solder type Socket: FCN-361J040-AU, Cover: FCN-360C040-E
Crimp type Housing: FCN-363J040, Contact: FCN-363J-AU
Fujitsu
Takamizawa
Crimp type (flat cable) FCN-367J040-AU/F
Manufac-
turers
AMP Solder type 1473381-1
