Hitachi EHV+ Series User Manual

Chapter 2 Specifications
2 – 34

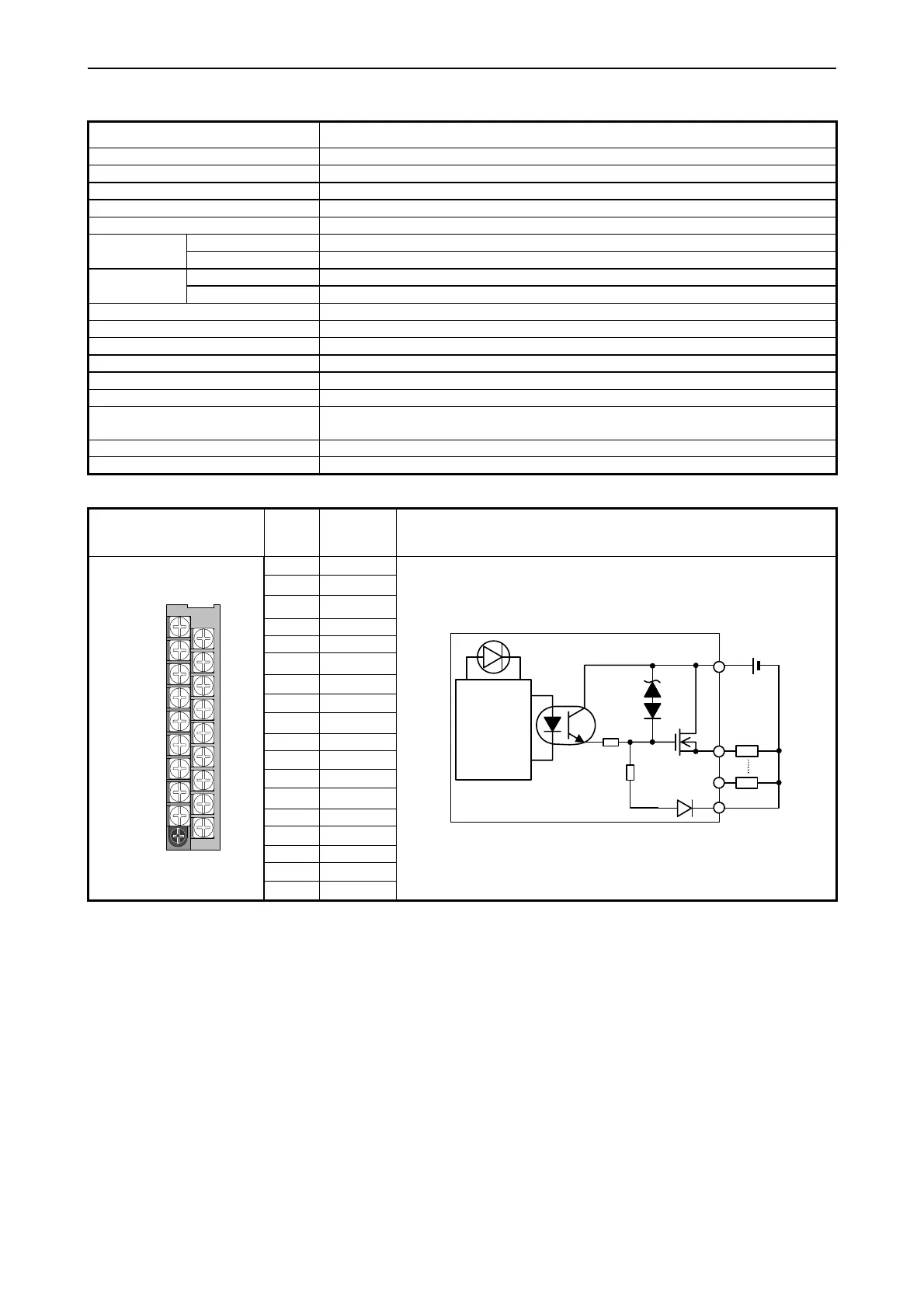

(16) EH-YTP16S
Specification
EH-YTP16S
Output specification Transistor output (source type)
Number of outputs 16
Raged load voltage 12/24V DC (+10%, -15%)
Minimum switching current 1mA
Leak current 0.1mA
1 circuit 0.8A Maximum load
current
1 common 5A
OFFÎON 0.3ms maximum Output
response time
ON
ÎOFF 1ms maximum
Insulation system Photo-coupler insulation
Output display Green LED
External connection Removable type screw terminal block (M3)
Number of outputs / common 16
Surge removal circuit Built-in
Fuse None
External connection (for supplying
power to S-terminal)
12/24V DC (+10%, -15%) (30mA at the maximum)
Internal current consumption 50 mA maximum
Short-circuit protection function Available
Terminal configuration
No.
Signal
name
Diagram of Internal circuit
[1] 0
[2] 1
[3] 2
[4] 3
[5] 4
[6] 5
[7] 6
[8] 7
[9] C
[10] 8
[11] 9
[12] 10
[13] 11
[14] 12
[15] 13
[16] 14
[17] 15
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
Screw for
fixing
[18] S
LED
Internal
circuit
S
0
C
15
