Hitachi EHV+ Series User Manual

Chapter 2 Specifications
2 – 37

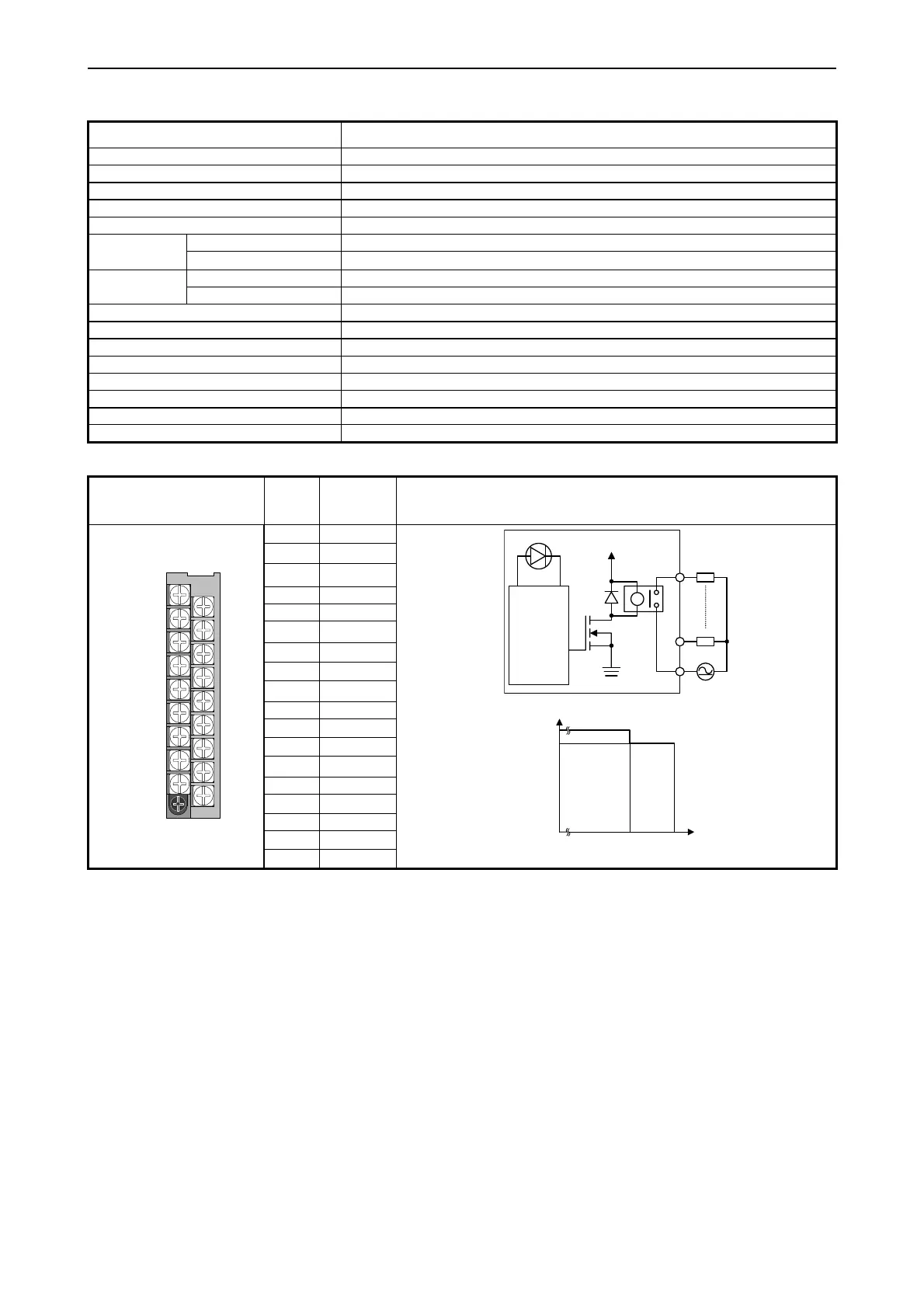

(19) EH-YR16
Specification
EH-YR16
Output specification Relay output
Number of outputs 16
Rated load voltage 100/240V AC, 24V DC
Minimum switching current 1mA (5V DC), except after a great current switching
Leak current None
1 circuit 2A
Maximum load
current
1 common
8A (Ambient temperature 40
°C), see the following derating table
OFFÎON 10ms maximum Output
response time
ON
ÎOFF 10ms maximum
Insulation system Relay insulation
Output display Green LED
External connection Removal type screw terminal block (M3)
Number of output points / commons 16 (1 common, 2 terminals)
Surge removal circuit None
Fuse None
External power supply Not used
Internal current consumption (5V DC) 430 mA maximum
Terminal configuration
No.
Signal
name
Diagram of Internal circuit
[1] 0
[2] 1
[3] 2
[4] 3
[5] 4
[6] 5
[7] 6
[8] 7
[9] C
[10] 8
[11] 9
[12] 10
[13] 11
[14] 12
[15] 13
[16] 14
[17] 15
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
Screw fo
r
fixing
[18] C
LED
Internal
circuit
0
C
15
EH-YR16 Derating table
Maximum common current (A)
8
7
6
5
4
3
2
1
0
20 30 40 50 55
Ambient temperature (
°
C)
