Hitachi EHV+ Series User Manual

Chapter 2 Specifications
2 – 76

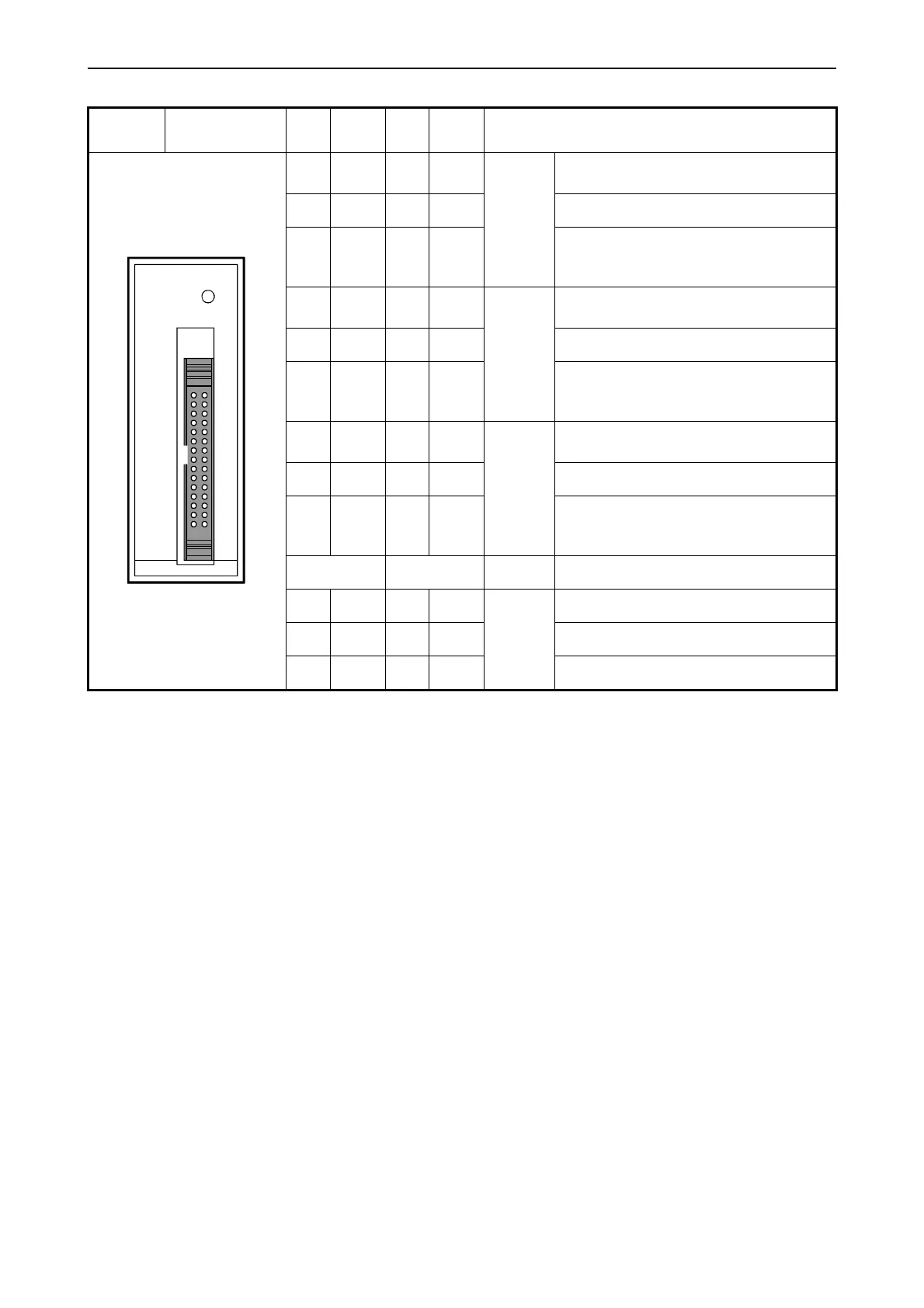

EH-CUE Terminal
configuration
No. CH2 No. CH1
Meaning of signal
16 N.C. 1 Vin A
Connects to a 12 to 24V DC power supply at
using voltage input.
17 N.C. 2 A (+) Connects (+) polarity at using differential input.
18 N.C. 3 A (-)
Phase A
Connects an open collector signal at using
voltage input.
Connects (-) polarity at using differential input.
19 N.C. 4 Vin B
Connects to a 12 to 24V DC power supply at
using voltage input.
20 N.C. 5 B (+) Connects (+) polarity at using differential input.
21 N.C. 6 B (-)
Phase B
Connects an open collector signal at using
voltage input.
Connects (-) polarity at using differential input.
22 N.C. 7 Vin M
Connects to a 12 to 24V DC power supply at
using voltage input.
23 N.C. 8 M (+) Connects (+) polarity at using differential input.
24 N.C. 9 M (-)
Marker
Connects an open collector signal at using
voltage input.
Connects (-) polarity at using differential input.
25 to 27 N.C. 10 to 12 N.C. Connect nothing.
28 N.C. 13 Y0 Coincidence output. Connects to the other input.
29 N.C. 14 Y1 Coincidence output. Connects to the other input.
RESET
EH-CUE
CH2 CH1
16 1
30 15
CN1
30 N.C. 15 Com1
Output
(-) common for coincidence output
Note: Pin No. defined in EH-CUE does not accord with pin No. defined by the connector maker.
