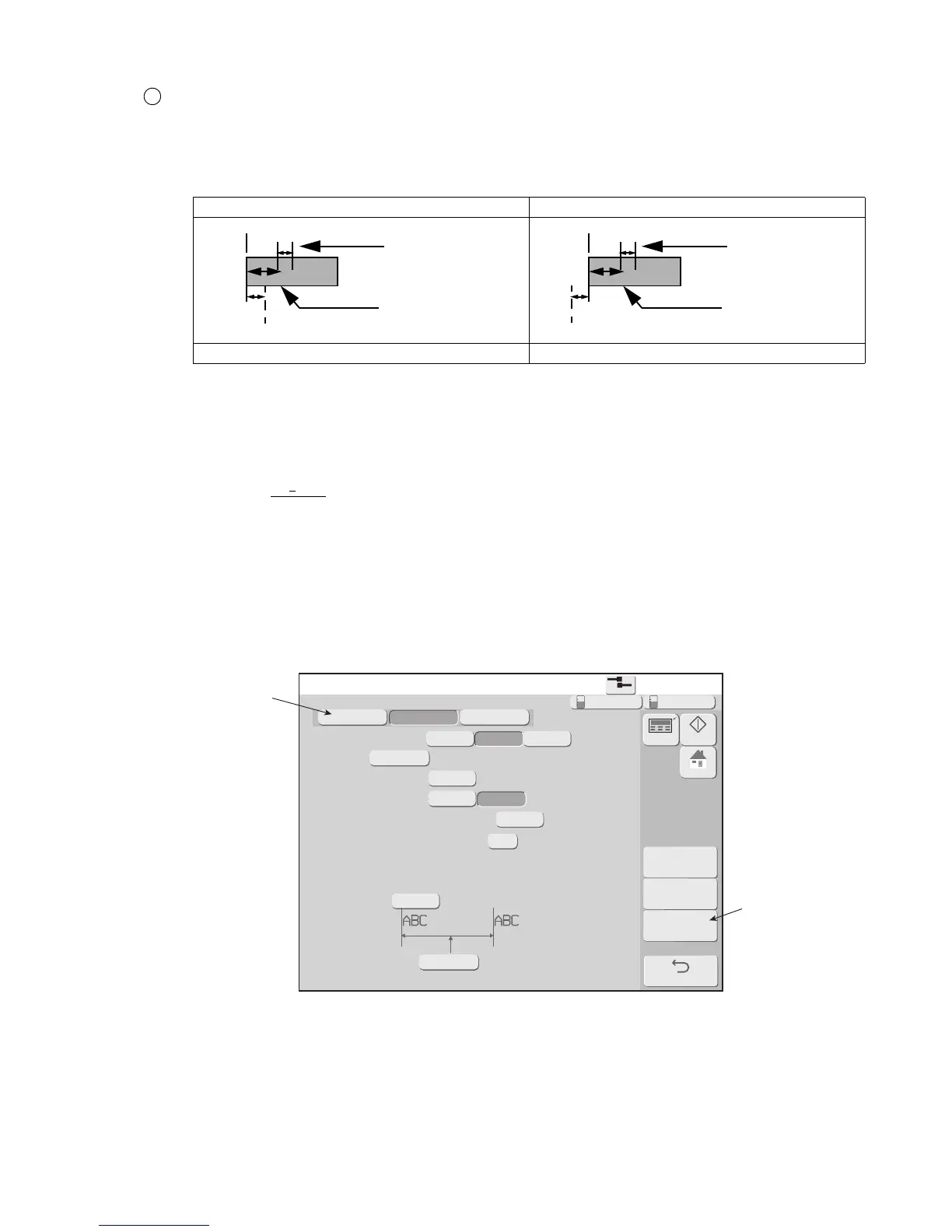

●Set the print specifications 4-80
When the nozzle is positioned before the sensor When the nozzle is positioned after the sensor
Print start delay=a-b (mm) Print start delay=a+b (mm)
Print start delay
●The printing start position can be specified.
●After setting in character units or mm units, fine adjust in scan units.
●When you want to input in mm units, input “Line speed”.
●The positional relationship between the sensor and nozzle is as indicated below.
6
●Specify the print start delay (printing start position) as suggested below.
(i) Measure the length of the print start delay.
(ii) Measure the inter-character distance (C).
(iii) Divide the value obtained in (i) by the value obtained in (ii). Enter the resulting value.
a+b
c
: Setting value
●When a product speed matching function is not provided, if the ink drop use percentage, character
width, character size or number of lines is changed, the set value of the print start delay can be adjusted
so that the time until printing starts will not change.
●When a product speed matching function is provided, if the pulse rate division actor is changed, the set
value of the print start delay can be adjusted so that the time until printing starts will not change.
Sensor
c
Direction of transport
Print target
b
Nozzle center
a
0 0 2 3
Sensor
c
Direction of transport
Print target
b
Nozzle center
a
0 0 2 3
Print specifications
2015.07.07 12:45
Com=0
[Stop ]
Changeunit
Print
format
Edit
message
Message name [ ]
Product speed matching
Line speed [m/min.] Input '0' if unknown
Pulse rate div. Factor （1/1〜1/999 Enter denominator.）
Speed compensation
Speed compensation fine control (-50〜+50)SC
Distance between print head and work [mm]
Repeat print
０００００
Repeat count (0: none, 1〜9998, 9999: Continuous)
Repeat intervals （0〜99999）SC
００００
０００００
００１
００
Back
2nd screen
1st screen 3rd screen
Disable
Enable
００００
None
Encoder
Auto
HOME
Startup
Manual
Makeup Ink
To Next Page
