Hitachi L300P Series - Page 53

L300P Inverter
Inverter Mounting
and Installation
2–11

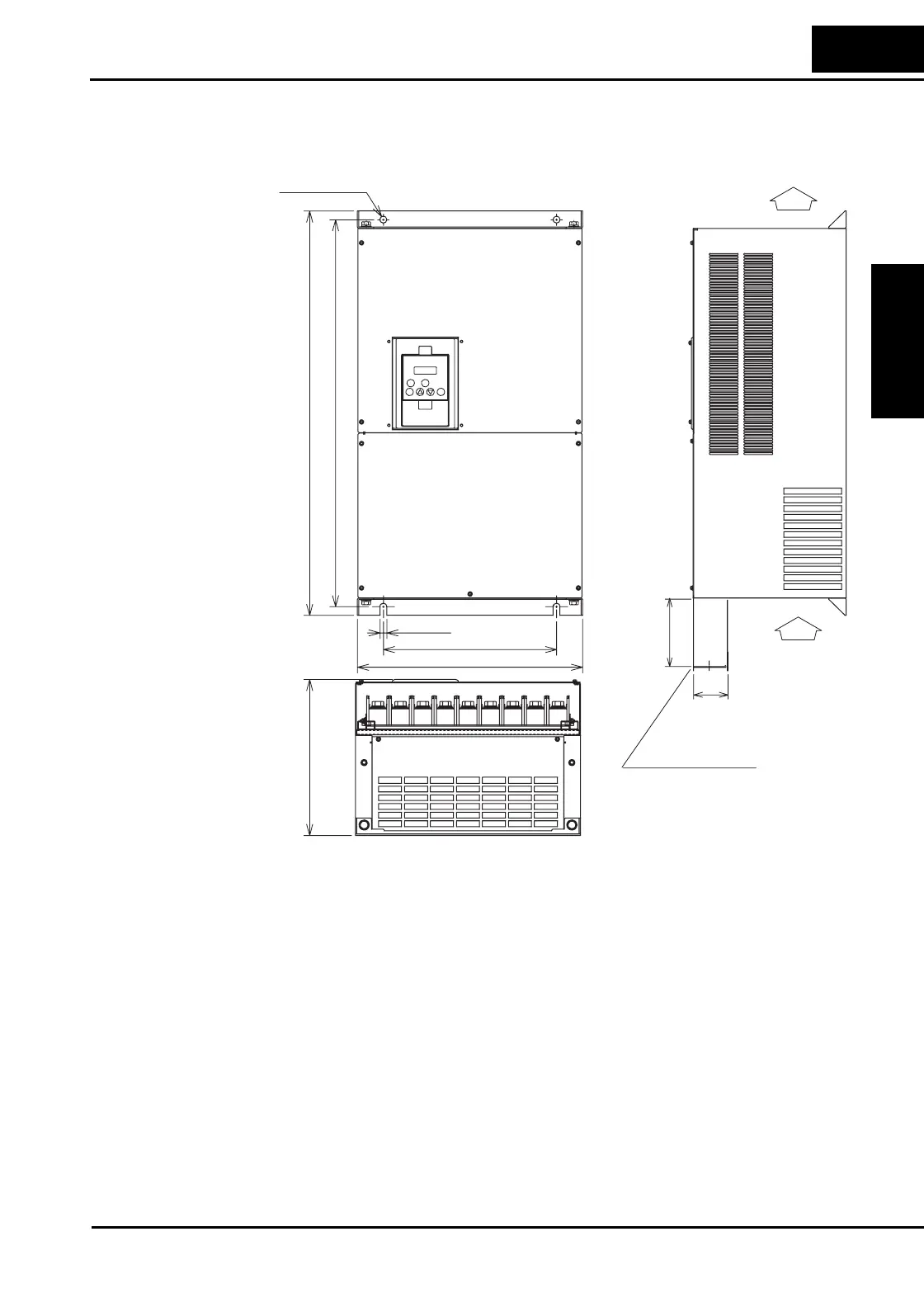

Dimensional drawings, continued...
Model
L300P
-900HFU2, HFE2
-1100HFU2, HFE2
700(27.56) 670(26.38)
300(11.81)
390(15.34)
270(10.63)
2 - φ 12(0.47)
2 - 12(0.47)
Air intake
Exhaust
Optional adapter
for NEMA1 rating
90(3.54)
185(7.28)
