Moving and Installing the System
Refer to this procedure if the system is being moved or installed. Before moving the AP3600 system, contact the local Hitachi Chemical
Diagnostics service representative for detailed information.
WARNING:The AP3600 Instrument weighs approximately 170 kg (375 lbs.). Four persons are required to assist when lifting
the system. Refer to “Heavy Objects” on page 1-4 for details.
Installing a New System
1.
Prepare the system location. The AP3600 instrument must be installed on a stable, flat surface that meets the following specifica-
tions (see Figure C-1 and Figure C-2):
•
Surface Dimensions: 1800 x 1060 x 1200 mm (W x H x D)
•
Supports a load of 185 kg
•
300 mm clearance (Left side)
•
300 mm clearance (Right side)
•
300 mm clearance (Rear)

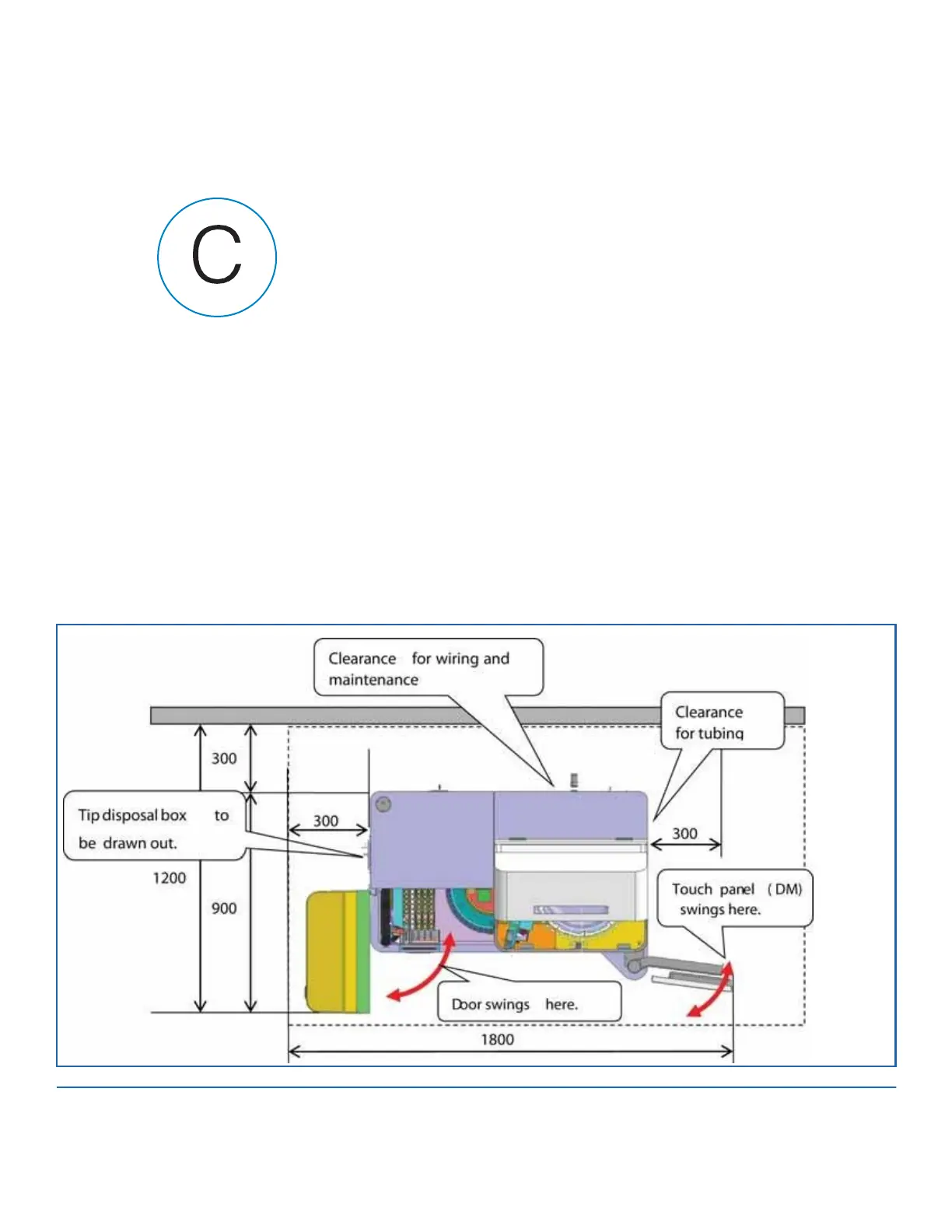

FIGURE C-1. Instrument Clearances (all dimensions in mm)
C-1
