OPTIGEN® AP3600™ AUTOMATED INSTRUMENT USER MANUAL
C-2
Moving and Installing the System

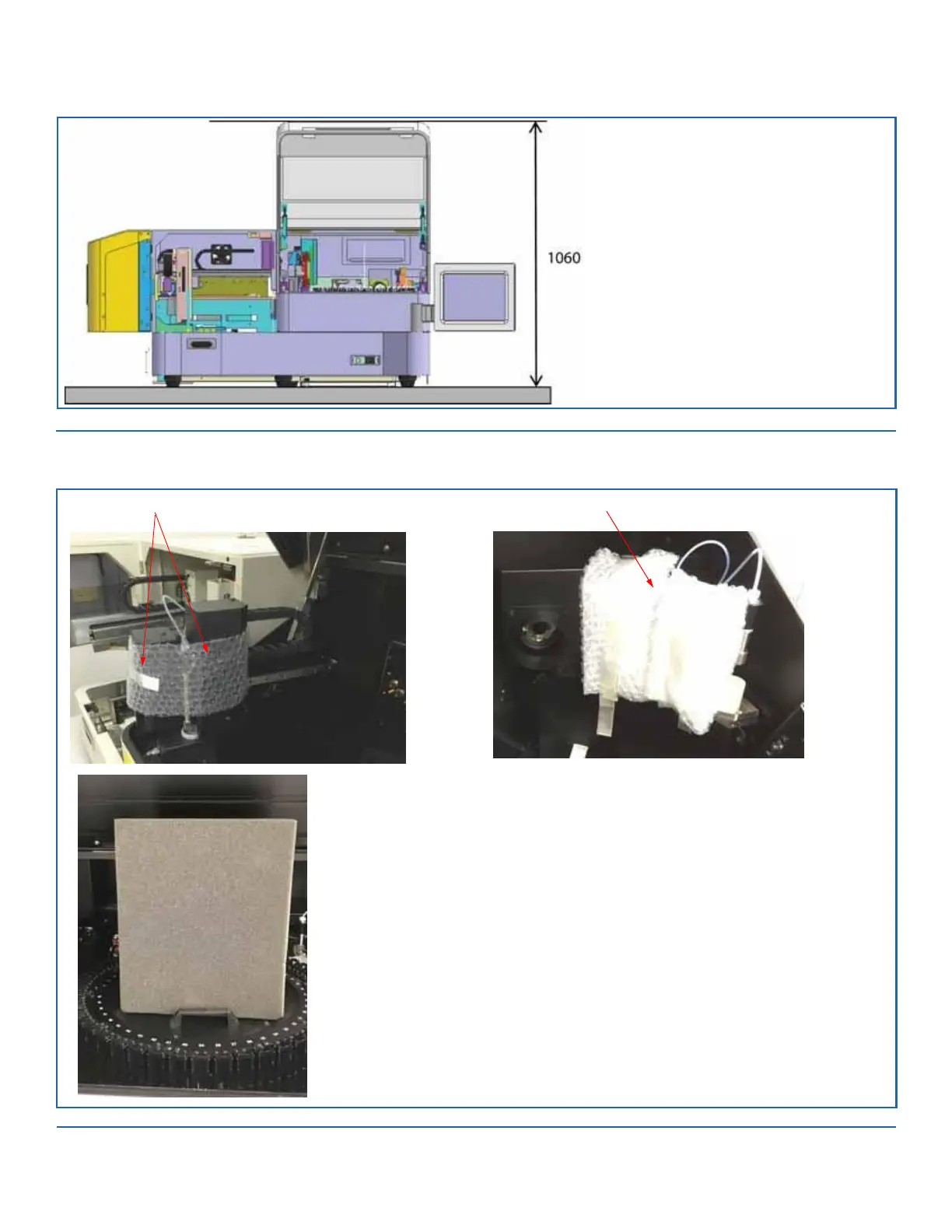

FIGURE C-2. Height Clearance for AP3600 Instrument
2. Remove tape from the exterior of the instrument. Open the dark box and serum handling area covers.
3. Remove tape and cushions from the Sample Distribution Nozzle Head and Reagent and Wash Nozzle Heads. See Figure C-3.
FIGURE C-3. Removing Packing Materials from Black Box
Remove cushions from Sample Distribution Nozzle Head
Remove cushions from Reagent and Wash Nozzle Heads
Remove foam piece from Pette Carousel
