Hitachi SJ200 Series Quick Reference Guide

12
Parameter Tables

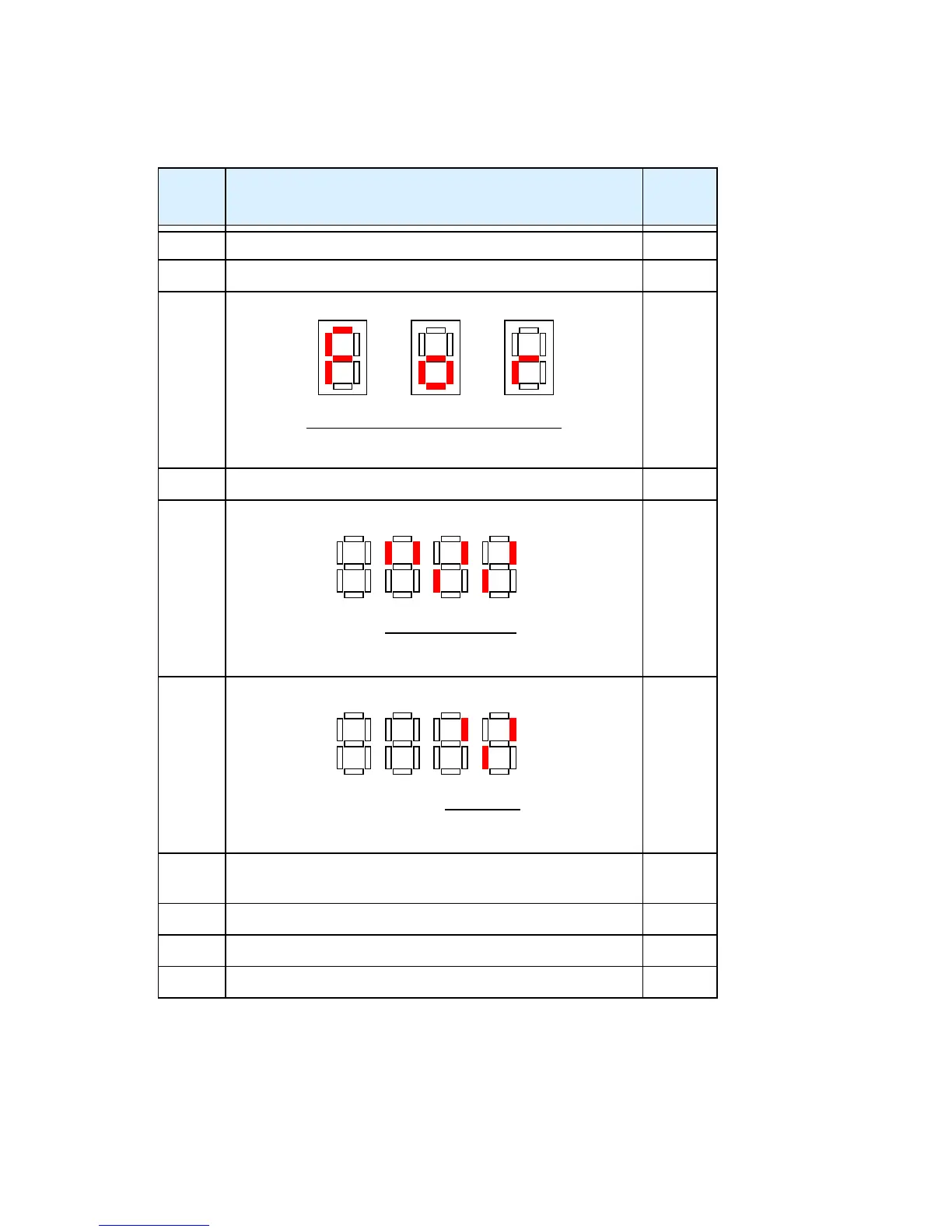

“D” Group: Monitoring Functions
Func.
Code
Name / Description Units
D001 Output frequency monitor Hz
D002 Output current monitor A
D003 Rotation direction monitor —
D004 Process variable (PV), PID feedback monitor %
D005 Intelligent input terminal status —
D006 Intelligent output terminal status —
D007 Scaled output frequency monitor
(output frequency x B086 scale factor)
User-
defined
D013 Output voltage monitor V
D016 Cumulative operation RUN tim monitor hours
D017 Cumulative power-on time monitor hours
Direction
Forward
Stop Reverse
2 14365
Terminal Numbers
ON
OFF
12 11AL
Terminal Numbers
ON
OFF

Hitachi SJ200 Series Specifications

General

Series	SJ200
Category	Inverter
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Cooling Method	Fan cooled
Humidity	5 to 95% RH (non-condensing)
Control Method	V/f Control, Sensorless Vector Control
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat
Ambient Temperature	-10 to 50°C
Braking Unit	Built-in
Communication	RS-485 (Modbus RTU)
Altitude	Up to 1000m
Output Voltage	3-Phase 200-240 VAC, 3-Phase 380-480 VAC
Storage Temperature	-20 to +60°C (-4 to 140°F)
