Hitachi SJ200 Series Quick Reference Guide

2

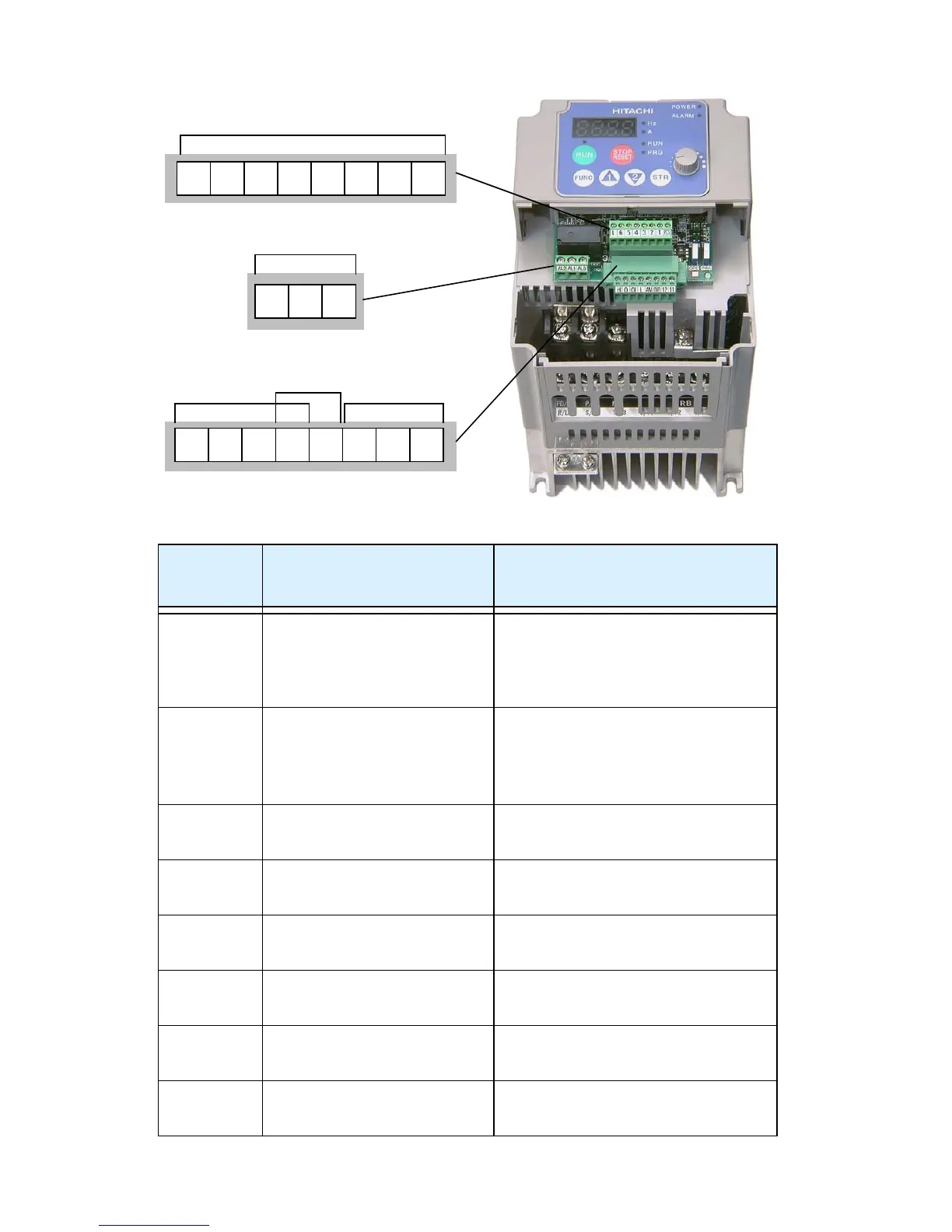

Control Circuit Terminals
Termina l
Name
Description Ratings and Notes
PCS +24V for logic inputs 24VDC supply, 30 mA max.
(Notes: Do not use for network
power
Do not short to terminal L)
1, 2, 3, 4,
5, 6
Intelligent (program-
mable) discrete logic
inputs
27VDC max. (use P24 or an
external supply referenced to
terminal L), 4.7kΩ input
impedance
L (top
row)
GND for logic inputs Sum of input 1 to 6 currents
(Note: Do not ground)
11, 12 Discrete logic outputs 50 mA max. ON current,
27 VDC max. OFF voltage
CM2 GND for logic outputs 100 mA max for sum of
terminals 11 and 12 currents
AM Analog voltage output 0 to 10VDC, 1 mA max., 50%
duty cycle
L (bottom
row)
GND for analog signals Sum of OI, O, H, and AM
currents (return)
OI Analog input, current 4 to 19.6 mA range, 20 mA
nominal
H O OI AM
PCS L
Analog
inputs
Analog
outputs
Alarm relay
Logic
outputs
Logic inputs
L
6 5 4 3 2 1
CM2 12 11
AL2 AL1 AL0

Hitachi SJ200 Series Specifications

General

Series	SJ200
Category	Inverter
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Cooling Method	Fan cooled
Humidity	5 to 95% RH (non-condensing)
Control Method	V/f Control, Sensorless Vector Control
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat
Ambient Temperature	-10 to 50°C
Braking Unit	Built-in
Communication	RS-485 (Modbus RTU)
Altitude	Up to 1000m
Output Voltage	3-Phase 200-240 VAC, 3-Phase 380-480 VAC
Storage Temperature	-20 to +60°C (-4 to 140°F)
