Hitachi SJ200 Series Quick Reference Guide

5

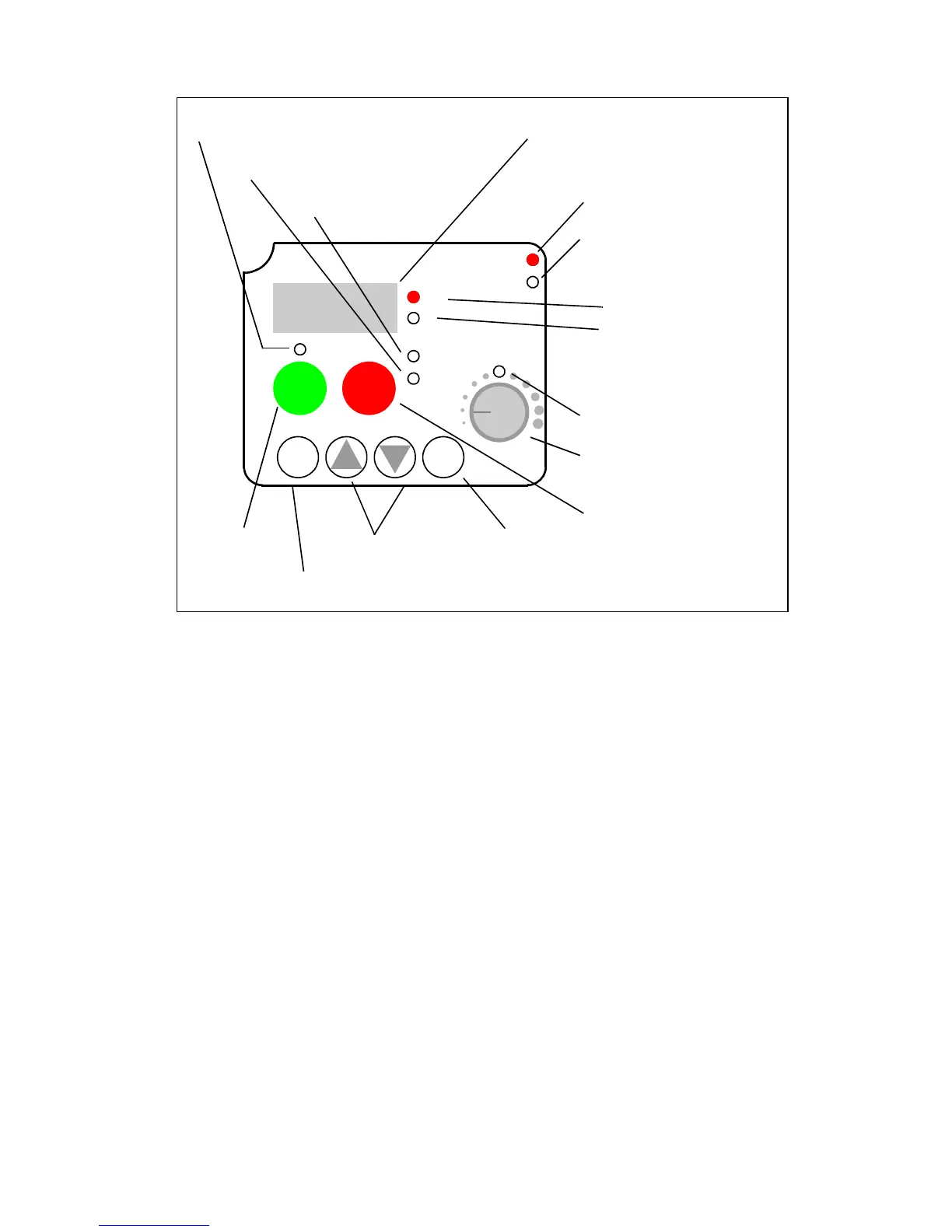

Inverter Keypad Operation
• Run/Stop LED – ON when the inverter output is ON and the motor is
developing torque, and OFF when the inverter output is OFF (Stop
Mode).
• Program/Monitor LED – ON when the inverter is ready for parame-
ter editing (Program Mode). It is OFF when the parameter display is
monitoring data (Monitor Mode).
• Run Key Enable LED – ON when the inverter is ready to respond to
the Run key, OFF when the Run key is disabled.
• Run Key – Press this key to run the motor (the Run Enable LED must
be ON first). Parameter F004, Keypad Run Key Routing, determines
whether the Run key generates a Run FWD or Run REV command.
• Stop/Reset Key – Press this key to stop the motor when it is running
(uses the programmed deceleration rate). This key will also reset an
alarm which has tripped.
• Potentiometer – Allows an operator to directly set the motor speed
when the potentiometer is enabled for output frequency control.
• Potentiometer Enable LED – ON when the potentiometer is enabled
for value entry.
(continued, next page...)
POWER
RUN
PRG
RUN
STOP
RESET
HITACHI
FUNC
STR
1
2
50.0
Hz
A
HITACHI
ALARM
Parameter Display
Run/Stop LED
Program/Monitor LED
Run Key Enable LED
Run Key
Power LED
Display Units LEDs
Hertz
Amperes
Potentiometer
Enable LED
Potentiometer
Stop/Reset Key
Function Key
Up/Down Keys
Store Key
Alarm LED

Hitachi SJ200 Series Specifications

General

Series	SJ200
Category	Inverter
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Cooling Method	Fan cooled
Humidity	5 to 95% RH (non-condensing)
Control Method	V/f Control, Sensorless Vector Control
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat
Ambient Temperature	-10 to 50°C
Braking Unit	Built-in
Communication	RS-485 (Modbus RTU)
Altitude	Up to 1000m
Output Voltage	3-Phase 200-240 VAC, 3-Phase 380-480 VAC
Storage Temperature	-20 to +60°C (-4 to 140°F)
