Hitachi SJ200 Series Quick Reference Guide

1
Caution: Be sure to read the SJ200 Inverter Manual and follow
its Cautions and Warnings for the initial product installation.
This Quick Reference Guide is intended for reference use by
experienced users in servicing existing installations.

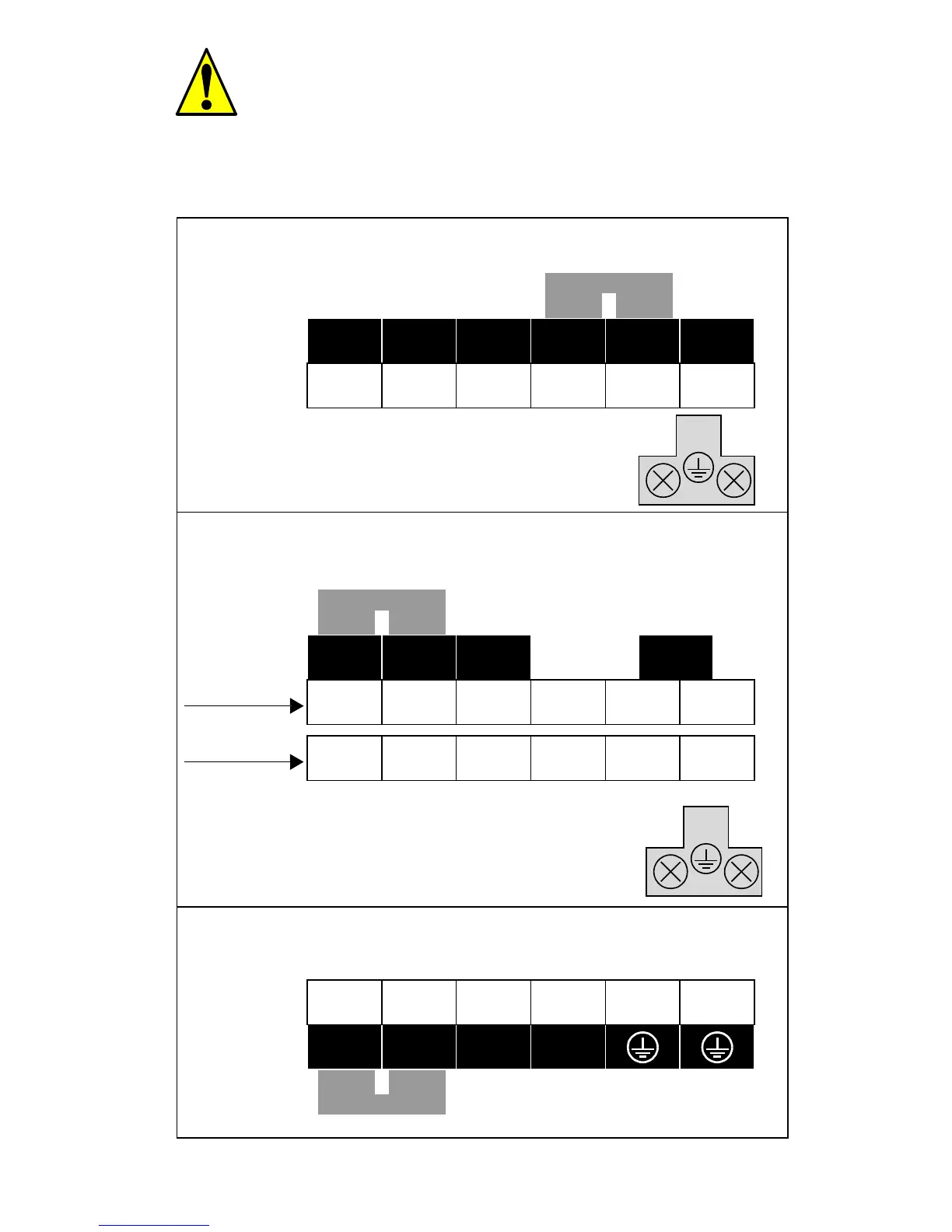

Power Circuit Terminals
RB
Inverter models SJ200–002NFEF/NFU to –005NFEF/NFU
Jumper
RB +1 + –
U/T1
V/T2
W/T3
Chassis
Ground
Inverter models SJ200–007NFEF to –022NFEF, –007NFU to
–037LFU, –004HFEF/HFU to –040HFEF/HFU
Jumper
RB+ –
U/T1 V/T2 W/T3
Chassis
Ground
Inverter models –055HFEF/HFU, 075HFEF/HFU
Jumper
+ –
L1 L2 N/L3
+1
+1
Chassis
Ground
L1 L2 N/L3
L1 L2 L3
NFEF, NFU
LFU, HFEF,
HFU
U/T1L1 L2 L3 V/T2 W/T3
U/T1 V/T2 W/T3

Hitachi SJ200 Series Specifications

General

Series	SJ200
Category	Inverter
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Cooling Method	Fan cooled
Humidity	5 to 95% RH (non-condensing)
Control Method	V/f Control, Sensorless Vector Control
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat
Ambient Temperature	-10 to 50°C
Braking Unit	Built-in
Communication	RS-485 (Modbus RTU)
Altitude	Up to 1000m
Output Voltage	3-Phase 200-240 VAC, 3-Phase 380-480 VAC
Storage Temperature	-20 to +60°C (-4 to 140°F)
