Hitachi Virtual Storage Platform G600 Reference Guide

Number Item Description
Green: Normal link status at 4-
Gbps or 8-Gbps (16-Gbps).
Green: Normal link status at 8-
Gbps or 16-Gbps (32-Gbps).
Port assignments
CHB number
8-Gbps, 16-Gbps, or 32-Gbps Fibre Channel Ports (left to right)
Port 1 Port 2 Port 3 Port 4
CHB-1A 1A 3A 5A 7A
CHB-1B 1B 3B 5B 7B
CHB-1C 1C 3C 5C 7C
CHB-1D 1D 3D 5D 7D
CHB-1E 1E 3E 5E 7E
CHB-1F 1F 3F 5F 7F
CHB-1G 1G 3G 5G 7G
CHB-1H 1H 3H 5H 7H
CHB-2A 2A 4A 6A 8A
CHB-2B 2B 4B 6B 8B
CHB-2C 2C 4C 6C 8C
CHB-2D 2D 4D 6D 8D
CHB-2E 2E 4E 6E 8E
CHB-2F 2F 4F 6F 8F
CHB-2G 2G 4G 6G 8G
CHB-2H 2H 4H 6H 8H

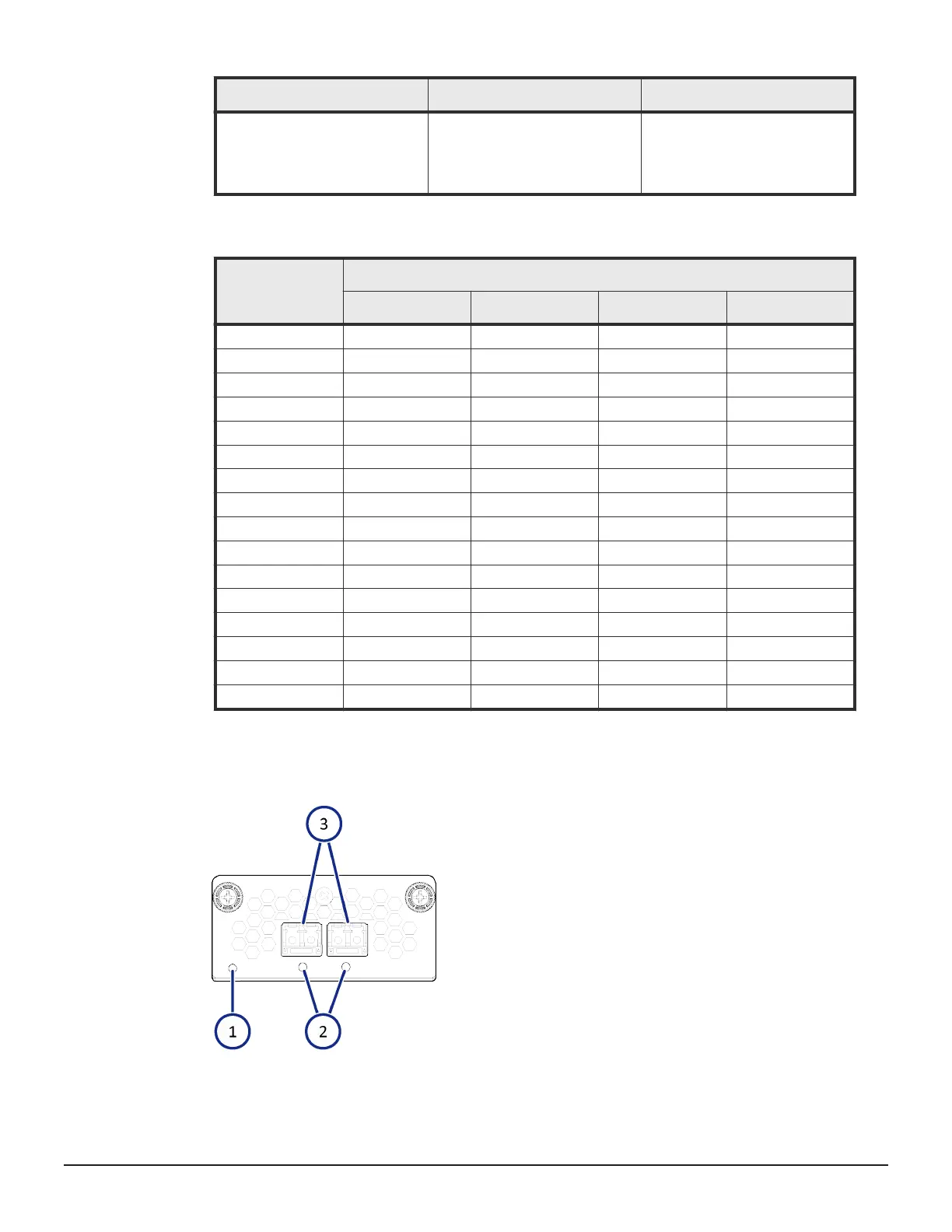

16-Gbps Fibre Channel (2-port) board LEDs and connectors
