Number Item Description
6
PATH (IN) connector Connects to a controller or
drive tray.
7
PATH (OUT)LED Blue: OUT side port is linked
up.
8
PATH (OUT) connector Connects to a drive tray.
9
Console This port is reserved.
10
Power supply unit
N/A
11
Receptacle Connects to the power cable
provided with the storage
system.
12
AC IN LED Green: Normal operation.
13
ALM LED Red: Power supply unit can be
replaced.
14
RDY LED Green: Normal operation.

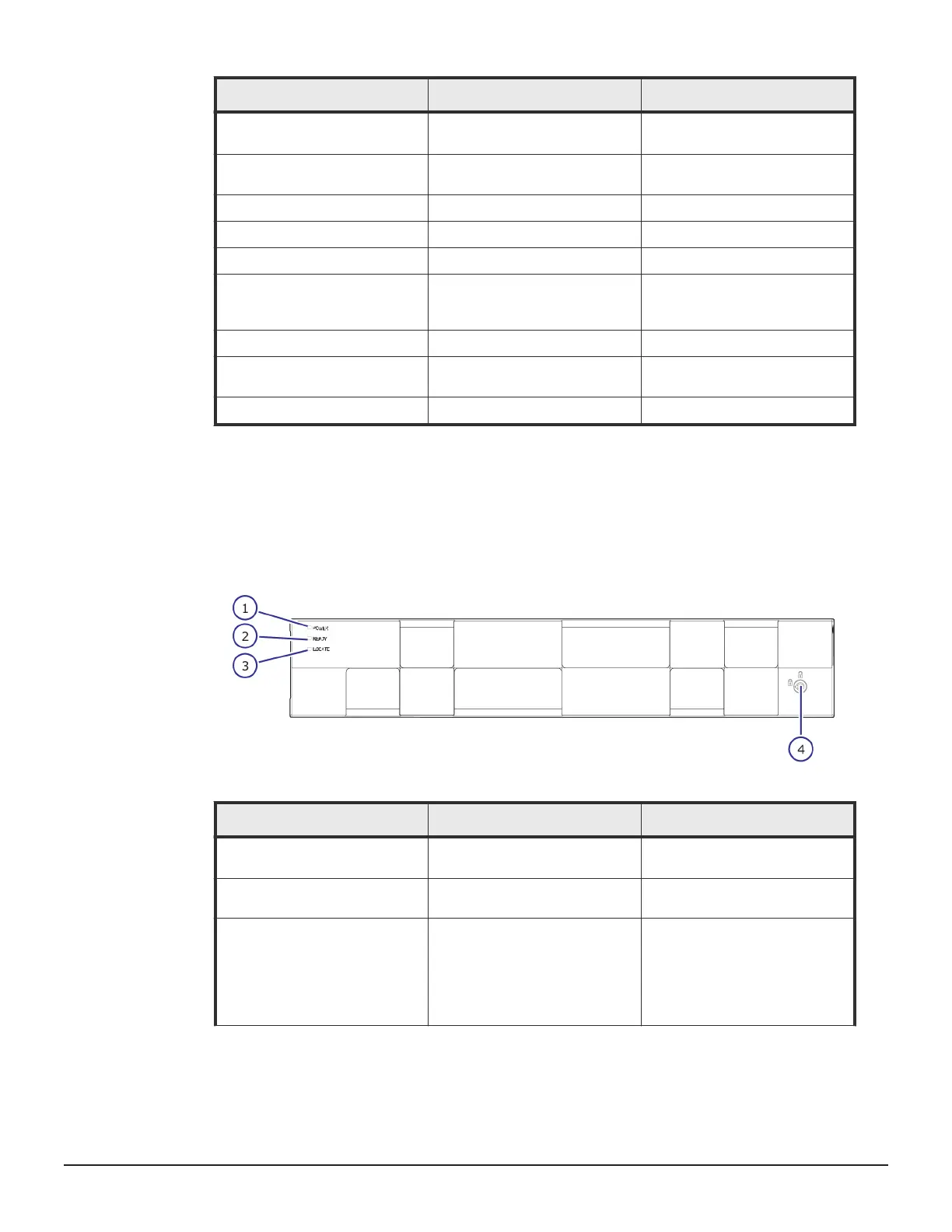

Flash module drive (FMD) tray
FMD with front panel bezel
Number
Item Description
1
POWER LED Green: Drive tray is powered
on.
2
READY LED Green: Drive tray is
operational.
3
LOCATE LED Amber:
Indicates the location of the
chassis.
Can be turned on or turned
off by the maintenance
utility.
Storage system drive trays 47
Hitachi Virtual Storage Platform G400, G600 Hardware Reference Guide
