Number Item Description
4
Lock Locks and unlocks the front
panel bezel by using the
supplied key.

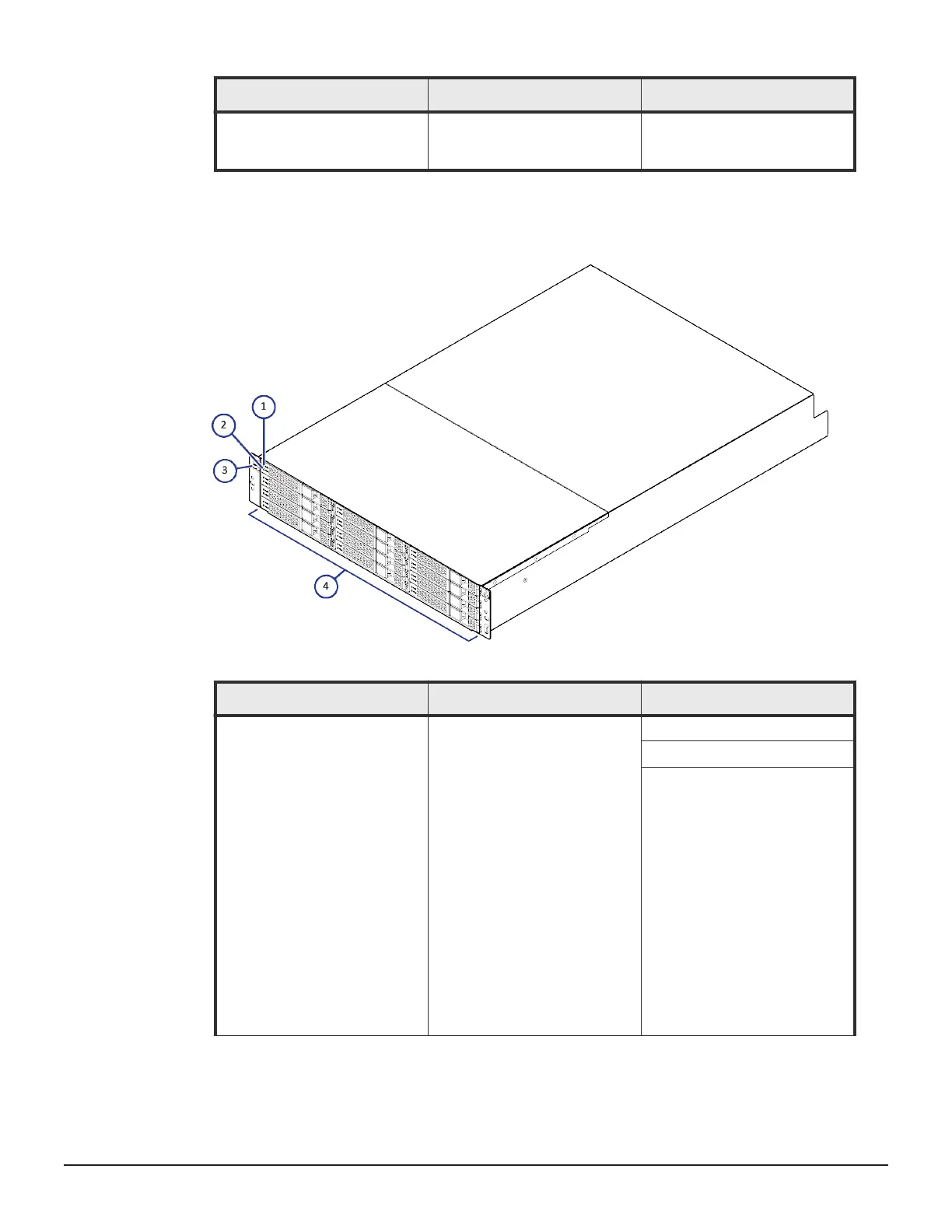

FMD front panel without bezel
Number
Item Description
1, 2
ACT LED Green: Normal operation.
Blink: Drive is being accessed.
Slow blink:
• DKC-F710I-1R6FM/3R2FM:
Insufficient battery capacity
in the flash module drive.
• DKC-F810I-1R6FN/3R2FN/
6R4FN: Flash module drive
built-in capacitor is charged.
If the storage system is
turned on, the LED stops
blinking when the capacitor
is finished charging
(approximately two
minutes).
Note: ACT indicator is only
printed on some types of FMDs.
48 Storage system drive trays
Hitachi Virtual Storage Platform G400, G600 Hardware Reference Guide
