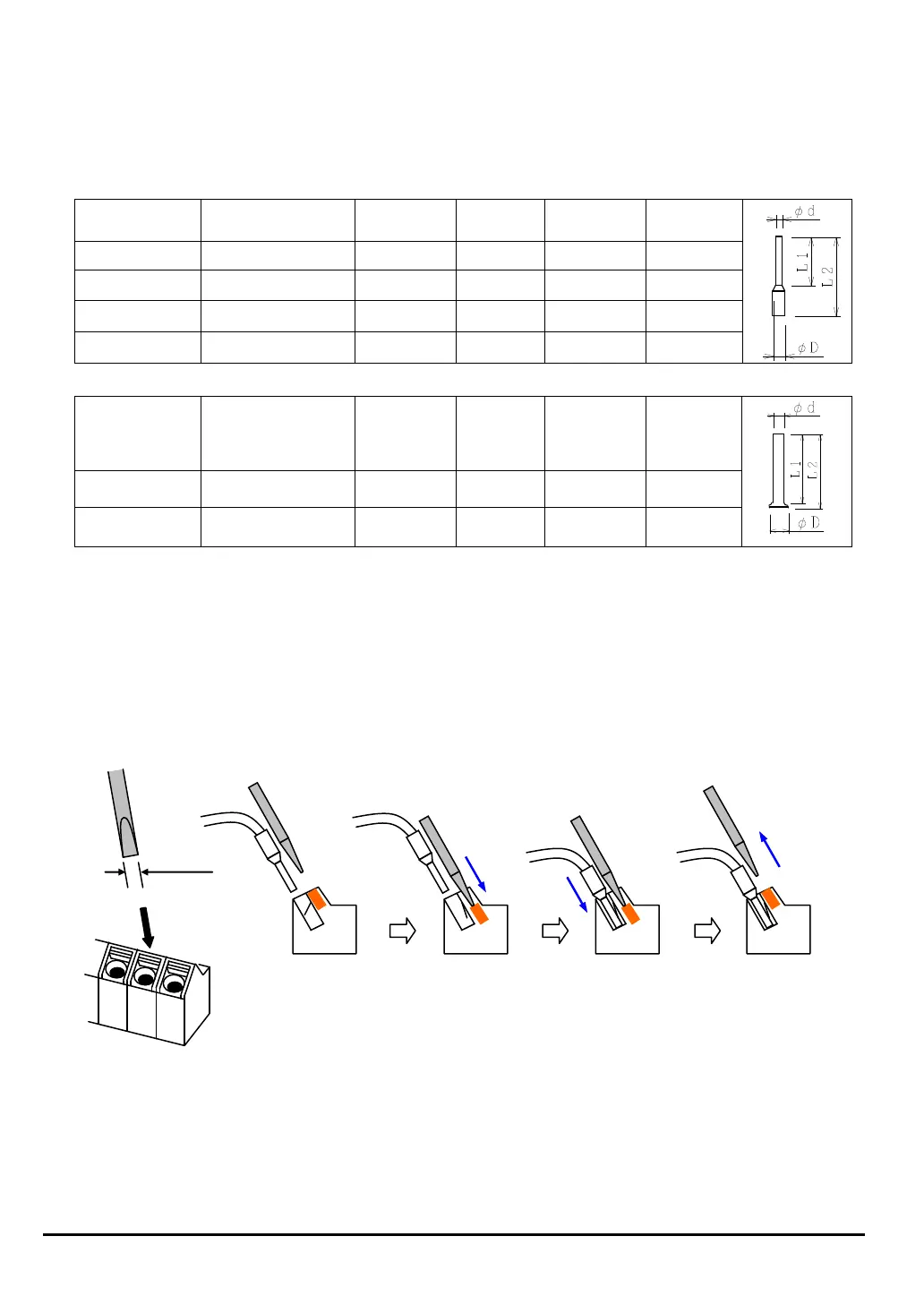

Recommended ferrule
For safe wiring and reliability, it is recommended to use following ferrules.
When you use an option mounted, please use a rod terminal without sleeve to wire so that to
avoid hitting the option case.
Rod terminal with sleeve
Wire size
mm
2
(AWG)
Model name of
ferrule *
L1
[mm]
L2
[mm]
Φd
[mm]
ΦD
[mm]
0.25 (24)
AI 0.25-8YE
8
12.5
0.8
2.0
0.34 (22)
AI 0.34-8TQ
8
12.5
0.8
2.0
0.5 (20)
AI 0.5-8WH
8
14
1.1
2.5
0.75 (18)
AI 0.75-8GY
8
14
1.3
2.8
Rod terminal without sleeve
Wire size
mm
2
(AWG)
Model name of
ferrule *
L1
[mm]
L2
[mm]
Φd
[mm]
ΦD
[mm]
0.5 (20)
A 0,5 – 8
7.3
8
1.0
2.1
0.75 (18)
A 0,75- 8
7.3
8
1.2
2.3
* Supplier: Phoenix contact
Crimping pliers: CRIMPFOX UD 6-4 or CRIMPFOX ZA 3
How to connect?
(1) Push down an orange actuating lever by a slotted screwdriver (width 2.5mm max.).
(2) Plug in the conductor.
(3) Pull out the screwdriver then the conductor is fixed.
Push down an
orange actuating
lever.
2.5mm
Plug in the
conductor.
Pull out the
screwdriver to fix
the conductor.
