Hitachi X200 Series Quick Reference Guide

- 10 -

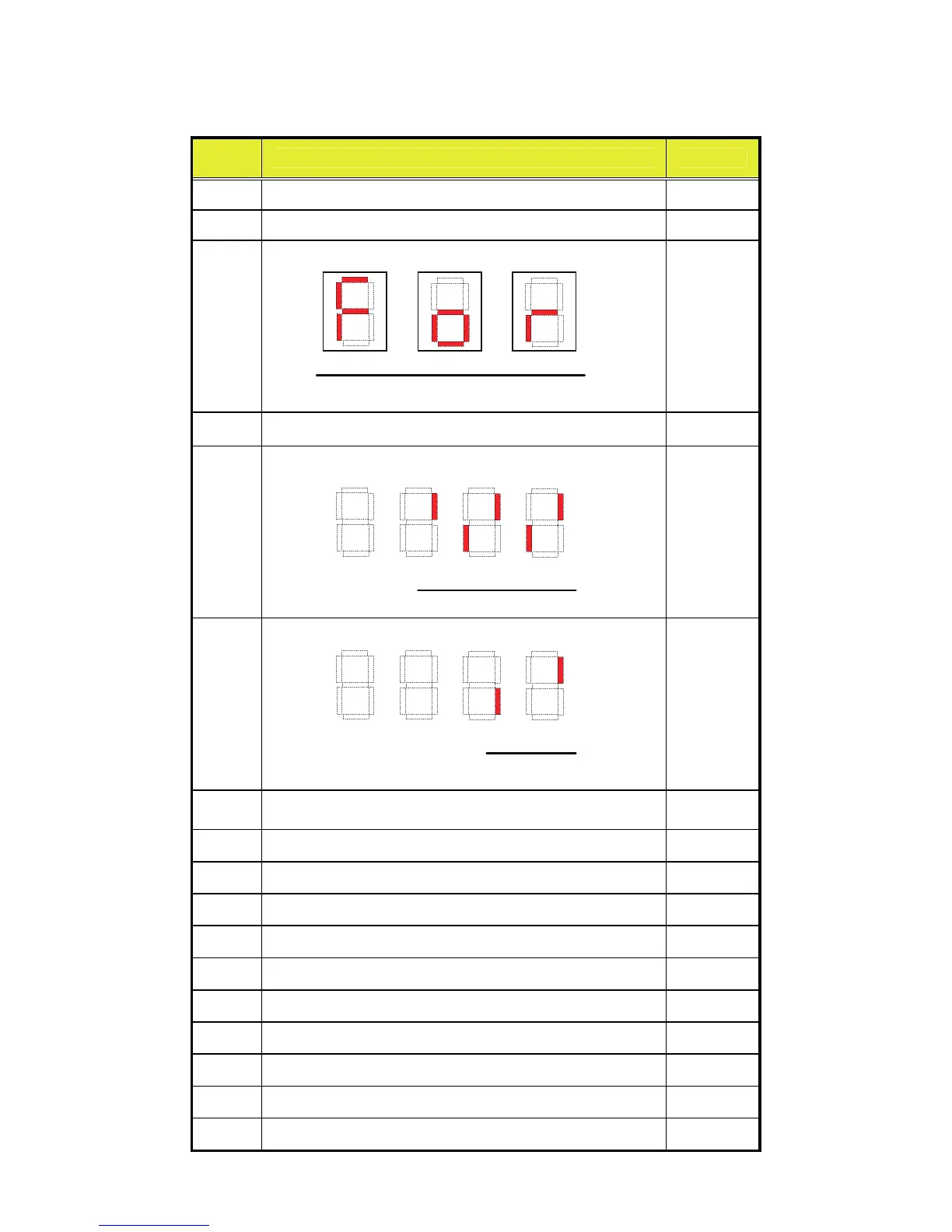

Parameter Tables
“D” group: Monitoring Functions
Func.
Code
Name / Description Units
D001
Output frequency monitor Hz
D002
Output current monitor A
D003
Rotation direction monitor
−
D004
Process variable (PV), PID feedback monitor %
D005
Intelligent input terminal status
−
D006
Intelligent output terminal status
−
D007
Scaled output frequency monitor
(output frequency ∗ b086 scale factor)
User-
defined
D013
Output voltage monitor V
D016
Cumulative operation RUN time monitor hr
D017
Cumulative power-ON time monitor hr
D018
Cooling fin temperature monitor °C
D080
Trip counter −
D081
Trip monitor 1 (most recent trip n) −
D082
Trip monitor 2 (trip n-1) −
D083
Trip monitor 3 (trip n-2) −
D102
DC bus voltage monitor V
D104
Electronic thermal monitor %
Forward Stop Reverse
Direction
1
2
3
45
Terminal Numbers
ON
OFF
11
AL
Terminal Numbers
ON
OFF

Hitachi X200 Series Specifications

General

Series	X200
Output Frequency	0-400 Hz
Cooling Method	Fan Cooled
Type	Inverter
Control Method	V/F control
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Communication	RS485, Modbus RTU
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Ambient Temperature	-10°C to +50°C
Humidity	5 to 95% RH (Non-condensing)
Enclosure Rating	IP20
Operating Temperature	-10°C to +40°C
Storage Temperature	-20°C to +60°C
