Hitachi X200 Series Quick Reference Guide

- 2 -

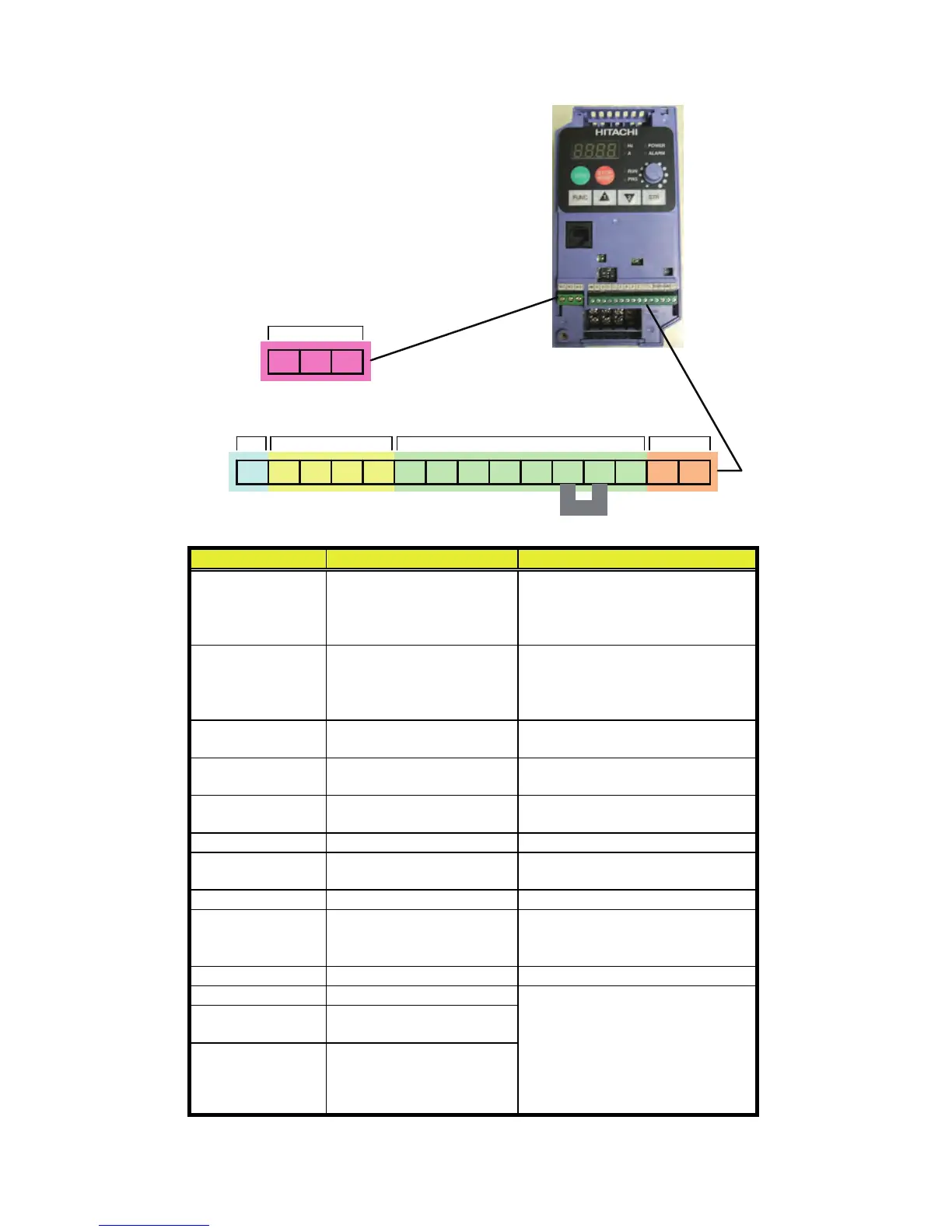

Control Circuit Terminals
Terminal Name Description Ratings and Notes
P24 +24V for logic inputs 24VDC supply, 30mA max.
(Notes: Do not use for network
power. Do not short to terminal
L)
1, 2, 3, 4, 5 Intelligent (programmable
discrete logic) inputs
27VDC max. (Use P24 or an
external supply reference to
terminal L), 4.7kΩ input
impedance.
11 Discrete logic output 50mA max. ON current, 27VDC
max. OFF voltage
L (right) GND for logic inputs Sum of input 1 to 5 currents
(Note: Do not ground)
CM2 Common for logic
outputs
50mA max for terminal 11
current
AM Analog voltage output 0 to 10VDC, 1mA max.
L (left) Common for analog
inputs
Sum of OI, O and H currents
(return)
OI Analog input, current 4 to 19.6mA range, 20mA nom.
O Analog input, voltage 0 to 9.6VDC range, 10VDC
nominal, 12VDC max., input
impedance 10kΩ
H +10V analog reference 10VDC nominal, 10mA max.
AL0 Relay common contact
AL1 Relay contact, normally
closed during RUN
AL2 Relay contact, normally
open during RUN
Contact rating
Max resistive load=250VAC,
2.5A; 30VDC 3A;
Max inductive load=250VAC,
0.2A; 30VDC 0.7A
Minimum load=5VDC 100mA,
100VAC 10mA
Note) Analog input O and OI cannot be used at the same time.
AM H O OI
L
5
4
3
2
1
L
PCS
P24
CM2
11
Jumper
A
nalog
output
A
nalog
inputs
Logic inputs
Logic
outputs
AL2 AL1 AL0
Alarm relay

Hitachi X200 Series Specifications

General

Series	X200
Output Frequency	0-400 Hz
Cooling Method	Fan Cooled
Type	Inverter
Control Method	V/F control
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Communication	RS485, Modbus RTU
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Ambient Temperature	-10°C to +50°C
Humidity	5 to 95% RH (Non-condensing)
Enclosure Rating	IP20
Operating Temperature	-10°C to +40°C
Storage Temperature	-20°C to +60°C
