Hitachi X200 Series Quick Reference Guide

- 3 -

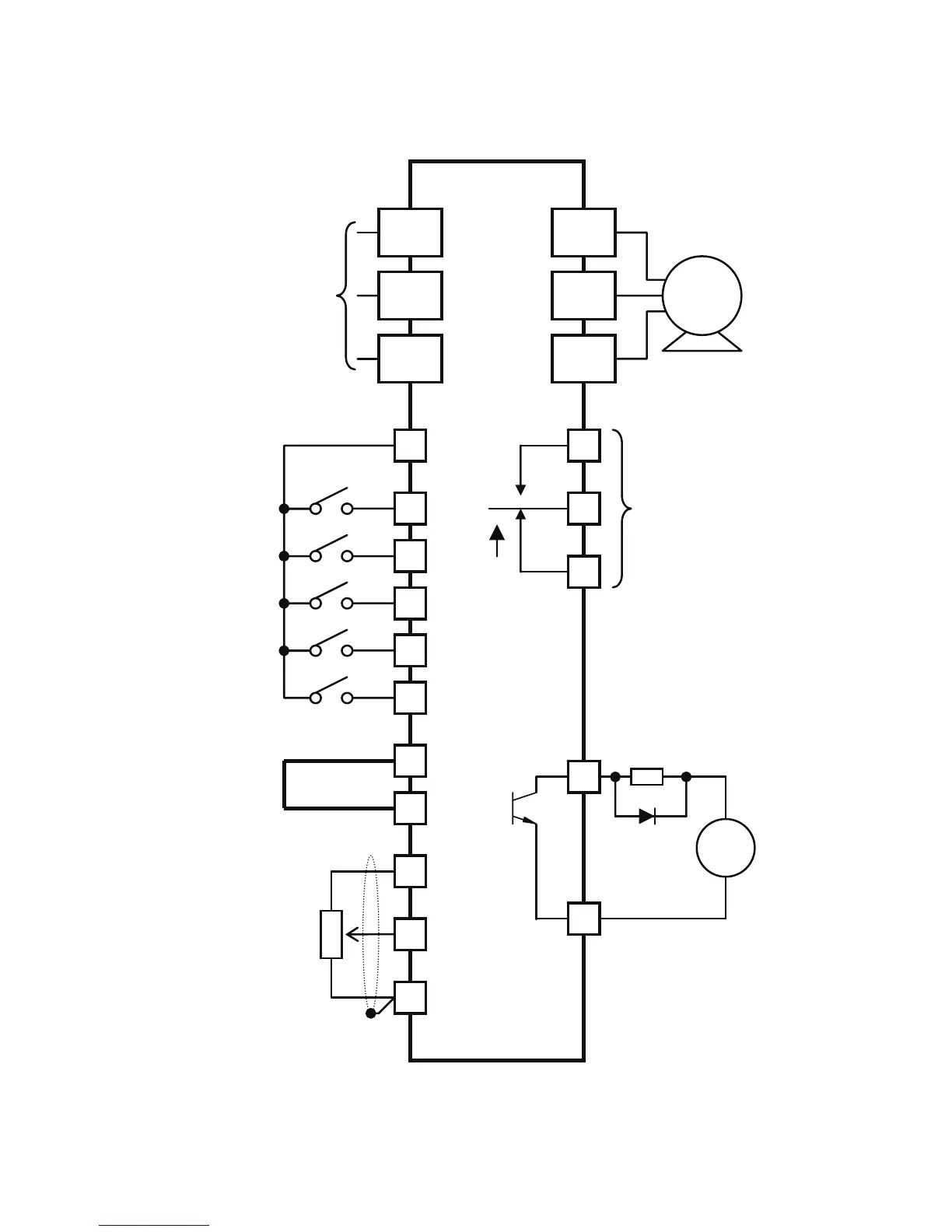

Basic Wiring Diagram
The following wiring diagram shows the power and motor connections
for basic operation. The optional signal input wiring supports external
Fwd and Rev Run command, and a speed potentiometer.
X200 series
R
(L1)
T
(N/L3)
U
(T1)
W
(T3)
V
(T2)
Motor
From 3-phase or
single-phase power input
source
(See specifications label
on inverter for details)
P24
1
2
3
5
L
Wiring for Source type models
H
O
L
S
(L2)
Inputs:
Analog reference
External speed
reference POT.
Analog common
AL1
AL0
AL2
Alarm contacts, 1C
11
CM2
Open collector output
Frequency
arrival signal
Load
+
-
Logic output
common
PCS
4
Forward
Reverse
Short bar
Reset

Hitachi X200 Series Specifications

General

Series	X200
Output Frequency	0-400 Hz
Cooling Method	Fan Cooled
Type	Inverter
Control Method	V/F control
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Communication	RS485, Modbus RTU
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Ambient Temperature	-10°C to +50°C
Humidity	5 to 95% RH (Non-condensing)
Enclosure Rating	IP20
Operating Temperature	-10°C to +40°C
Storage Temperature	-20°C to +60°C
