Hitachi X200 Series

Check Inverter Dimensions

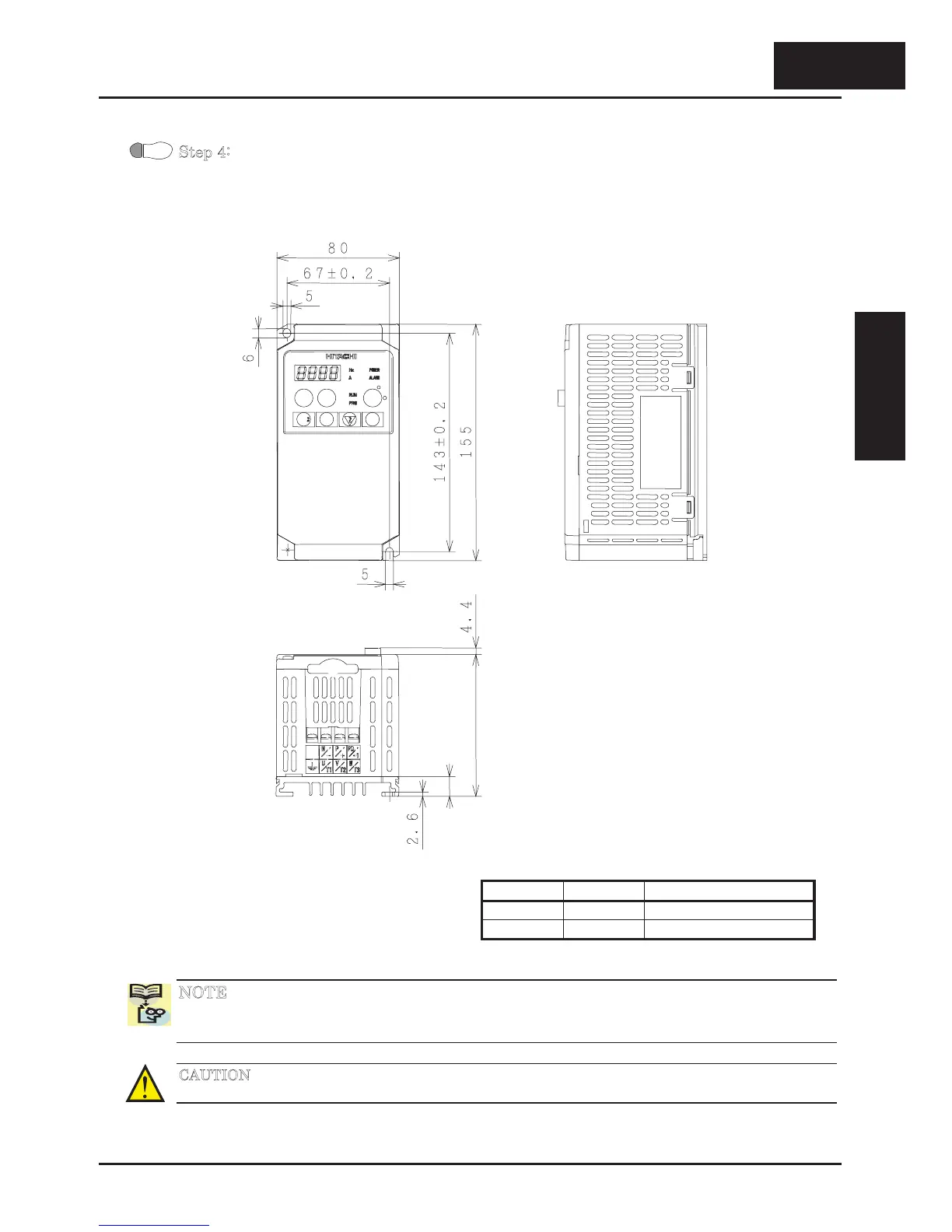

Step 4: Locate the applicable drawing on the following pages for your inverter.
Dimensions are given in millimeters (inches) format.
X200-002SFEF, -004SFEF, -002NFU, -004NFU
D [mm] D1 [mm] Applied model
93 13 -002NFU, -002SFEF
107 27 -004NFU, -004SFEF
NOTE: Some inverter housing require two mounting screws, while other requires four.
Be sure to use lock washers or other means to ensure screws do not loosen due to
vibration.
CAUTION: Power terminal assignment is different compared to old models such as L100, L200
series, etc,. Pay attention when wiring the power cable
4
Inverter Mounting
and installation
211
D
D1
2
−
11
Inverter Mountingand
installation
