Maintenance—Every 10 Hours or Daily
OUT1739,0000222 –19–05AUG02–1/3

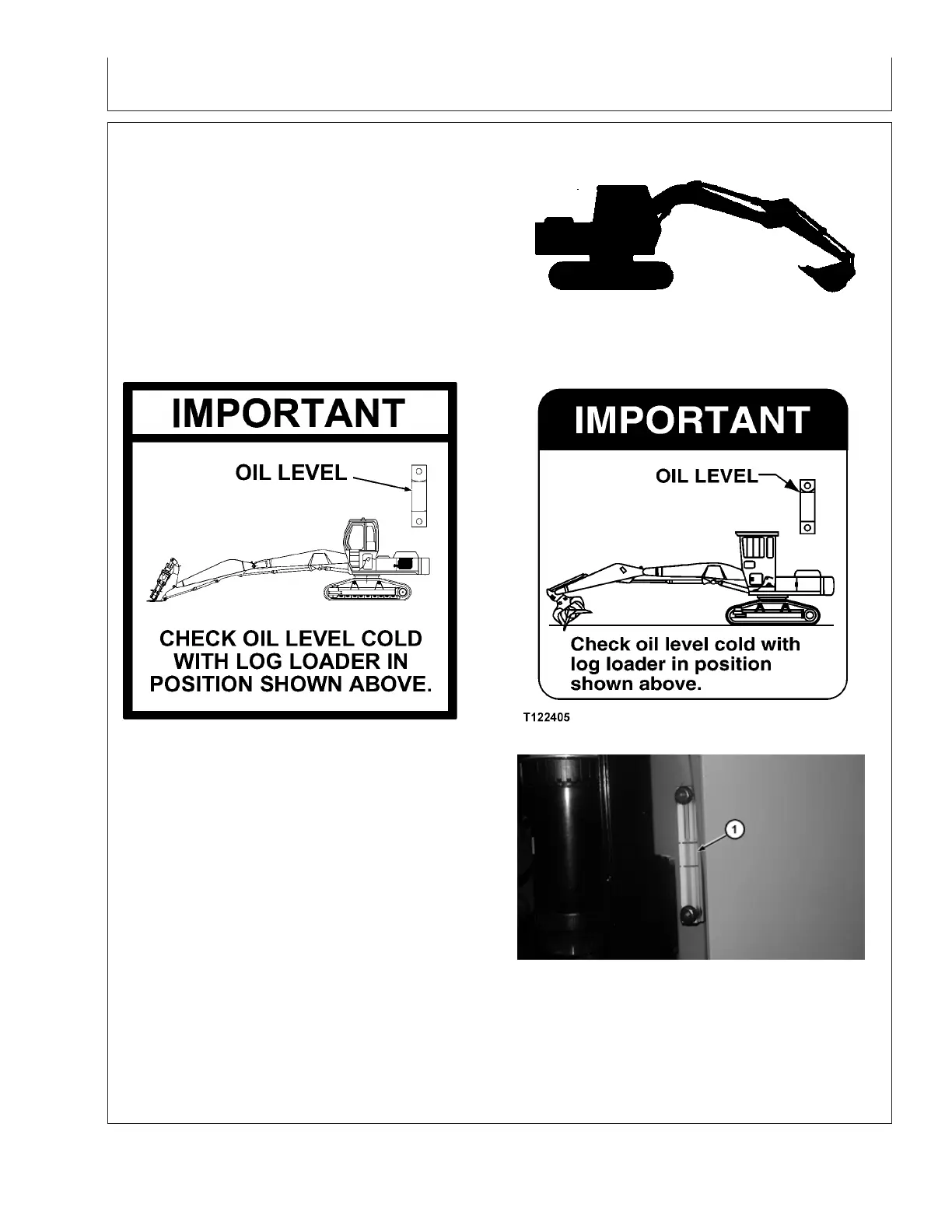

Check Hydraulic Oil Level
T6811AI –UN–18OCT88
Road Builder
T121784 –19–26JUL99
Live Heel Grapple
T122405 –19–26JUL99
Articulated Grapple
T147499B –UN–02NOV01
1—Hydraulic Oil Level Window
IMPORTANT: Prevent damage to hydraulic system
components. DO NOT run engine
without oil in hydraulic tank.
1. Park machine on a level surface and position machine
with arm cylinder fully retracted and bucket cylinder
fully extended.
2. Stop engine.
3. Check oil level gauge (1) on hydraulic tank. Oil must
be between marks on window.
If necessary, add oil.
3-4-3 081407
PN=119
