Miscellaneous—Specifications
TX14740,0001F28 –19–12NOV02–1/2

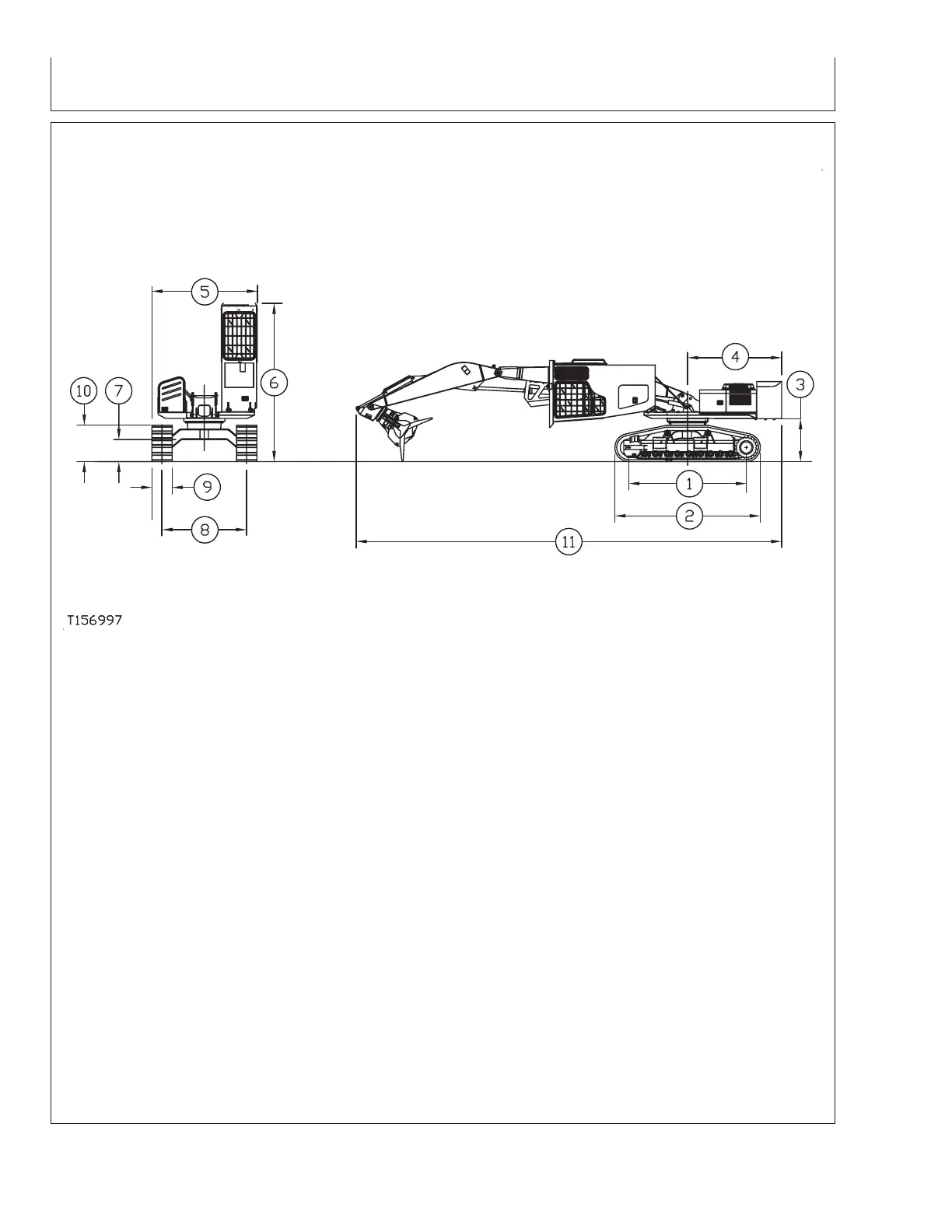

Zaxis 350 Forester Butt-N-Top Grapple—Machine Specifications
T156997 –UN–17JUL02
1—Sprocket Center To Idler 4—Rear End Swing Radius 8—Center Of Sprocket To 10—Track Height
Center 5—Overall Width Center Of Sprocket 11—Overall Length
2—Undercarriage Length 6—Cab Height 9—Track Shoe Width
3—Counterweight Clearance 7—Minimum Ground
Clearance
NOTE: Specifications and design subject to change
without notice. Wherever applicable,
specifications are in accordance with PCSA
and SAE standards. Except where otherwise
noted these specifications are based on a
machine equipped with 700 mm (28 in.) shoes,
2910 mm (9 ft 7 in.) undercarriage, full
counterweight fuel tank, 79 kg (175 lb)
operator and standard equipment.
Item Measurement Specification
1—Sprocket Center To Idler Center Distance 4050 mm (13 ft 3 in.)
2—Undercarriage Length 5095 mm (16 ft 9 in.)
3—Counterweight Clearance Distance 1474 mm (4 ft 10 in.)
4—Rear End Swing Radius Distance 3580 mm (11 ft 9 in.)
5—Overall Width (excluding back Distance 3703 mm (12 ft 2 in.)
mirrors)
4-6-37 081407
PN=236
Continued on next page
